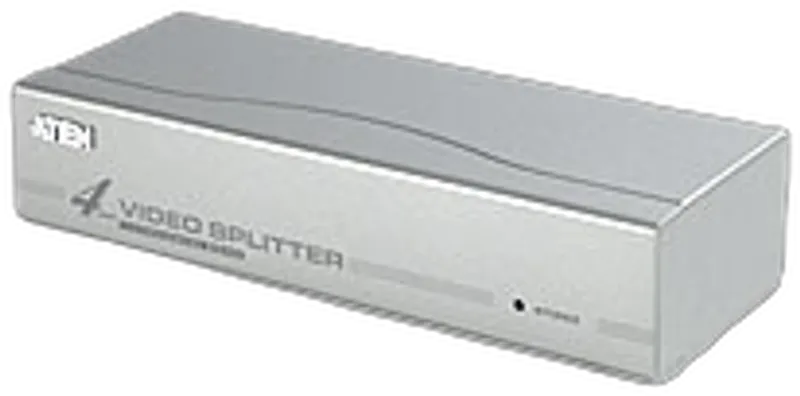

Aten Video Splitter, 1xInput,4xOutput

* Auftragsbezogene Bestellung *. Eingang: 1xHDB-15M Stecker. Ausgang: 4xHDB-15F Buchse250Mhz, 1920x1440 60Hz, max.65mtr.incl. Netzteil 220V~/ DC 9V, 2,43W. 4-Port Video Splitter. The VS94A Video splitter duplicates and boosts the video signal from one input to 4 outputs.It provides greater bandwidth and video resolution as well as extends the transmission distance up to 210 feet making it excellent for public broadcasting.In addition, units can be cascaded to accommodate as many monitors as the installation requires. Patent NO. : TW 152473 (Taiwan) ,US 6,119,148 (USA) ,CN ZL 98218061.6 (China) ,DE 29814640.1 (German). Features. One video input to 4 video outputs. Cascadable to 3 levels -provides up to 64 and thousands of video Signals. Supports up to 250 MHz bandwidth. Long distance transmission - up to 65m (210'). High video resolution - 1920 x 1440. DDC, DDC2, DDC2B Compatible (Port 1 only). All metal casing. Supports VGA, XGA, SVGA, UXGA and multisync monitors. OS Support: Windows 2000, Windows XP, Linux, Mac and Sun. Package Content. 1x 4-Port Video Splitter. 1x Power Adapter. 1x User Manual. Diagram. + View enlargement. Specification. Display Connections 4. Connectors Video In 1 x HDB-15 Male (Blue). Video Out 4 x HDB-15 Female (Blue). Power 1 x DC Jack (Black). LEDs Power 1. Video Bandwidth 250 MHz. Video 1920 x 1440 @ 60Hz. Signal Range Up to 65m (210'). Power Consumption DC9V, 2.43W (Max.). Environment Operating Temp. 0-50°C. Storage Temp. -20-60°C. Humidity 0-80% RH, Non-condensing. Physical Properties Housing Metal. Weight 0.45 kg. Dimensions (L x W x H) 20.00 x 7.50 x 4.50 cm.
