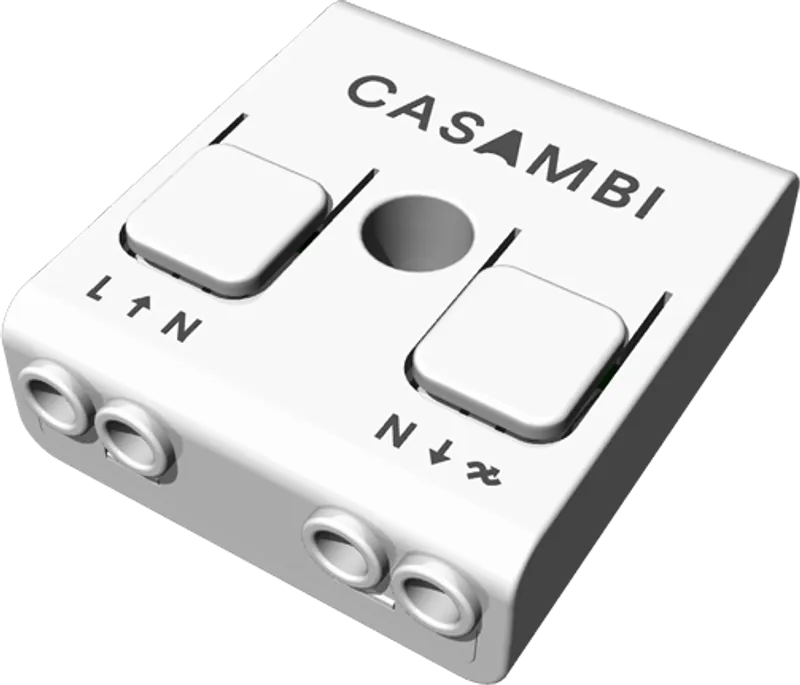

Casambi CBU-TED - triac dimmer

CBU-TED. smart-BCU 01-PC-SY - SYNERGY21 softbrand - Phasenabschnittsdimmer bis max. 150W -siehe Datenblatt- baugleich CASAMBI CBU-TED / RADIUM Bluetooth Control Unit BCU 150/TED (LMBA0027) -. Dimming method: Trailing-edge phase control. Input: 85-240 VAC 50-60 HZ, 0,65 A. Output: Incandescent and high voltage halogen bulbs:. 150 W @ 230 VAC, 70 W @ 110 VAC. High voltage AC LED modules:. 150 W @ 230 VAC. 70 W @ 110 VAC. Dimmable LED and CFL bulbs:. 50 W @ 230 VAC. 25 W @ 110 VAC. Dimmable electronic transformers:. 50 W @ 230 VAC. 25 W @ 110 VAC. Max. output current: 0,65 A. Min. load requirement: 1W. Max. current pulse: 4 A. Dimensions: 40,4 x 36,3 x 14,0 mm. Protection: IP20.
