Das Huawei OptiXstar EN8010Ts-20 ist ein XGS-PON-Terminal für FTTH-Anwendungen und stellt an der Nutzerseite einen 10GE-Port für breitbandige Glasfaseranschlüsse bereit.

\n\n

Vorteile auf einen Blick

XGS-PON auf der Netzwerkseite (NNI) für symmetrische 10-Gbit/s-Glasfaserübertragung
1 x 10GE auf der Nutzerseite (UNI) für hochbandbreitige Endgeräte
SC/APC-Optikstecker für zuverlässige Faserkopplung
Kompakte Bauform mit 32 × 105 × 110 mm ohne Standfüße
Statusanzeigen für Power, PON, LOS und 10G LAN

\n\n

Anschluss & Eigenschaften

Das Terminal verbindet das XGS-PON-Zugangsnetz über einen SC/APC-Optikstecker mit einem 10GE-Port auf der Nutzerseite. Vier LED-Anzeigen – Power, PON, LOS und 10G LAN – geben Auskunft über den Betriebs- und Verbindungsstatus. Mit einer statischen Leistungsaufnahme von 5 W und einem Maximum von 6 W arbeitet das Gerät energieeffizient im Einsatztemperaturbereich von 0 °C bis 40 °C.

\n\n

Technische Spezifikationen

NNI: XGS-PON
UNI: 1 x 10GE
Optischer Stecker: SC/APC
Systemstromversorgung: 12 V DC, 1 A
Netzadapter-Eingang: 100–240 V AC, 50/60 Hz
Abmessungen (H × B × T, ohne Standfüße): 32 mm × 105 mm × 110 mm
Gewicht: ca. 163 g
Statische Leistungsaufnahme: 5 W
Maximale Leistungsaufnahme: 6 W
Betriebstemperatur: 0 °C bis 40 °C
Betriebsfeuchte: 5 % RH bis 95 % RH (nicht kondensierend)
Speicher: 128 MB Flash, 32 MB RAM
Anzeigen: Power/PON/LOS/10G LAN

",{"_196":23,"_197":245,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},0,6426,5400,"8125848","Cudy AX3000 Wi-Fi 6 VoIP GPON Router, GP3000V","7951741","cudy-gp3000-series-gpon-router-gp3000v",{"_110":266,"_223":267},[146],{"_202":265,"_204":265},{"_202":264,"_204":264},"gp3000v","AX3000 Wi-Fi 6 Dual Band Gigabit xPON Router, Realtek chipset, GPON/EPON, 2402Mbps at 5GHz + 576Mbps at 2.4GHz, 802.11ax/ac/a/b/g/n, 1 PON Port, 4 Gigabit RJ45 port, 1 RJ11 Port, Power ON/OFF Button,WPS Button,WiFi Button, Reset button,TR069/TR098/TR111/TR181,easyMesh, OMCI",{"_196":23,"_197":260,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},6833,5742,"1891424","/media/1/products/images/consolidated/ascend_cudy_gp3000v_cudy-ax3000-wi-fi-6-voip-gpon-router-gp3000v.jpg","7718823","Huawei EchoLife EG8145V5,GPON Terminal,SC/APC,European Standard Adapter,English Documents,For EU","7544716","huawei-echolife-eg8145v5-50085241",{"_110":282,"_223":283},[141],{"_202":281,"_204":281},{"_202":280,"_204":280},"50085241","

Das Huawei EchoLife EG8145V5 ist ein GPON-Terminal für FTTH-Anwendungen, das Glasfaseranschluss, vier Gigabit-Ethernet-Ports, Telefonie und dual-band WLAN in einem kompakten Gerät vereint. Es richtet sich an Carrier und Provider im EU-Raum, die Endkunden mit Sprach-, Daten- und WLAN-Diensten über eine passive optische Netzwerkinfrastruktur versorgen.

Vorteile auf einen Blick

Glasfaser-Anschluss: GPON-NNI mit SC/APC-Stecker und Wellenlängen 1310 nm Upstream / 1490 nm Downstream
Vier GE-Ports: Auto-adaptive 10/100/1000 Mbit/s Ethernet-Schnittstellen für kabelgebundene Endgeräte
Dual-Band WLAN: 2,4 GHz und 5 GHz gleichzeitig mit 2×2 MIMO und bis zu 867 Mbit/s im 5-GHz-Band
Sprachdienste: Ein POTS-Port mit SIP-Unterstützung, Notruf und mehreren Codec-Optionen
Kompakte Bauform: Nur 30 × 155 × 105 mm bei rund 220 g Gewicht

Konnektivität und Schnittstellen

Das Terminal stellt an der Netzwerkseite eine GPON-Verbindung mit Class-B+-Optik bereit, deren Empfängerempfindlichkeit bei -27 dBm liegt und die bis -8 dBm überlastfest ist. Die GEM-Port-zu-TCONT-Zuordnung ist flexibel konfigurierbar, und das Gerät unterstützt sowohl SR-DBA als auch NSR-DBA sowie Type-B-Dual-Homing. Bidirektionales FEC und die SN- oder Passwort-Authentifizierung gemäß G.984.3 gehören zum Funktionsumfang.

Auf der Nutzerseite bietet das Gerät einen POTS-Port mit einer maximalen Ringer-Equivalence-Number von 4 und unterstützt die Codecs G.711A/μ, G.729a/b und G.722 sowie Fax-Modi nach T.30, T.38 und G.711. Die vier Ethernet-Ports beherrschen VLAN-Tagging, QinQ, transparente Übertragung und MAC-Adress-Limitierung. Der USB-Port ergänzt die Anschlüsse für lokale Peripherie.

WLAN und Stromversorgung

Das integrierte WLAN unterstützt IEEE 802.11 b/g/n im 2,4-GHz-Band und IEEE 802.11 a/n/ac im 5-GHz-Band, jeweils mit 2×2 MIMO und 5 dBi Antennengewinn. Die Luftschnittstellenrate beträgt 300 Mbit/s auf 2,4 GHz und 867 Mbit/s auf 5 GHz; WMM, Multiple SSIDs und WPS sind verfügbar. Der mitgelieferte europäische Netzadapter akzeptiert 100–240 V AC bei 50/60 Hz und versorgt das System mit 12 V DC, 1,5 A, bei einer statischen Leistungsaufnahme von 5 W und maximal 12 W.

Technische Spezifikationen

Modell: EchoLife EG8145V5
Abmessungen (H × B × T): 30 mm × 155 mm × 105 mm
Gewicht: ca. 220 g
NNI: GPON
Optischer Stecker: SC/APC
UNI: 1POTS + 4GE + 2,4 GHz/5 GHz WLAN + 1USB
Betriebstemperatur: 0 °C bis 40 °C
Betriebsfeuchte: 5 % RH bis 95 % RH (nicht kondensierend)
Netzadapter-Eingang: 100–240 V AC, 50/60 Hz
Systemstromversorgung: 12 V DC, 1,5 A
Statische Leistungsaufnahme: 5 W
Maximale Leistungsaufnahme: 12 W
GPON-Klasse: Class B+
Empfängerempfindlichkeit: -27 dBm
Überlast-Grenzleistung: -8 dBm
Wellenlängen: US 1310 nm, DS 1490 nm
WLAN 2,4 GHz: IEEE 802.11 b/g/n, 300 Mbit/s, 2×2 MIMO
WLAN 5 GHz: IEEE 802.11 a/n/ac, 867 Mbit/s, 2×2 MIMO
Antennengewinn: 5 dBi
POTS-Codecs: G.711A/μ, G.729a/b, G.722
Ethernet-Ports: 4 × GE, auto-adaptiv 10/100/1000 Mbit/s
Indikatoren: Power/PON/LOS/LAN1–LAN4/TEL/USB/WLAN/WPS

",{"_196":23,"_197":276,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},8319,6991,"2279197","/media/1/products/assets/image/3b/3b716ceb07b0f27e5a2d6adb7218ea518732775c753637074a85aa494e028862_nobg.png","7718881","HUAWEI OptiXstar EN8012Ts-20 XGS-PON Terminal SC/APC Europe Plug Adapter White shell For EU","7544774","huawei-optixstar-en80-series-50087349",[141],{"_202":295,"_204":295},{"_202":294,"_204":294},"50087349",{"_196":23,"_197":291,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},8140,6840,"7718839","Huawei OptiXstar EG8145X6-10,Smart HGU,GPON Terminal,SC/APC,European Standard Adapter,White shell,English,For EU","7544732","huawei-optixstar-eg8145x6-10-50086097",[141],{"_202":308,"_204":308},{"_202":307,"_204":307},"50086097","

Das Huawei OptiXstar EG8145X6-10 ist ein Smart-HGU-GPON-Terminal für FTTH-Anwendungen im EU-Markt und bietet einen GPON-Uplink über SC/APC sowie vier GE-Ethernet-Ports, einen POTS-Anschluss, Dualband-WLAN und USB an einem kompakten Indoor-Gerät.

\n\n

Vorteile auf einen Blick

GPON-Uplink: Anbindung über SC/APC-Stecker
Vier GE-Ports: Ethernet-Konnektivität für Endgeräte
Dualband-WLAN: 2,4-GHz- und 5-GHz-Funk gleichzeitig
Kompakte Bauform: 35 mm × 195 mm × 125 mm bei ca. 372 g
Statusanzeigen: Power, PON, LOS, LAN, TEL, USB, WLAN und WPS

\n\n

Konnektivität und Einsatz

Das Terminal verbindet das GPON-Zugangsnetz über seinen NNI mit lokalen Endgeräten an der UNI-Schnittstelle, die vier Gigabit-Ethernet-Ports, einen POTS-Anschluss, Dualband-WLAN im 2,4-GHz- und 5-GHz-Band sowie einen USB-Port umfasst. Mit einem Netzteil für 100–240 V AC, 50/60 Hz und einer Systemstromversorgung von 11–14 V DC bei 1,5 A lässt es sich in europäischen Haushalten direkt betreiben. Die statische Leistungsaufnahme beträgt 6 W, im Maximum 18 W, und der Betrieb ist im Temperaturbereich von 0 °C bis 40 °C bei 5 % bis 95 % relativer Luftfeuchte (nicht kondensierend) spezifiziert.

\n\n

Technische Spezifikationen

Abmessungen (H × B × T): 35 mm × 195 mm × 125 mm (ohne externe Antenne und Pads)
Gewicht: ca. 372 g
NNI: GPON
UNI: 4 × GE + 1 × POTS + 2,4G/5G WLAN + 1 × USB
Speicher: 128 M Flash, 256 M RAM
Netzteil-Eingang: 100–240 V AC, 50/60 Hz
Systemstromversorgung: 11–14 V DC, 1,5 A
Statische Leistungsaufnahme: 6 W
Maximale Leistungsaufnahme: 18 W
Betriebstemperatur: 0 °C bis 40 °C
Betriebsfeuchte: 5 % RH bis 95 % RH (nicht kondensierend)
Indikatoren: Power/PON/LOS/LAN/TEL/USB/WLAN/WPS

",{"_196":23,"_197":303,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},5569,4680,"8355445","TP-Link DeltaStream TL-DS-P7001-08 GPON-Terminal 2,5Gbit E.","8181338","tp-link-deltastream-tl-ds-p7001-08-gpon-ds-p7001-08-un",[152],{"_202":320,"_204":320},{"_202":319,"_204":319},"ds-p7001-08(un)",{"_196":23,"_197":316,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},207879,174688,"7654725","Huawei GPON Terminal EchoLife EG8145V5 SC/APC,European Standard Adapter","7480618","huawei-echolife-eg8145v5-50088953",[141],{"_202":332,"_204":332},{"_202":331,"_204":331},"50088953",{"_196":23,"_197":328,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},4810,4042,[357,358,359,360,361,362,363,364,365,366,367,368,369,370,371,372,373,374],[342,343,344,345,346],[336,337,338],{"_108":98,"_10":341},{"_108":98,"_10":340},{"_108":98,"_10":339},{"_110":111,"_46":47},{"_110":113,"_46":114},{"_110":116,"_46":117},{"_108":150,"_123":355},{"_108":21,"_123":353},{"_108":139,"_123":351},{"_108":21,"_123":349},{"_108":21,"_123":347},{"_110":125,"_126":127,"_46":128,"_129":348},{"_110":131,"_126":132,"_46":133},{"_110":135,"_126":136,"_46":137,"_129":350},{"_110":131,"_126":132,"_46":133},{"_110":141,"_126":142,"_46":143,"_129":352},{"_110":131,"_126":132,"_46":133},{"_110":146,"_126":147,"_46":148,"_129":354},{"_110":131,"_126":132,"_46":133},{"_110":152,"_126":153,"_46":154,"_129":356},{"_110":131,"_126":132,"_46":133},{"_166":321,"_168":322,"_170":323,"_44":324,"_173":-5,"_16":550,"_175":176,"_177":551,"_179":552,"_181":328,"_48":322,"_184":322,"_185":23,"_186":553,"_188":554,"_385":555},{"_166":309,"_168":310,"_170":311,"_44":312,"_173":-5,"_16":545,"_175":176,"_177":546,"_179":547,"_181":316,"_48":201,"_184":310,"_185":23,"_186":548,"_188":549,"_385":-5},{"_166":296,"_168":297,"_170":298,"_44":299,"_173":-5,"_16":539,"_175":176,"_177":540,"_179":541,"_181":303,"_48":304,"_184":297,"_185":23,"_186":542,"_188":543,"_385":544},{"_166":284,"_168":285,"_170":286,"_44":287,"_173":-5,"_16":533,"_175":176,"_177":534,"_179":535,"_181":291,"_48":285,"_184":285,"_185":23,"_186":536,"_188":537,"_385":538},{"_166":268,"_168":269,"_170":270,"_44":271,"_173":526,"_16":527,"_175":176,"_177":528,"_179":529,"_181":276,"_48":277,"_184":269,"_185":23,"_186":530,"_188":531,"_385":532},{"_166":252,"_168":253,"_170":254,"_44":255,"_173":520,"_16":521,"_175":176,"_177":522,"_179":523,"_181":260,"_48":261,"_184":253,"_185":23,"_186":524,"_188":525,"_385":-5},{"_166":238,"_168":239,"_170":240,"_44":241,"_173":-5,"_16":514,"_175":176,"_177":515,"_179":516,"_181":245,"_48":246,"_184":239,"_185":23,"_186":517,"_188":518,"_385":519},{"_166":225,"_168":226,"_170":227,"_44":228,"_173":-5,"_16":508,"_175":176,"_177":509,"_179":510,"_181":232,"_48":226,"_184":226,"_185":76,"_186":511,"_188":512,"_385":513},{"_166":206,"_168":207,"_170":208,"_44":209,"_173":502,"_16":503,"_175":176,"_177":504,"_179":505,"_181":214,"_48":215,"_184":207,"_185":76,"_186":506,"_188":507,"_385":-5},{"_166":167,"_168":169,"_170":171,"_44":172,"_173":-5,"_16":496,"_175":176,"_177":497,"_179":498,"_181":182,"_48":183,"_184":169,"_185":76,"_186":499,"_188":500,"_385":501},{"_166":480,"_168":481,"_170":482,"_44":483,"_173":484,"_16":485,"_175":176,"_177":486,"_179":487,"_181":488,"_48":481,"_184":481,"_185":23,"_186":489,"_188":490,"_385":-5},{"_166":466,"_168":467,"_170":468,"_44":469,"_173":-5,"_16":470,"_175":176,"_177":471,"_179":472,"_181":473,"_48":474,"_184":467,"_185":23,"_186":475,"_188":476,"_385":477},{"_166":452,"_168":453,"_170":454,"_44":455,"_173":-5,"_16":456,"_175":176,"_177":457,"_179":458,"_181":459,"_48":460,"_184":453,"_185":23,"_186":461,"_188":462,"_385":463},{"_166":439,"_168":440,"_170":441,"_44":442,"_173":-5,"_16":443,"_175":176,"_177":444,"_179":445,"_181":446,"_48":440,"_184":440,"_185":23,"_186":447,"_188":448,"_385":449},{"_166":423,"_168":424,"_170":425,"_44":426,"_173":427,"_16":428,"_175":176,"_177":429,"_179":430,"_181":431,"_48":432,"_184":424,"_185":23,"_186":433,"_188":434,"_385":-5},{"_166":408,"_168":409,"_170":410,"_44":411,"_173":-5,"_16":412,"_175":176,"_177":413,"_179":414,"_181":415,"_48":416,"_184":409,"_185":76,"_186":417,"_188":418,"_385":419},{"_166":395,"_168":396,"_170":397,"_44":398,"_173":-5,"_16":399,"_175":176,"_177":400,"_179":401,"_181":402,"_48":396,"_184":396,"_185":76,"_186":403,"_188":404,"_385":405},{"_166":375,"_168":376,"_170":377,"_44":378,"_173":-5,"_16":379,"_175":176,"_177":380,"_179":381,"_181":382,"_48":376,"_184":376,"_185":76,"_186":383,"_188":384,"_385":386},"8428507","HG8240H ONT, EchoLife, 1x GPON, 4x RJ45 1000Mb/s, 2x RJ11","8254397","huawei-hg8240h-ont-echolife-1x-gpon-huawei-hg8240h",[141],{"_202":394,"_204":394},{"_202":393,"_204":393},"huawei hg8240h",{"_196":23,"_197":382,"_198":199,"_200":201},{"_190":392,"_192":193,"_194":-5,"_195":-5},"brandLogoFallback",{"_387":142,"_388":143,"_389":390,"_391":-5},"brandCode","brandName","logoLightUrl","/media/1/brand-logos/234144/light.png","logoDarkUrl",100,2322,1951,"8428508","HG8247H5 ONT, 2,4GHz, 1x GPON, 4x RJ45 1000Mb/s, 1x RJ11, 1x USB, 1x CATV","8254398","huawei-hg8247h5-ont-2-1x-gpon-huawei-hg8247h5",[141],{"_202":407,"_204":407},{"_202":406,"_204":406},"huawei hg8247h5",{"_196":23,"_197":402,"_198":199,"_200":201},{"_190":392,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},3322,2792,"7654709","HUAWEI OptiXstar EG8145B7N-50 GPON Smart HGU mit WiFi 7 und SC/APC-Anschluss","7480602","huawei-optixstar-eg8145b7n-50-50088180",[141],{"_202":422,"_204":422},{"_202":421,"_204":421},"50088180","

Der HUAWEI OptiXstar EG8145B7N-50 ist ein GPON-Routing Optical Network Terminal (ONT) mit WiFi 7, das für ultraschnellen Breitbandzugang entwickelt wurde. Es vereint GPON- und WiFi-7-Technologie, um hohe Leistung und umfassende Abdeckung in Endnutzerumgebungen zu bieten.

\n\n

Wesentliche Vorteile

Volle Konnektivität: ein 2,5-GE-Port, drei GE-Ports, ein POTS-Port und ein USB-Port in einem einzigen Gerät
Dualband-WiFi 7: unterstützt 2,4 GHz und 5 GHz mit MLO, MU-MIMO und 4096-QAM für verbesserte drahtlose Effizienz
GPON Class B+: Empfängerempfindlichkeit von -27 dBm mit SC/APC-Lichtwellenleiteranschluss und Upstream-/Downstream-Wellenlängen von 1310 nm / 1490 nm
Sprachdienste: POTS-Port mit G.711A/μ-, G.729a/b- und G.722-Codecs, T.30/T.38-Fax und SIP-basierten Notrufen
Netzwerkspeicher: USB-2.0-Port mit FTP, SAMBA und DLNA für Datei- und Druckerfreigabe

\n\n

Leistung und Konnektivität

Der HUAWEI OptiXstar EG8145B7N-50 bietet einen 2,5-GE-Port mit Autonegotiation von 10 Mbit/s bis 2500 Mbit/s und drei GE-Ports mit Autonegotiation von 10 Mbit/s bis 1000 Mbit/s. Die Ethernet-Ports unterstützen portbasiertes VLAN-Tagging und -Untagging, transparente VLAN-Übertragung, QinQ-VLAN sowie eine Begrenzung der Anzahl gelernter MAC-Adressen. Die GPON-Schnittstelle entspricht den Standards G.984.3 und G.984.5 und umfasst bidirektionales FEC, SR-DBA und NSR-DBA für ein effizientes Management der optischen Bandbreite.

\n\n

WiFi-7-Drahtlosfunktionen

Das Gerät verfügt über WiFi 7 gemäß IEEE 802.11 b/g/n/ax/be im 2,4-GHz-Band und IEEE 802.11 a/n/ac/ax/be im 5-GHz-Band mit 2×2-MIMO-Konfiguration auf beiden Bändern und Antennen mit 5 dBi Verstärkung. Die Luftschnittstellenrate erreicht 688 Mbit/s im 2,4-GHz-Band und 2882 Mbit/s im 5-GHz-Band bei einer Frequenzbandbreite von 160 MHz. Es integriert fortschrittliche Technologien wie OFDMA, MU-MIMO, Beamforming, BSS Coloring, Band Steering und WPA3 für drahtlose Sicherheit. Multi-Link Operation (MLO) und Multi-RU optimieren die Spektrumsnutzung, während die Unterstützung mehrerer SSIDs und WPS die Netzwerkverwaltung vereinfacht.

\n\n

Technische Daten

Abmessungen (H x B x T): 40 mm x 150 mm x 108 mm (ohne externe Antenne oder Standfüße)
Gewicht: ca. 282 g
NNI: GPON
Optischer Anschluss: SC/APC
UNI: 1×2,5GE + 3×GE + 1×POTS + 1×USB* + 2,4-GHz/5-GHz-Wi-Fi 7
Statischer Stromverbrauch: 5 W
Maximaler Stromverbrauch: 14 W
Betriebstemperatur: 0°C bis 40°C
Betriebsluftfeuchtigkeit: 5 % rF bis 95 % rF (nicht kondensierend)
Netzteileingang: 100–240 V AC, 50/60 Hz
Systemstromversorgung: 12 V DC, 1,5 A
GPON-Port: Class B+, Empfängerempfindlichkeit -27 dBm, optische Überlast -8 dBm, Upstream-/Downstream-Wellenlängen 1310 nm / 1490 nm, G.984.5-Wellenlängen-Sperrfilter (WBF), flexible Zuordnung zwischen GEM-Port und TCONT, SN- oder G.984.3-Passwortauthentifizierung, bidirektionales FEC, SR-DBA und NSR-DBA
POTS-Port: max. REN 4, Codecs G.711A/μ/G.729a/b/G.722, Fax T.30/T.38/G.711, DTMF, SIP-basierte Notrufe
USB-Port: USB 2.0, Netzwerkspeicher über FTP, Datei-/Druckerfreigabe über SAMBA, DLNA-Funktionalität
Ethernet-Port: 1×2,5GE + 3×GE, portbasiertes VLAN, 1:1/N:1/transparentes VLAN, QinQ-VLAN, Begrenzung der gelernten MAC-Adressen, GE-Autonegotiation 10/100/1000 Mbit/s, 2,5GE-Autonegotiation 10/100/1000/2500 Mbit/s
WLAN: IEEE 802.11 b/g/n/ax/be (2,4 GHz), IEEE 802.11 a/n/ac/ax/be (5 GHz), 2×2 MIMO, 5-dBi-Antennenverstärkung, Luftschnittstellenrate 688 Mbit/s (2,4 GHz) / 2882 Mbit/s (5 GHz), 4096 QAM, 160 MHz, OFDMA, MU-MIMO, DCM, BSS Coloring, Beamforming, Band Steering, WPA3, MLO, Multi-RU, WMM/mehrere SSIDs/WPS

",{"_196":23,"_197":415,"_198":199,"_200":201},{"_190":420,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},60,6569,5520,"7725542","ZTE CPE G1611 GPON AX3000, Wi-Fi 6 802.11ax 3000Mbps","7551435","zte-server-storage-cpe-g1611-gpon-ax3000-wi-180000484317",{"_110":437,"_223":438},[125],{"_202":436,"_204":436},{"_202":435,"_204":435},"180000484317","4 * GE RJ 45 ports 1 * FXS RJ 11 port 1 * USB2.0 port 2 x 2 802.11ax Wi Fi @ 2.4GHz 2 x 2 802.11ax Wi Fi @ 5GHz (160MHz)",{"_196":23,"_197":431,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},11311,9505,"2158067","/media/1/products/images/consolidated/ascend_zte_180000484317_zte-cpe-g1611-gpon-ax3000-wi-fi-6-802-11ax-3000mbps_nobg.png","7718900","HUAWEI OptiXstar EN8145B7Ns HGU XGS-PON Terminal SC APC European Standard Adapter English Documents","7544793","huawei-optixstar-en8145b7ns-hgu-xgs-pon-50087535",[141],{"_202":451,"_204":451},{"_202":450,"_204":450},"50087535",{"_196":23,"_197":446,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},12709,10680,"7718842","HUAWEI OptiXstar EG8147X6-10 Smart HGU GPON Terminal SC/APC European Standard Adapter White shell English for EU","7544735","huawei-optixstar-gpon-terminal-50086322",[141],{"_202":465,"_204":465},{"_202":464,"_204":464},"50086322","

Das OptiXstar EG8147X6-10 ist ein Smart-HGU-GPON-Terminal für FTTH-Anschlüsse, das eine GPON-Uplink-Verbindung mit vier Gigabit-Ethernet-Ports, POTS, CATV, WLAN und USB 2.0 in einem kompakten Gerät vereint.

\n\n

Vorteile auf einen Blick

GPON-Uplink mit SC/APC-Optikstecker für die Faseranschlussseite
Vier GE-LAN-Ports sowie POTS-, CATV- und USB-2.0-Schnittstellen an der Nutzerseite
Integriertes WLAN für drahtlose Endgeräte am Kundenstandort
128 MB Flash und 256 MB RAM für die Systemlaufzeit
Europäischer Netzadapter für 100–240 V AC, 50/60 Hz

\n\n

Schnittstellen und Einsatzbereich

Das OptiXstar EG8147X6-10 verbindet das GPON-Netzwerk über einen SC/APC-Optikstecker mit den Endgeräten am Kundenstandort. An der Nutzerseite stellt das Terminal vier Gigabit-Ethernet-Ports, einen POTS-Anschluss, einen CATV-Ausgang, einen USB-2.0-Port sowie WLAN zur Verfügung. Die Betriebsanzeige umfasst LEDs für Power, PON, LOS, LAN, TEL, USB, WLAN, WPS und CATV.

\n\n

Technische Spezifikationen

Modell: Huawei OptiXstar EG8147X6-10
NNI: GPON
UNI: 4x GE + 1x POTS + 1x CATV + Wi-Fi + 1x USB 2.0
Optischer Stecker: SC/APC
Speicher: 128 MB Flash, 256 MB RAM
Netzadapter-Eingang: 100–240 V AC, 50/60 Hz
Systemstromversorgung: 12 V DC, 1,5 A
Statischer Stromverbrauch: 6,8 W
Maximaler Stromverbrauch: 18 W
Abmessungen (H x B x T, ohne Antenne und Pads): 35 mm x 195 mm x 120 mm
Betriebstemperatur: 0 °C bis 40 °C
Betriebsfeuchte: 5 % RH bis 95 % RH (nicht kondensierend)
Gewicht: ca. 305 g
Anzeigen: Power/PON/LOS/LAN/TEL/USB/WLAN/WPS/CATV

",{"_196":23,"_197":459,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},7283,6120,"7718832","HUAWEI OptiXstar EN8245X6s-8N XGS-PON/XG-PON Terminal SC/APC EU Standard Adapter White shell English Stock","7544725","huawei-optixstar-en8245x6s-8n-xgs-pon-50085763",[141],{"_202":479,"_204":479},{"_202":478,"_204":478},"50085763","Das Huawei OptiXstar EN8245X6s-8N ist ein XGS-PON-Terminal mit Wi-Fi 6, das Ultra-Breitbandzugang mit hoher Weiterleitungsleistung für Sprach- und Datendienste bereitstellt. Es bietet einen 2.5GE-Port, drei GE-Ports, zwei POTS-Ports, einen USB-Port sowie gleichzeitiges 2,4-GHz- und 5-GHz-Wi-Fi-6.",{"_196":23,"_197":473,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},14566,12240,"8035135","TP-Link XZ000-G7 1-port Gigabit XPON SFU","7861028","tp-link-xz000-g7-xpon-terminal-xz000-g7",{"_110":494,"_223":495},[152],{"_202":493,"_204":493},{"_202":492,"_204":492},"xz000-g7",{"_196":23,"_197":488,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":491,"_195":-5},1947,1954,1642,"1878444","/media/1/products/images/consolidated/ascend_tp-link_xz000-g7_tp-link-xz000-g7-1-port-gigabit-xpon-sfu_1.jpg",[141],{"_202":205,"_204":205},{"_202":203,"_204":203},{"_196":23,"_197":182,"_198":199,"_200":201},{"_190":191,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},{"_110":222,"_223":224},[135],{"_202":221,"_204":221},{"_202":220,"_204":220},{"_196":23,"_197":214,"_198":199,"_200":201},{"_190":218,"_192":193,"_194":219,"_195":-5},[141],{"_202":237,"_204":237},{"_202":236,"_204":236},{"_196":23,"_197":232,"_198":199,"_200":201},{"_190":235,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},[141],{"_202":251,"_204":251},{"_202":250,"_204":250},{"_196":23,"_197":245,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},{"_110":266,"_223":267},[146],{"_202":265,"_204":265},{"_202":264,"_204":264},{"_196":23,"_197":260,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_110":282,"_223":283},[141],{"_202":281,"_204":281},{"_202":280,"_204":280},{"_196":23,"_197":276,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},[141],{"_202":295,"_204":295},{"_202":294,"_204":294},{"_196":23,"_197":291,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},[141],{"_202":308,"_204":308},{"_202":307,"_204":307},{"_196":23,"_197":303,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},[152],{"_202":320,"_204":320},{"_202":319,"_204":319},{"_196":23,"_197":316,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},[141],{"_202":332,"_204":332},{"_202":331,"_204":331},{"_196":23,"_197":328,"_198":201,"_200":201},{"_190":249,"_192":193,"_194":-5,"_195":-5},{"_387":142,"_388":143,"_389":390,"_391":-5},"breadcrumbs",[560,561,562,563],"children",[],{"_110":566,"_46":567,"_44":568},{"_110":116,"_46":117,"_44":565},{"_110":113,"_46":114,"_44":564},{"_110":111,"_46":47,"_44":45},"netzwerkgeraete","netzwerk-kommunikation","657252","Root","__root__","activeCustomer",{"_569":-5,"_1107":1108},"personalPriceHint",[],"locale","appVersion","1.0.3","theme","gaTrackingId","G-GNL2ZT2DYZ","googleAdsConversionId","AW-976942938","swetrixPid","PVcGqk93jyhl","tenant",{"_1081":1082,"_1083":1084,"_1085":1086,"_1087":21,"_1088":21,"_1089":1090,"_1091":76,"_1092":34,"_1093":36,"_1094":1095,"_1096":1097},"org",{"_1070":1071,"_64":1069,"_46":1072,"_1073":1074,"_1075":1076,"_48":1077,"_1078":1079},"chrome",{"_132":654,"_655":-5,"_656":657,"_658":659,"_660":661,"_662":663,"_664":665,"_666":667,"_668":669,"_670":593,"_671":672,"_673":674,"_675":676,"_677":678},{"_628":629,"_630":631,"_632":633,"_634":635,"_636":637,"_142":638,"_639":640},"customerAuthMode","native","myAscendAccountUrl","https://my.ascend.de","authentikUserSettingsUrl","paymentOptions",[597,598,599,600,601],{"_126":624,"_603":624,"_46":625,"_48":626,"_606":627,"_608":-5,"_609":-5,"_610":23},{"_126":620,"_603":616,"_46":621,"_48":-5,"_606":622,"_608":21,"_609":623,"_610":23},{"_126":615,"_603":616,"_46":617,"_48":-5,"_606":618,"_608":21,"_609":619,"_610":76},{"_126":611,"_603":611,"_46":612,"_48":613,"_606":614,"_608":-5,"_609":-5,"_610":23},{"_126":602,"_603":602,"_46":604,"_48":605,"_606":607,"_608":-5,"_609":-5,"_610":23},"paypal","provider","PayPal","Sicher bezahlen mit Ihrem PayPal-Konto","category","wallet","minimumAmount","maximumAmount","requiresCompany","bank-transfer","Vorkasse - Banküberweisung","Bezahlen Sie per Vorkasse - Bestellung wird nach Zahlungseingang bearbeitet (1-3 Werktage)","prepayment","mollie:billie","mollie","Rechnungskauf für Firmenkunden - Billie","invoice",2500000,"mollie:paybybank","Sofortüberweisung","bank",5000000,"stripe","Stripe Kredit-/Debitkarte","Sicher bezahlen mit Visa, Mastercard oder American Express","card","ekahau",{"_46":651,"_389":652,"_391":653},"teltonika",{"_46":649,"_389":650,"_391":-5},"poynting-antennas",{"_46":647,"_389":648,"_391":-5},"ubiquiti",{"_46":645,"_389":646,"_391":-5},"viprinet",{"_46":643,"_389":644,"_391":-5},{"_46":143,"_389":390,"_391":-5},"peplink",{"_46":641,"_389":642,"_391":-5},"Peplink","/media/1/brand-logos/234260/light.png","Viprinet","/media/1/brand-logos/7911912/light.svg","Ubiquiti","/media/1/brand-logos/234412/light.png","Poynting","/media/1/brand-logos/234428/light.svg","Teltonika","/media/1/brand-logos/234369/light.svg","Ekahau","/media/1/brand-logos/234675/light.svg","/media/1/brand-logos/234675/dark.svg",{"_46":859,"_1064":1065,"_1066":1067,"_1068":1069},"announcement","menus",{"_871":872,"_677":873},"company",{"_46":859,"_860":861,"_862":863,"_864":865,"_866":867},"social",[834,835,836,837,838,839,840,841],"legal",[823,824,825,826,827],"brand_logos",[805,806,807,808,809,810,811,812],"disclaimers",[800,801,802,803,804],"copyright","© {year} ASCEND GmbH","login_href","supported_locales",[36,37,38,39,41,40],"robots_welcome",{"_770":76,"_81":693,"_798":799},"trust_credentials",[775,776,777],"footer",{"_679":21,"_680":681,"_682":683,"_684":685},"version","sections",[763,764,765,766,767,768],"bottomLinks",[717,718,719,720,721],"hubServiceLinks",[686,687,688],{"_110":708,"_89":709,"_691":710},{"_110":699,"_89":700,"_691":701},{"_110":689,"_89":690,"_691":692},"robots","page:robots-welcome","labels",{"_36":693,"_37":694,"_41":695,"_38":696,"_39":697,"_40":698},"Robots willkommen","Robots welcome","Robots bienvenidos","Robots bienvenus","Robot benvenuti","Роботы приветствуются","cookies","action:cookie-settings",{"_36":702,"_37":703,"_41":704,"_38":705,"_39":706,"_40":707},"Cookie-Einstellungen","Cookie settings","Configuración de cookies","Paramètres des cookies","Impostazioni cookie","Настройки cookie","cancel","page:cancel",{"_36":711,"_37":712,"_41":713,"_38":714,"_39":715,"_40":716},"Verträge kündigen","Cancel contracts","Cancelar contratos","Résilier des contrats","Disdire contratti","Расторгнуть договоры",{"_110":754,"_89":755,"_691":756},{"_110":746,"_89":747,"_691":748},{"_110":662,"_89":739,"_691":740},{"_110":731,"_89":732,"_691":733},{"_110":722,"_89":723,"_691":724},"payment_shipping","page:payment-shipping",{"_36":725,"_37":726,"_41":727,"_38":728,"_39":729,"_40":730},"Zahlung & Versand","Payment & shipping","Pago y envío","Paiement et livraison","Pagamento e spedizione","Оплата и доставка","contact","page:contact",{"_36":734,"_37":735,"_41":736,"_38":735,"_39":737,"_40":738},"Kontakt","Contact","Contacto","Contatti","Контакты","hub:legal",{"_36":741,"_37":742,"_41":742,"_38":743,"_39":744,"_40":745},"Rechtliches","Legal","Informations juridiques","Note legali e condizioni","Правовая информация","datenschutz","legal:datenschutz",{"_36":749,"_37":750,"_41":751,"_38":752,"_39":750,"_40":753},"Datenschutz","Privacy","Privacidad","Confidentialité","Конфиденциальность","impressum","legal:impressum",{"_36":757,"_37":758,"_41":759,"_38":760,"_39":761,"_40":762},"Impressum","Legal notice","Aviso legal","Mentions légales","Note legali","Выходные данные",{"_110":774,"_770":76},{"_110":773,"_770":23},{"_110":772,"_770":76},{"_110":771,"_770":76},{"_110":666,"_770":76},{"_110":769,"_770":76},"bottom_bar","enabled","payment_band","trust_band","newsletter","main_grid",{"_778":658,"_779":793,"_81":794,"_781":795,"_783":796,"_784":-7,"_785":-5},{"_778":658,"_779":790,"_81":790,"_781":791,"_783":-5,"_784":-7,"_785":-5},{"_778":658,"_779":780,"_81":780,"_781":782,"_783":-5,"_784":-7,"_785":786},"scope","program","Peplink Certified Gold Partner","badge",{"_787":788,"_789":-5,"_66":780},"verify_url","holder","valid_until","2027-04-10T21:59:59.000Z","src","/nexus-media/1/website-studio/import/ce58c53c62a79ff822423c1a81ec4311a409643c62b82279757d70d8ebb9ec65-peplink-certified-gold-partner.png","src_dark","Ekahau Reseller Partner",{"_787":792,"_789":-5,"_66":790},"/nexus-media/1/website-studio/import/613a426c8c3e22a89c51d002d6a1da50b98cfa884267e91655a8abfce3ea6c32-ekahau-reseller-partner.png","Peplink Authorized E-Tailer","Autorisierter Peplink E-Tailer",{"_787":797,"_789":-5,"_66":794},"https://www.peplink.com/buy/authorized-etailer-directory/","/nexus-media/1/website-studio/import/55380c7e197d375a108eac9bde6a0a83f6e8a4fab99d71174db2c1cf8703b5b8-peplink-authorized-etailer.png","href","/robots-welcome/","Unsere Angebote richten sich ausschließlich an Geschäftskunden. Wir schließen keine Verträge mit Verbrauchern ab.","Alle Preise verstehen sich zzgl. USt., Versandkosten und ggf. Nachnahmegebühren.","Produktbilder können vom tatsächlichen Produkt abweichen.","ASCEND GmbH arbeitet zusammen mit Brdy, einem offiziellen Starlink-Reseller.","Kategoriebilder und einzelne Videos auf dieser Website werden mit KI erzeugt; Produktfotos stammen unverändert von den Herstellern.",{"_787":652,"_66":651,"_789":653,"_798":822},{"_787":642,"_66":641,"_789":-5,"_798":821},{"_787":650,"_66":649,"_789":-5,"_798":820},{"_787":648,"_66":647,"_789":-5,"_798":819},{"_787":816,"_66":817,"_789":-5,"_798":818},{"_787":646,"_66":645,"_789":-5,"_798":815},{"_787":390,"_66":143,"_789":-5,"_798":814},{"_787":644,"_66":643,"_789":-5,"_798":813},"https://shop.ascend.de/de/marken/viprinet","https://shop.ascend.de/de/marken/huawei","https://shop.ascend.de/de/marken/ubiquiti","/media/1/brand-logos/234103/light.png","D-Link","https://shop.ascend.de/de/marken/d-link","https://shop.ascend.de/de/marken/poynting-antennas","https://shop.ascend.de/de/marken/teltonika","https://shop.ascend.de/de/marken/peplink","https://shop.ascend.de/de/marken/ekahau",{"_44":832,"_93":833},{"_44":746,"_93":749},{"_44":754,"_93":757},{"_44":830,"_93":831},{"_44":828,"_93":829},"widerruf","Widerruf","ki-transparenz","KI-Transparenz","agb","AGB",{"_842":857,"_798":858},{"_842":855,"_798":856},{"_842":853,"_798":854},{"_842":851,"_798":852},{"_842":849,"_798":850},{"_842":847,"_798":848},{"_842":845,"_798":846},{"_842":843,"_798":844},"kind","tumblr","https://www.tumblr.com/ascend-gmbh","instagram","https://www.instagram.com/ascend_gmbh/","x","https://twitter.com/ASCEND_Germany","pinterest","https://www.pinterest.de/ascendgmbh/","vk","https://vk.com/ascendgmbh","facebook","https://www.facebook.com/ascend.de/","linkedin","https://www.linkedin.com/company/ascend-gmbh","youtube","https://www.youtube.com/@ascendgmbhnurnberg2161","ASCEND GmbH","address_lines",[869,870],"phone","+49 911-148875-20","email","team@ascend.de","opening_hours",[868],"Montag bis Freitag, 09:00 bis 17:00 Uhr","Wilhelm-Spaeth-Straße 2","90461 Nürnberg","main",[874,875,876,877,878,879,880,881],[],{"_81":977,"_798":978,"_883":23,"_558":979},{"_81":950,"_798":951,"_883":23,"_558":952},{"_81":910,"_798":911,"_883":23,"_558":912},{"_81":892,"_798":893,"_883":23,"_558":894},{"_81":890,"_798":32,"_883":76,"_558":891},{"_81":734,"_798":888,"_883":23,"_558":889},{"_81":885,"_798":886,"_883":23,"_558":887},{"_81":882,"_798":593,"_883":76,"_558":884},"Mein Ascend","external",[],"Meldungen","/meldungen/",[],"/kontakt",[],"Shop",[],"Unternehmen","/zuverlaessige-netzwerkloesungen-ascend",[895,896,897,898],{"_81":907,"_798":908,"_883":23,"_558":909},{"_81":904,"_798":905,"_883":23,"_558":906},{"_81":902,"_798":886,"_883":23,"_558":903},{"_81":899,"_798":900,"_883":23,"_558":901},"FAQ","/faq",[],"Aktuelles",[],"Presse & Referenzen","/wir-in-der-presse",[],"Unternehmensprofil","/ueber-uns",[],"Produkte","/hochwertige-netzwerkprodukte-ascend",[913,914,915],{"_81":947,"_798":948,"_883":23,"_558":949},{"_81":944,"_798":945,"_883":23,"_558":946},{"_81":916,"_798":917,"_883":23,"_558":918},"Marken","/loesungen/marken/",[919,920,921,922,923,924,925,926],{"_81":651,"_798":942,"_883":23,"_558":943},{"_81":641,"_798":940,"_883":23,"_558":941},{"_81":649,"_798":938,"_883":23,"_558":939},{"_81":935,"_798":936,"_883":23,"_558":937},{"_81":643,"_798":933,"_883":23,"_558":934},{"_81":647,"_798":931,"_883":23,"_558":932},{"_81":645,"_798":929,"_883":23,"_558":930},{"_81":143,"_798":927,"_883":23,"_558":928},"/loesungen/marken/huawei",[],"/loesungen/marken/ubiquiti",[],"/loesungen/marken/poynting-antennas",[],"/viprinet",[],"Starlink","/starlink",[],"/loesungen/marken/teltonika/",[],"/loesungen/marken/peplink/",[],"/loesungen/marken/ekahau",[],"Teltonika-Router","/teltonika-router",[],"Router für SIM Karten","/router-fuer-sim-karten",[],"Anwendung","/sd-wan-anwendungen-ascend",[953,954,955,956,957,958],{"_81":974,"_798":975,"_883":23,"_558":976},{"_81":971,"_798":972,"_883":23,"_558":973},{"_81":968,"_798":969,"_883":23,"_558":970},{"_81":965,"_798":966,"_883":23,"_558":967},{"_81":962,"_798":963,"_883":23,"_558":964},{"_81":959,"_798":960,"_883":23,"_558":961},"Segelboote","/internet-auf-dem-segelboot/",[],"Yachten & Boote","/internet-auf-der-yacht/",[],"Gäste und Hotels","/wlan-fuer-hotels",[],"Fahrzeugflotten","/wlan-fuer-fahrzeuge",[],"Events","/wlan-mieten-event",[],"Baustellen","/wlan-auf-dem-bau",[],"Lösungen","/it-loesungen-fuer-effiziente-unternehmen-ascend",[980,981,982,983],{"_81":1053,"_798":1054,"_883":23,"_558":1055},{"_81":1022,"_798":1023,"_883":23,"_558":1024},{"_81":991,"_798":992,"_883":23,"_558":993},{"_81":984,"_798":985,"_883":23,"_558":986},"NetByrd","/entdecken-sie-unsere-netbyrd-produktreihe",[987],{"_81":988,"_798":989,"_883":23,"_558":990},"Netbyrd Wi-Fi Box","/netbyrd-wlan-fuer-unterwegs",[],"Systemhaus","/it-systemhaus",[994,995,996,997,998,999,1000],{"_81":1019,"_798":1020,"_883":23,"_558":1021},{"_81":1016,"_798":1017,"_883":23,"_558":1018},{"_81":1013,"_798":1014,"_883":23,"_558":1015},{"_81":1010,"_798":1011,"_883":23,"_558":1012},{"_81":1007,"_798":1008,"_883":23,"_558":1009},{"_81":1004,"_798":1005,"_883":23,"_558":1006},{"_81":1001,"_798":1002,"_883":23,"_558":1003},"E-Mail-Sicherheit","/e-mail-sicherheit",[],"KVM Virtualisierung","/kvm-virtualisierung",[],"Peplink Broadcasting Training","/peplink-broadcasting-training-alles-was-du-wissen-musst",[],"Videokonferenzen","/videokonferenzen",[],"Monitoring","/monitoring",[],"Antivirus","/antivirus",[],"IT-Sicherheit Nürnberg","/it-sicherheit-nuernberg",[],"Vernetzung","/vernetzung",[1025,1026,1027,1028,1029,1030,1031,1032],{"_81":1051,"_798":975,"_883":23,"_558":1052},{"_81":968,"_798":969,"_883":23,"_558":1050},{"_81":1047,"_798":1048,"_883":23,"_558":1049},{"_81":1044,"_798":1045,"_883":23,"_558":1046},{"_81":1041,"_798":1042,"_883":23,"_558":1043},{"_81":1038,"_798":1039,"_883":23,"_558":1040},{"_81":1036,"_798":936,"_883":23,"_558":1037},{"_81":1033,"_798":1034,"_883":23,"_558":1035},"Heimarbeitsplätze","/heim-und-fernarbeitsplaetze",[],"Hochverfügbarkeit mit Starlink",[],"WLAN-Bridge","/wlan-bridge-loesungen/",[],"Viprinet Bonding","/multi-wan-bonding-viprinet/",[],"Teltonika Bonding","/teltonika-bonding-ihr-schluessel-zu-zuverlaessiger-und-hochverfuegbarer-konnektivitaet",[],"Standorte","/standortvernetzung",[],[],"Anlagen & Baustellen",[],"SD-WAN","/sd-wan",[1056,1057],{"_81":1061,"_798":1062,"_883":23,"_558":1063},{"_81":1058,"_798":1059,"_883":23,"_558":1060},"VPN Hub Hosting","/vpn-hub",[],"Was ist SD-WAN?","/was-ist-sd-wan",[],"logo_light_url","https://www.ascend.de/chrome/ascend_logo_light.png","logo_dark_url","https://www.ascend.de/chrome/ascend_logo_dark.png","home_href","https://www.ascend.de","@id","https://www.ascend.de#org","Ascend GmbH","logo","https://shop.ascend.de/ascend_logo_light.png","sameAs",[852,850,844,1080,858,854,856,846],"Ascend GmbH is a Nuremberg-based IT system house specializing in WLAN, SD-WAN, networking, and IT security solutions for businesses. The company provides hardware, software, and comprehensive services to support enterprise connectivity and security needs. With a focus on reliable and secure IT infrastructure, Ascend delivers tailored solutions from its headquarters in Nuremberg.","slogan","Your network stays up. So do your nerves.","https://x.com/ASCEND_Germany","tenant_id","ascend","site_id","shop","hostnames",[1104,1105,1106],"nexus_tenant_id","nexus_site_id","vendure_url","https://shop-backend.ascend.de/shop-api","shop_enabled","languages","default_locale","theme_tokens",{"_1100":1101,"_1102":1103},"branding",{"_46":1098,"_48":1099},"Ascend Shop","B2B IT-Reseller — Netzwerk, Wireless & IT-Equipment","brand-primary","#0f3a82","brand-accent","#3a8fd6","shop.ascend.de","staging-shop.ascend.de","localhost","_headers",["SingleFetchClassInstance",1109],{}]

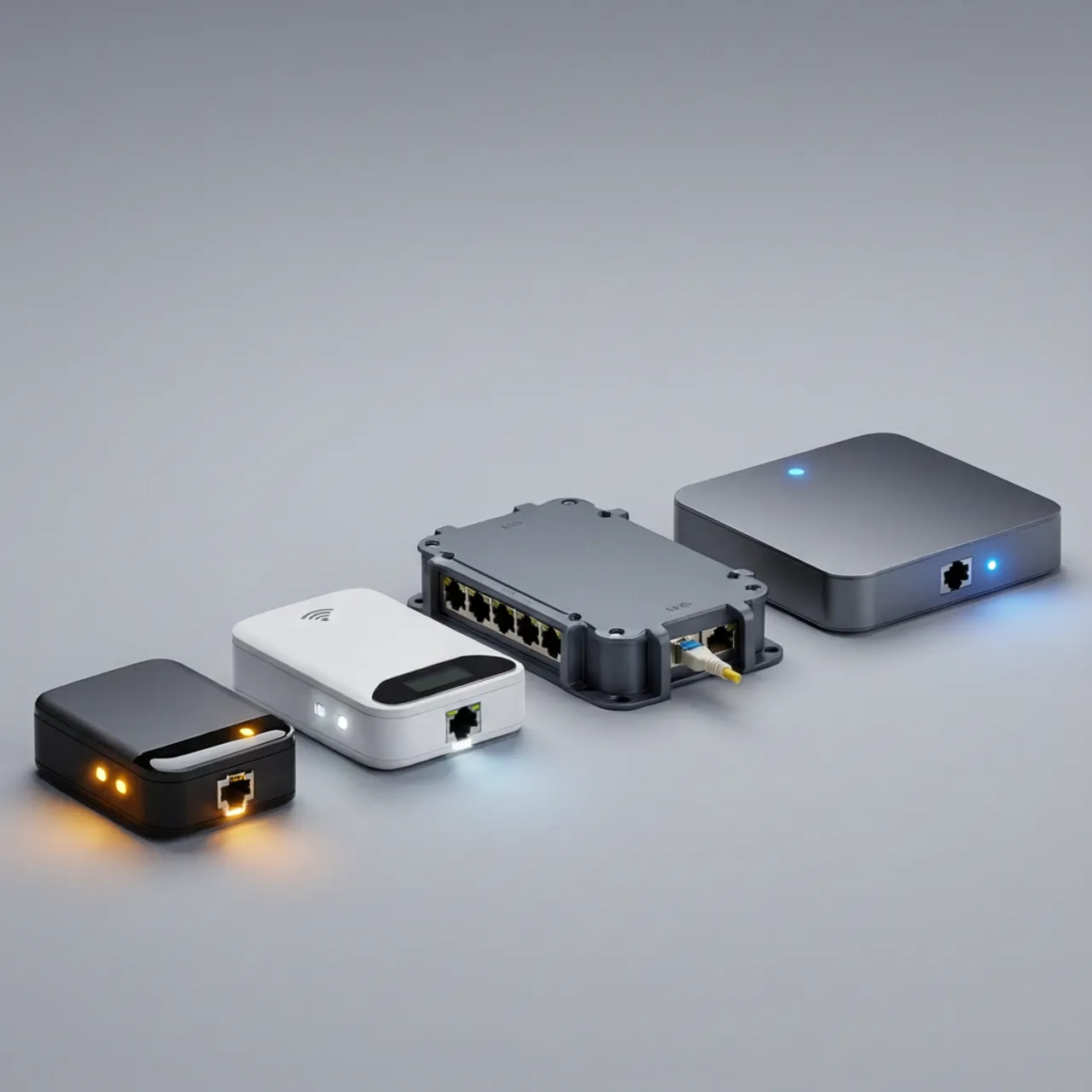

GPON-ONT & FTTH-Terminals
