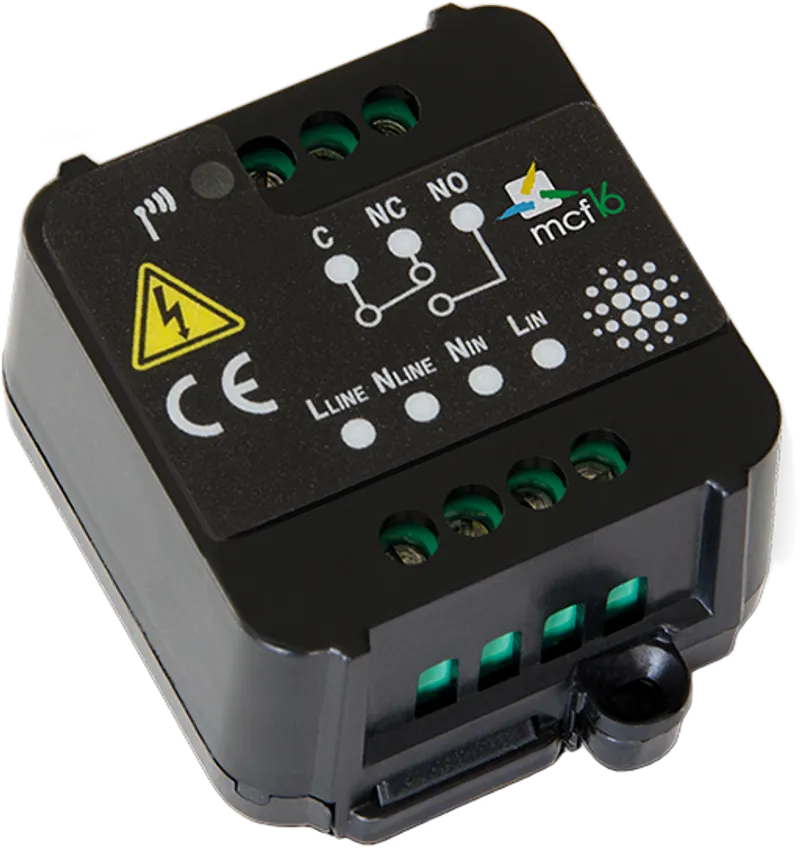

MCF88 LoRa MCF88 LoRaWAN wireless actuator LoRa MCF88 LoRaWAN wireless actuator

LoRa MCF88 LoRaWAN wireless actuator This device can transmits the status of its input and control the output through the LoRaWAN® network. Can be used for industrial process control and home automation, water treatment, agriculture irrigation and similar applications. Technical data CPU Cortex M0+ RTC EEProm 32KB Flash 64KB Encryption AES 128 bit Class C LoRaWAN® stack EU868, AS923 1 opto-isolated input, 230Vac 1 relay output with COM, NO, NC contacts 8Amp@230Vac NFC for IoT node setup ad FW upgrade Power supply from AC line Storage temperature range -20 + 80C° Working temperature range -10 + 70C° Dimension: 58x44x25mm
