Teltonika

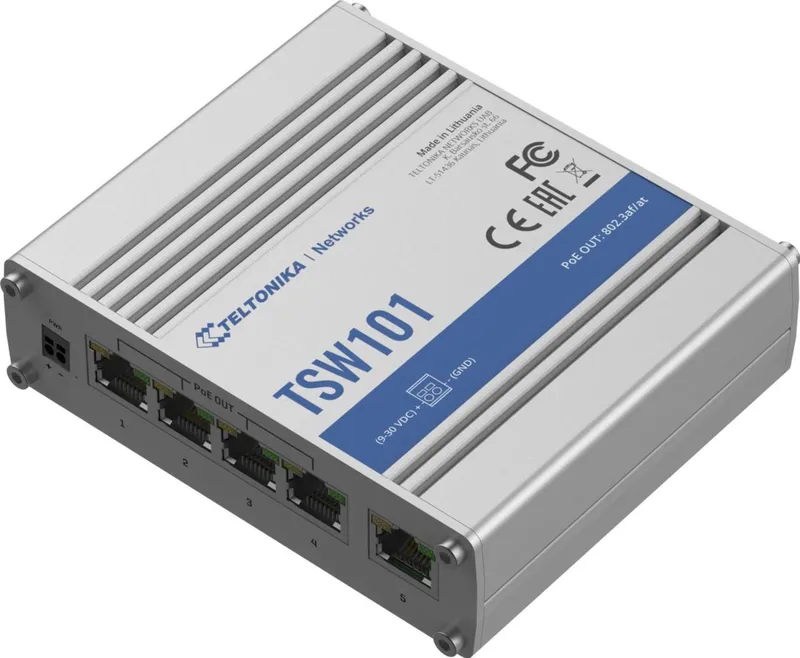

Teltonika · Switch · TSW101 · 5 Port Gigabit Industrial unmanaged POE Switch
Ref.: tsw101|71 listo para enviar
Descripción
El TSW101 de Teltonika Networks es un switch industrial no gestionado de 5 puertos Gigabit con PoE+, diseñado para entornos exigentes que requieren una conexión de red robusta y confiable. Ideal para aplicaciones de automatización industrial, transporte y sistemas de vigilancia, este switch cuenta con 4 puertos PoE+ (IEEE 802.3af/at) que pueden entregar hasta 30W por puerto, con un presupuesto total de 60W. Su diseño compacto en chasis de aluminio con grado de protección IP30 soporta temperaturas extremas de -40°C a +75°C, garantizando un funcionamiento estable en las condiciones más adversas. Con soporte para jumbo frames de hasta 9216 bytes y un ancho de banda no bloqueante de 10 Gbps, el TSW101 asegura un rendimiento óptimo para redes de alta demanda. Su alimentación de 9-30 VDC lo hace compatible con sistemas de energía vehicular e industrial, mientras que sus opciones de montaje en riel DIN o pared ofrecen flexibilidad de instalación. Certificaciones CE, RoHS y E-Mark garantizan su calidad y cumplimiento normativo.
Ficha de datos IA
# Teltonika · Switch · TSW101 · 5-Port Gigabit Industrial Unmanaged PoE Switch
The Teltonika TSW101 is an industrial unmanaged PoE switch with five Gigabit Ethernet ports, four of which support PoE+ (802.3af/at), designed specifically for automotive and industrial applications with a wide voltage range.
Key facts:
- Ports: 5 x RJ45, 10/100/1000 Mbps, Auto MDI/MDIX
- PoE: Ports 1–4, 802.3af and 802.3at, max. 30 W per port (at PSE), 60 W total budget (at PSE)
- Bandwidth (non-blocking): 10 Gbps
- Input voltage: 9–30 VDC (2-pin industrial DC connector)
- Operating temperature: -40 °C to +75 °C, humidity 10 % to 90 % non-condensing
- Protection rating: IP30, aluminum housing
- Certifications: CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM, E-Mark, EN IEC 62368-1:2020+A11:2020
- Warranty: 24 months
Ideal for: Automotive and industrial applications, centralized PoE power supply in vehicles combined with Ethernet data connectivity, DIN rail or wall mounting.
