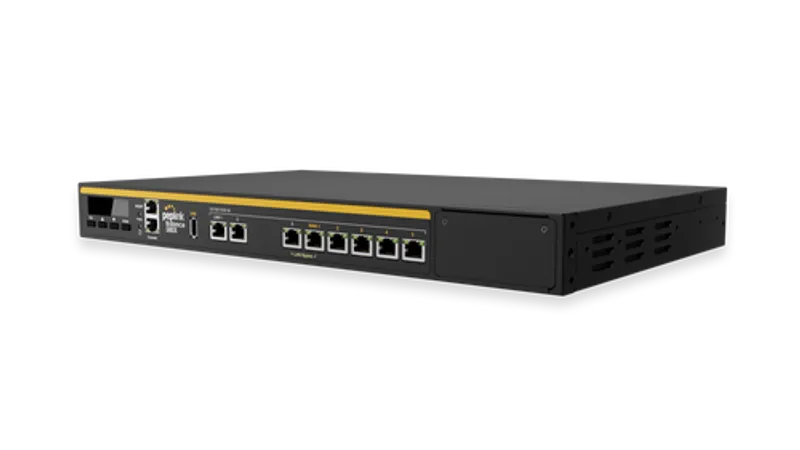

Peplink Balance 580X
The Balance 580X is a business-grade multi-WAN router featuring gigabit-capable bonding, flexible 2.5G PoE++ ports, and centralized SIM management. It ensures uninterrupted connectivity through SpeedFusion VPN and intelligent load balancing. With its PoE++ platform, it powers high-performance devices directly and reduces cabling complexity.
- Gigabit Bonding Throughput
- Bandwidth aggregation for business-critical app…
- Configurable 2.5G PoE++ Ports
- Flexibly usable as WAN or LAN
- PoE++ Platform
- Power high-performance end devices directly via…
- Centralized SIM Management
- SIM Injector FlexModule for simplified mobile m…
Description
Key Highlights at a Glance
- Gigabit Bonding Throughput: Bandwidth aggregation for business-critical applications
- Configurable 2.5G PoE++ Ports: Flexibly usable as WAN or LAN
- PoE++ Platform: Power high-performance end devices directly via network cable
- Centralized SIM Management: SIM Injector FlexModule for simplified mobile management
- SpeedFusion VPN: Site-to-site VPN with 256-bit AES encryption and hot failover
- Advanced QoS: Bandwidth reservation and application prioritization by user groups
- AP Controller: Automatic detection and firmware management for Pepwave Access Points
High-Performance Connectivity and Throughput
The Balance 580X handles demanding network loads through gigabit-capable bonding and a variety of load distribution algorithms. The multi-WAN architecture supports PPPoE, static IPs, and DHCP, enhanced by WAN link health checks via PING, DNS lookup, and HTTP. A bandwidth quota monitor prevents unexpected costs, while algorithms such as Weighted, Enforced, Persistence, Priority, Overflow, Least Used, and Lowest Latency ensure optimal traffic distribution. This keeps business-critical services available even during line failures.
Flexible WAN Options and SIM Management
The configurable 2.5G PoE++ ports can be operated as either WAN or LAN interfaces, enabling clean cabling. For additional redundancy, 5G/4G/3G USB modems can be integrated. The SIM Injector FlexModule centralizes the management of multiple SIM cards, simplifying the use of mobile connections. Dynamic DNS services such as changeip.com, dyndns.org, no-ip.org, tzo.com, and DNS-O-Matic, along with the option to convert WAN ports into LAN ports, further enhance flexibility.
Comprehensive Security and VPN
A stateful firewall, DoS prevention, and web blocking protect the network at the perimeter level. SpeedFusion VPN provides site-to-site tunnels with bandwidth aggregation, hot failover, and 256-bit AES encryption. Authentication is supported via pre-shared keys or X.509 certificates, with dynamic routing also available. Additionally, PPTP, L2TP, and OpenVPN servers with local user, LDAP, RADIUS, and Active Directory authentication, as well as IPsec and GRE tunnels for network-to-network connections, are available.
Intelligent Management and Deployment
Management is possible via the web interface, command line, or the cloud-based InControl platform. Active session lists, bandwidth statistics, Syslog, and SNMP v1/v2c/v3 provide comprehensive visibility. The integrated AP controller automatically detects Pepwave APs, distributes firmware, and configures profiles. A captive portal with RADIUS/LDAP authentication, time and volume quotas, and a customizable splash page enables guest access. VLANs, DHCP reservation, DNS proxy, authoritative DNS server (A, CNAME, NS, MX, PTR, SOA, SRV, TXT), and routing protocols such as BGP, OSPFv2, and RIPv2 round out the feature set.
Technische Daten
| SIM Management | Flexible, centralized SIM management with SIM Injector FlexModule |
| USB Modem Support | 5G/4G/3G modem support |
| Configurable Multi-Gig Ports | 2.5G PoE++ ports as WAN or LAN |
| Gigabit Throughput | Gigabit bonding |
| WAN Support | PPPoE, static IP, DHCP |
| WAN Link Health Check | PING, DNS lookup, HTTP |
| Bandwidth Quota Monitor | Supported |
| IPv6 Support | Supported |
| Dynamic DNS Services | changeip.com, dyndns.org, no-ip.org, tzo.com, DNS-O-Matic |
| WAN Port Convertible to LAN Port | Supported |
| LAN DHCP Server | For LAN clients |
| Advanced DHCP Option | Supported |
| DHCP Reservation | Supported |
| DNS Proxy for LAN Clients | Supported |
| VLAN on LAN | Supported |
| Load Distribution Algorithms | Weighted, Enforced, Persistence, Priority, Overflow, Least Used, Lowest Latency |
| Software | Peplink Balance Firmware |
| Security | DoS prevention, stateful firewall, web blocking |
| VPN Solution | SpeedFusion VPN (site-to-site, bandwidth aggregation, hot failover, 256-bit AES, pre-shared key, dynamic routing, X.509), PPTP/L2TP/OpenVPN server (local, LDAP, RADIUS, Active Directory), IPsec VPN (network-to-network, X.509), GRE tunnel |
| Advanced QoS | User groups, bandwidth reservation, individual limits, application prioritization (SIP, HTTPS, VPN QoS, custom) |
| Network Functions | NAT and IP forwarding, static routes, port forwarding, many-to-one/one-to-one NAT, NAT pool, SIP ALG, H.323 ALG, UPnP, NAT-PMP, WINS server, BGP, OSPFv2, RIPv2, Bonjour forwarding |
| AP Controller | Pepwave AP Series, auto-discovery, firmware management, profile configuration, WLAN usage statistics |
| Captive Portal | For wired and wireless clients, RADIUS/LDAP authentication, time/volume quotas, customizable splash page |
| Integrated Authoritative DNS | A, CNAME, NS, MX, PTR, SOA, SRV, TXT records |
| Device Management | Web interface, CLI, InControl Cloud, email notification, active session lists, bandwidth statistics, Syslog, SNMP v1/v2c/v3 |
| Power Supply | Universal input 100 V – 240 V AC |
| PoE++ Platform | One PoE++ platform to power high-performance devices |
| Package Contents | 1x Balance 580X, 1x power cable (ACW-614), rubber foot set, 1x ear-rack mounting kit with screws |
