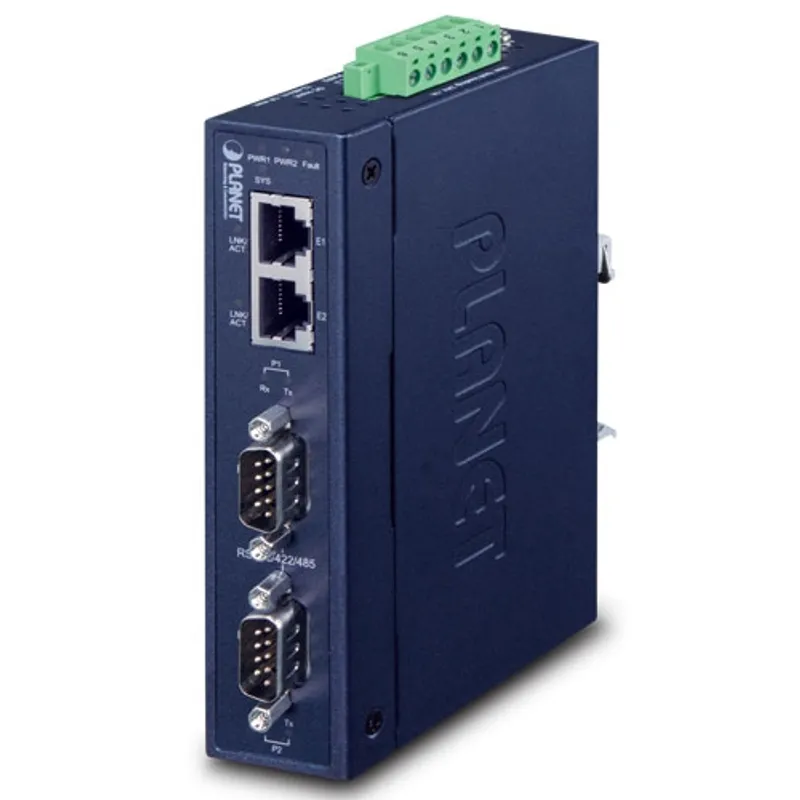

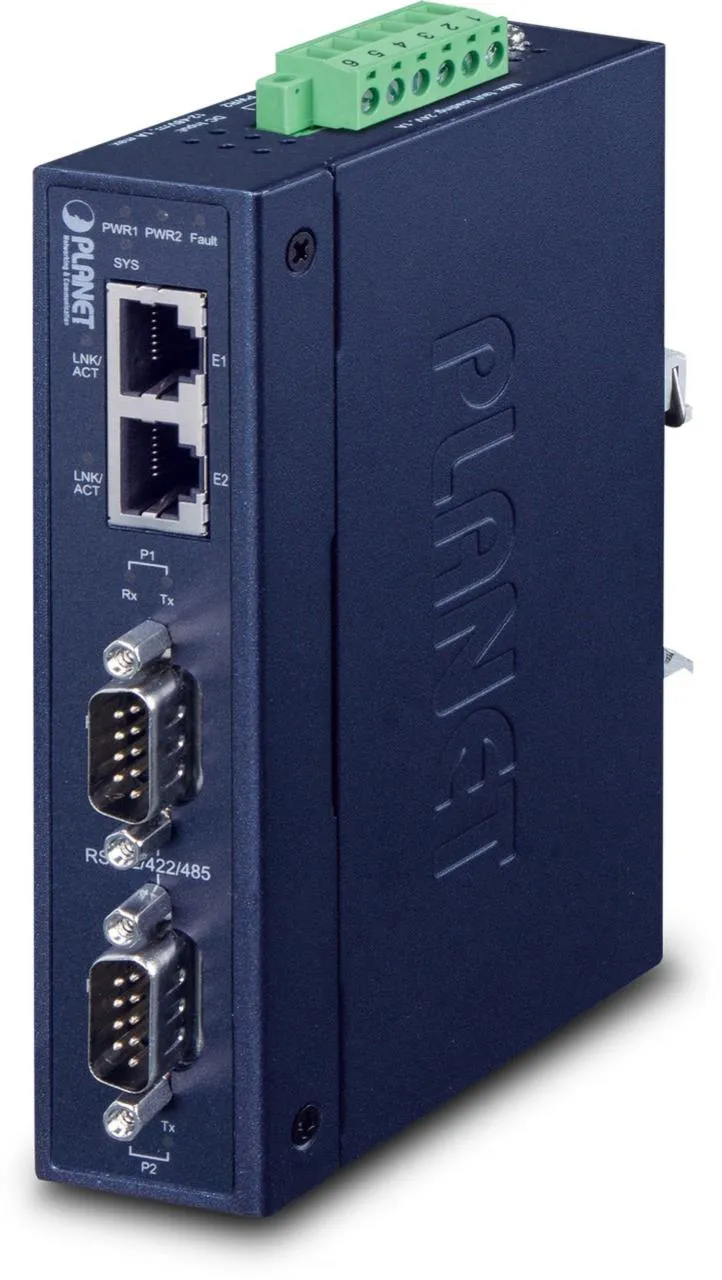

PLANET 2-Port RS232/RS422/RS485 Serial-Ethernet 2x10/100TX

The PLANET ICS-2200T Industrial Serial Device Server transforms RS232/422/485 serial communications into industrial Ethernet networking, extending network reach efficiently and cost-effectively. This rugged solution features two DB9 interfaces supporting multiple serial standards (RS232, 2-wire/4-wire RS485, RS422) with data rates up to 921,600bps. Its dual 10/100BASE-TX RJ45 ports with auto MDI/MDI-X enable flexible network deployment and cascading. The device offers versatile operation modes including VCOM, RFC2217, TCP Server/Client, UDP, and Serial Telnet, making it ideal for industrial automation, access control, and legacy equipment integration. Advanced management features include IPv4/IPv6 dual stack support, web-based configuration, Telnet console, and Windows VCOM utility for device discovery and monitoring. Security is ensured through IP access control, event notifications via Syslog and SNMP trap, and firmware upgrades via HTTP. The ICS-2200T provides a future-proof solution for modernizing existing serial devices without replacing legacy infrastructure.
