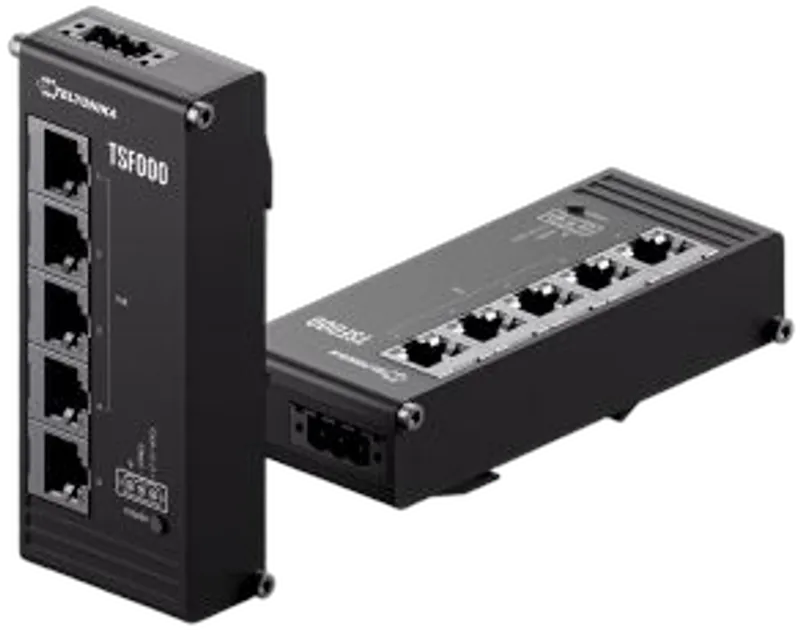

Teltonika · Switch · TSF000 · 5 Port 10/100 Flat Industrial unmanaged Switch, 4x PoE+

Highlights at a Glance

• Total PoE Power Budget: 120 W
• PoE+ Ports: 4 x IEEE 802.3af/at (30 W per port)
• Ethernet Ports: 5 x 10/100 Mbps RJ45 with auto MDI/MDIX
• Compact Design: Flat anodized aluminum housing with integrated DIN rail bracket
• Power Input: 7–57 VDC via 3-pin industrial socket, with overvoltage and reverse polarity protection
• Operating Temperature: -40 °C to 75 °C
• Industrial Protocol Support: Optional Profinet Class A conformance

Industrial-Grade Design & Power

The TSF000 is engineered for harsh environments with an anodized aluminum housing, IP30 ingress protection, and an operating temperature range of -40 °C to 75 °C at 5% to 95% non-condensing humidity. Its flat form factor (113 x 28 x 50 mm, 142 g) and integrated DIN rail bracket enable effortless installation inside control cabinets or tight machinery spaces. The 3-pin industrial DC power socket accepts a wide 7–57 VDC input, with built-in overvoltage protection (60 Vmax), reverse polarity protection (80 Vmax), and surge protection (breakdown voltage min 64.4 V / max 71.2 V, maximum reverse voltage 93.6 V, maximum reverse surge current 4.3 A), ensuring resilience against electrical transients common in industrial settings.

Performance & Connectivity

With a non-blocking switching bandwidth of 10 Gbps, a 128 KB packet buffer, and a 2K-entry MAC address table, the switch handles line-rate forwarding across all five 10/100 Mbps ports without congestion. Jumbo frame support up to 9216 bytes improves efficiency for large data transfers. The switch complies with IEEE 802.3i, 802.3u, 802.3x, 802.3az, 802.3p, and 802.3Q standards, and supports auto MDI/MDIX crossover on every RJ45 port. PoE+ is delivered on ports 1–4 using IEEE 802.3af (Type 1) and IEEE 802.3at (Type 2) Alternative A, with a per-port maximum of 30 W and a total budget of 120 W when powered from a 44–57 VDC source. Front-facing status LEDs (1 x Power, 10 x ETH) provide at-a-glance link and activity monitoring.

Deployment & Use Cases

As an unmanaged switch, the TSF000 requires no configuration, making it a plug-and-play solution for connecting IP cameras, sensors, access points, and controllers in industrial automation, smart city infrastructure, energy and utility networks, and retail environments. The optional Profinet Class A conformance (available via order code) ensures deterministic communication for real-time industrial Ethernet applications. All five Ethernet ports are front-accessible, simplifying cabling in space-constrained panels. The switch carries CE, UKCA, and WEEE certifications and is backed by a 24-month warranty.
