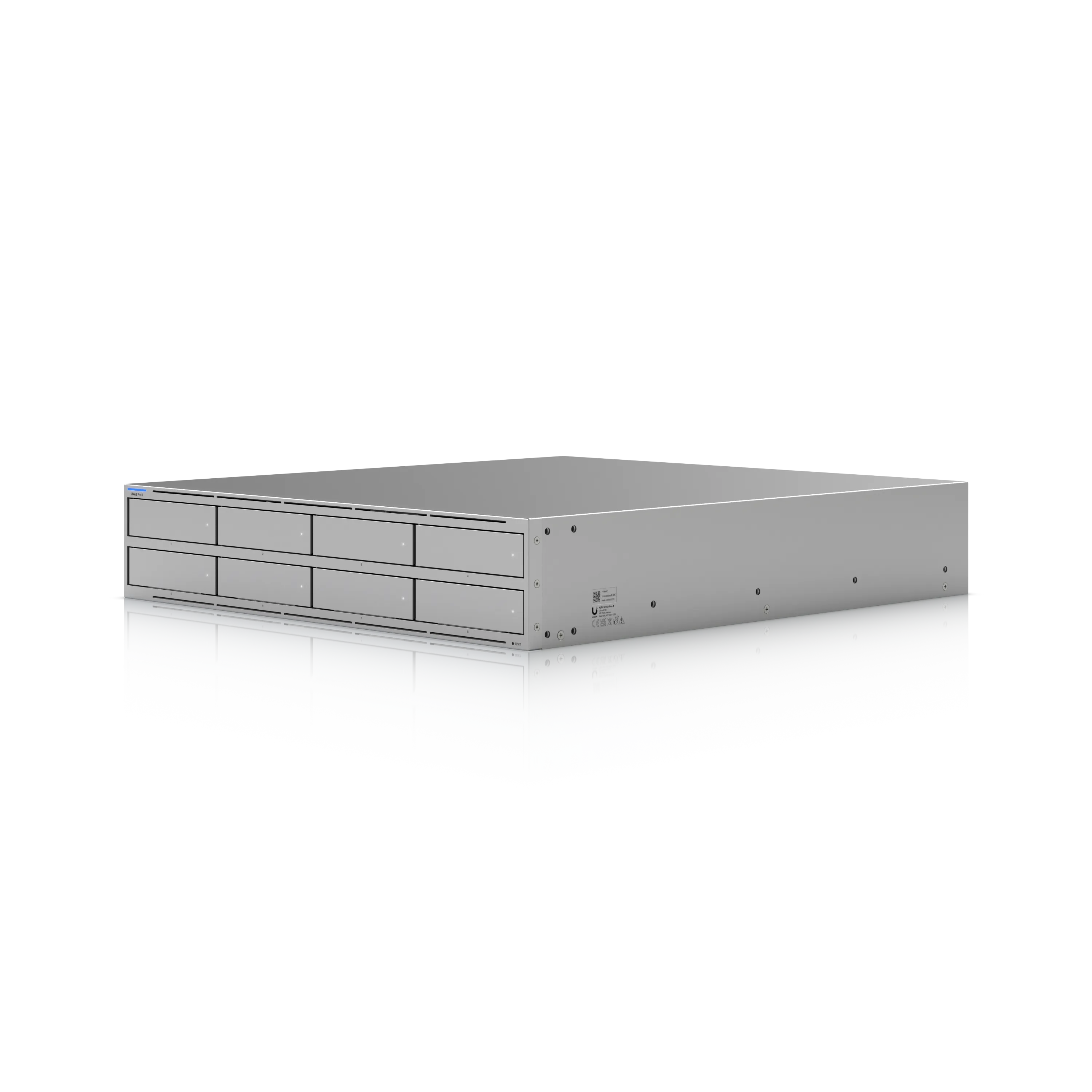

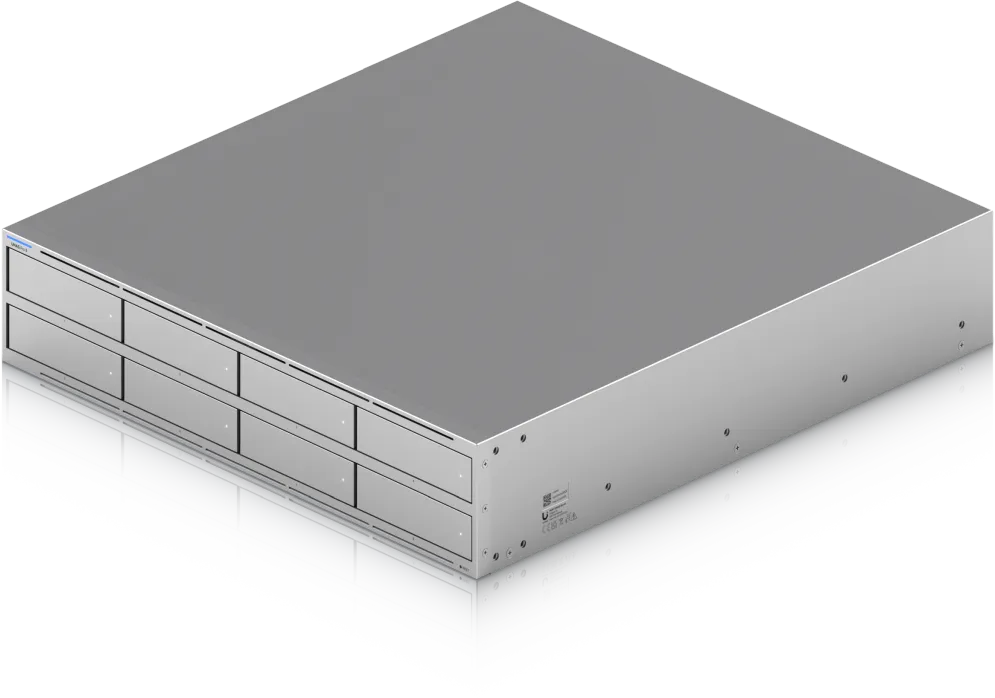

Ubiquiti UNAS-Pro-8

The Ubiquiti UNAS-Pro-8 is a 2U rackmount NAS with eight 2.5/3.5" drive bays and two M.2 NVMe SSD slots, delivering high-availability storage and file sharing for professional environments via 10 Gbps network interfaces.

Key Benefits at a Glance

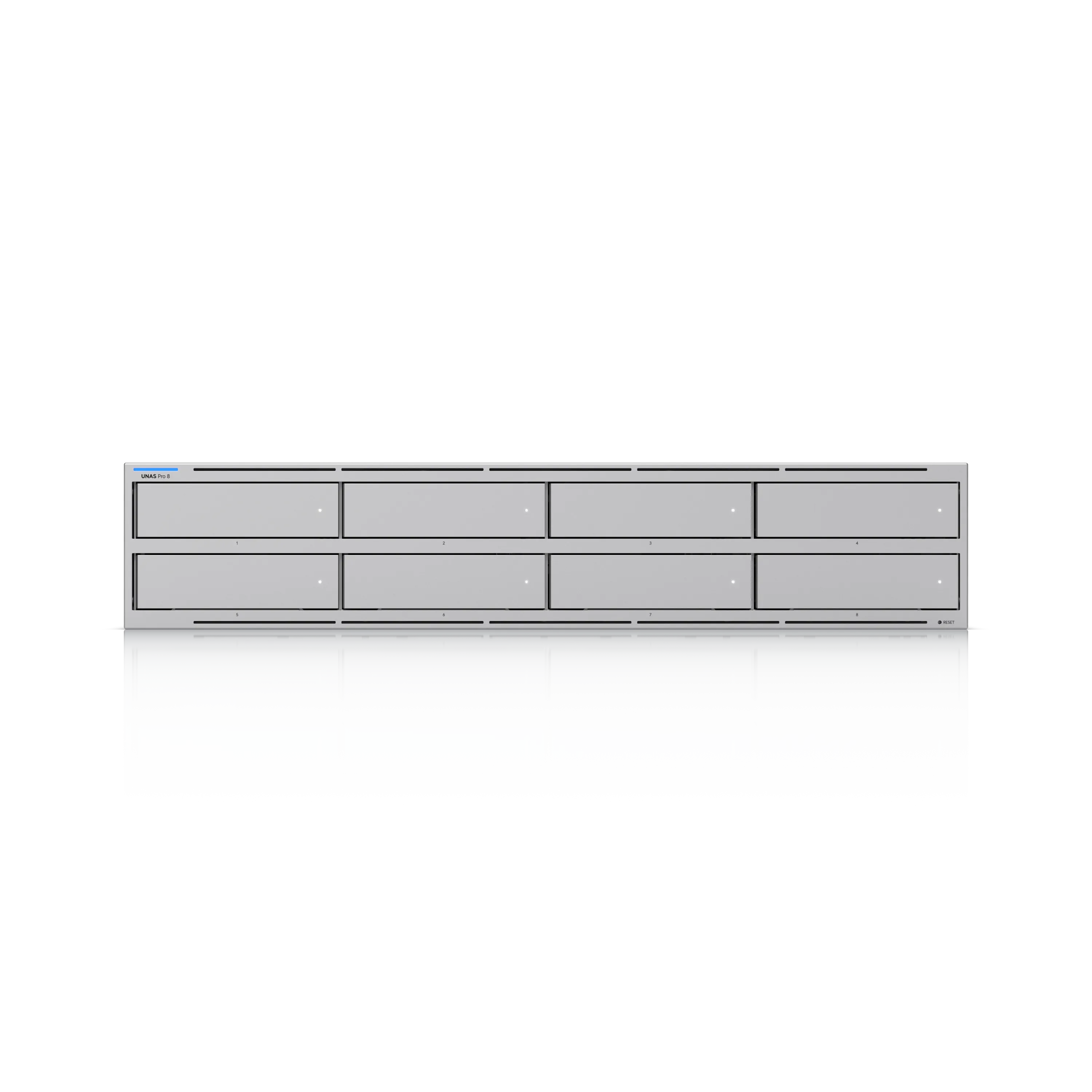

Eight drive bays for 2.5/3.5" HDDs/SSDs plus two M.2 NVMe slots for SSD caching

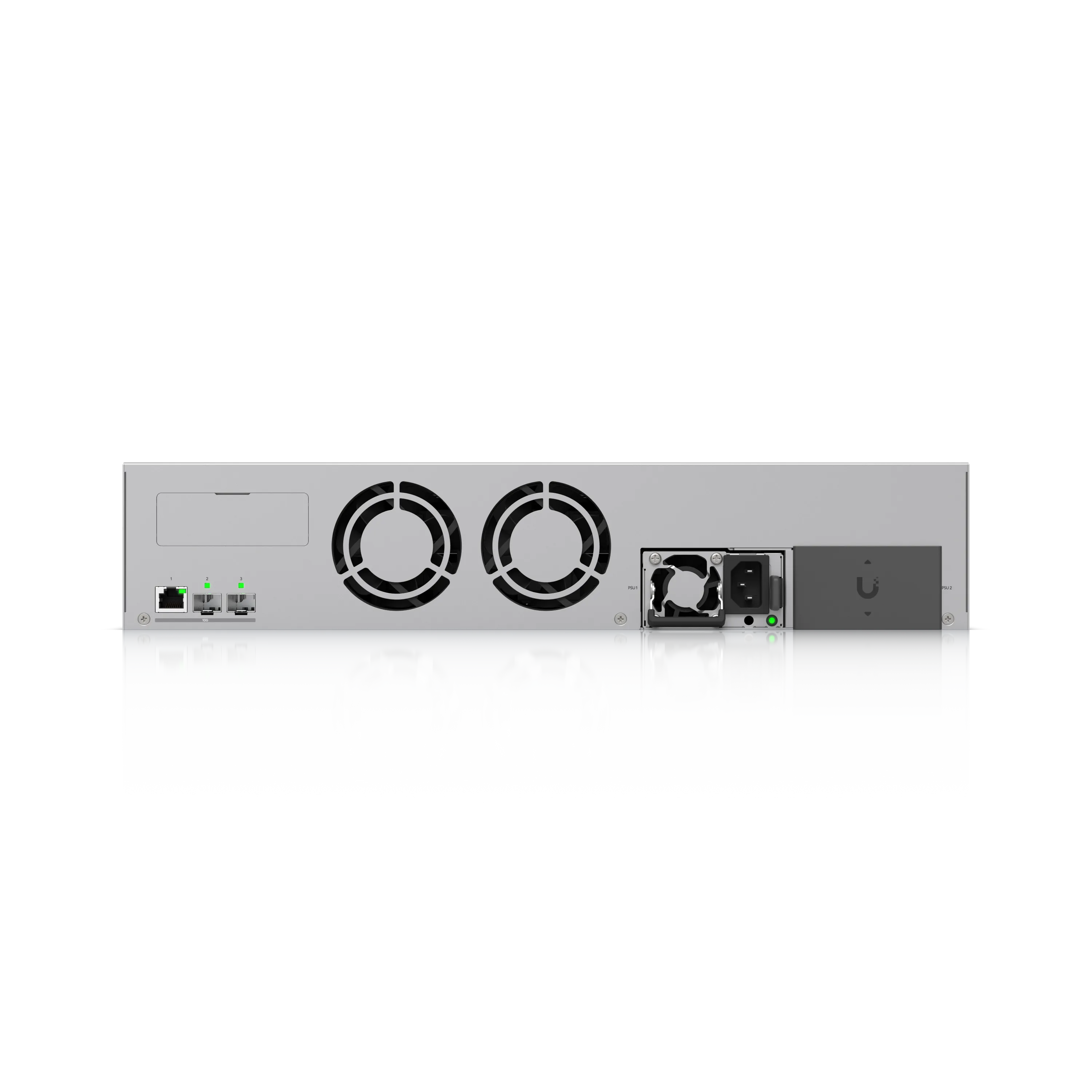

10 Gbps connectivity via two SFP+ and one RJ45 interface
Redundant power supply with two hot-swappable 550W power units
RAID 5, 6, and 10 with hot spare support and multiple RAID groups
Data security through file encryption, snapshots, and cloud backup integration

Performance & Connectivity
A quad-core ARM Cortex-A57 processor clocked at 2.0 GHz and 16 GB of RAM form the computing platform of the UNAS-Pro-8. For network connectivity, two 10G SFP+ ports (10G only) and one 10 GbE RJ45 port are available, supporting speeds from 100 Mbps to 10 Gbps. The combination of NVMe SSD caching and 10 Gbps networking enables fast access and low latency for large volumes of stored data. Management is handled via Ethernet; the device also supports Bluetooth 4.1.

Storage Management & Data Security
The UNAS-Pro-8 supports the NFS and SMB file protocols as well as personal and shared drives. For data organization, RAID 5, RAID 6, and RAID 10 are available, with support for multiple RAID groups and hot spare drives. The NVMe SSD caching feature accelerates access, with a maximum supported NVMe SSD capacity of 4 TiB. File encryption protects stored content, and snapshots allow recovery of previous file states.
The backup strategy includes multiple destinations: backups to remote UNAS systems, CIFS/SMB servers, and cloud services such as Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, and Wasabi. Share links enable controlled file sharing, and Time Machine backups for macOS clients are supported. A client app and user groups are also available.

Chassis & Power Supply
The UNAS-Pro-8 is a 2U rackmount device with an SGCC steel chassis, weighing 11.5 kg. The included rails support four-post racks with a 600 mm depth and square holes (9.5 x 9.5 mm); post depth can vary between 600 and 1066 mm. Two hot-swappable AC/DC 550W power supplies provide redundant power. The maximum power budget for drives is 225W, with a total maximum power consumption of 250W. Status LEDs for Ethernet, SFP+, HDD, and system indicate operational status.

Technical Specifications
Processor: Quad-Core ARM Cortex-A57 @ 2.0 GHz
RAM: 16 GB
Drive bays: (8) 2.5/3.5" HDD/SSD + (2) M.2 NVMe SSD
Max. NVMe SSD capacity: 4 TiB
Network interfaces: (2) 10G SFP+ (10G only), (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M)
File protocols: NFS, SMB
RAID types: RAID 5, RAID 6, RAID 10
RAID groups: Multiple
Hot spare support: Yes
SSD cache: Yes
File encryption: Yes
Snapshots: Yes
Backup destinations: Remote UNAS, CIFS/SMB servers, cloud services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)
Share links: Yes
Time Machine backup: Yes
Client app support: Yes
User groups: Yes
Personal & shared drives: Yes
Power supply: (2) Hot-swappable AC/DC 550W power units
Power redundancy: Yes
Max. drive power budget: 225W
Max. power consumption: 250W
Power input: (2) AC input, hot-swappable power modules
Form factor: Rackmount (2U)
Chassis material: SGCC steel
Rail material: SGCC steel
Dimensions: 442.4 x 480 x 87.4 mm (17.4 × 18.9 × 3.4")
Weight: 11.5 kg (25.35 lb)
Supported rack depth: Rails for 600 mm four-post racks with square holes (9.5 x 9.5 mm), post depth 600–1066 mm
Management: Ethernet
Bluetooth: 4.1
LEDs: Ethernet, SFP+, HDD, System
Operating humidity: 5 to 95% non-condensing
Certifications: IC, SRRC
Warranty: 12 months
