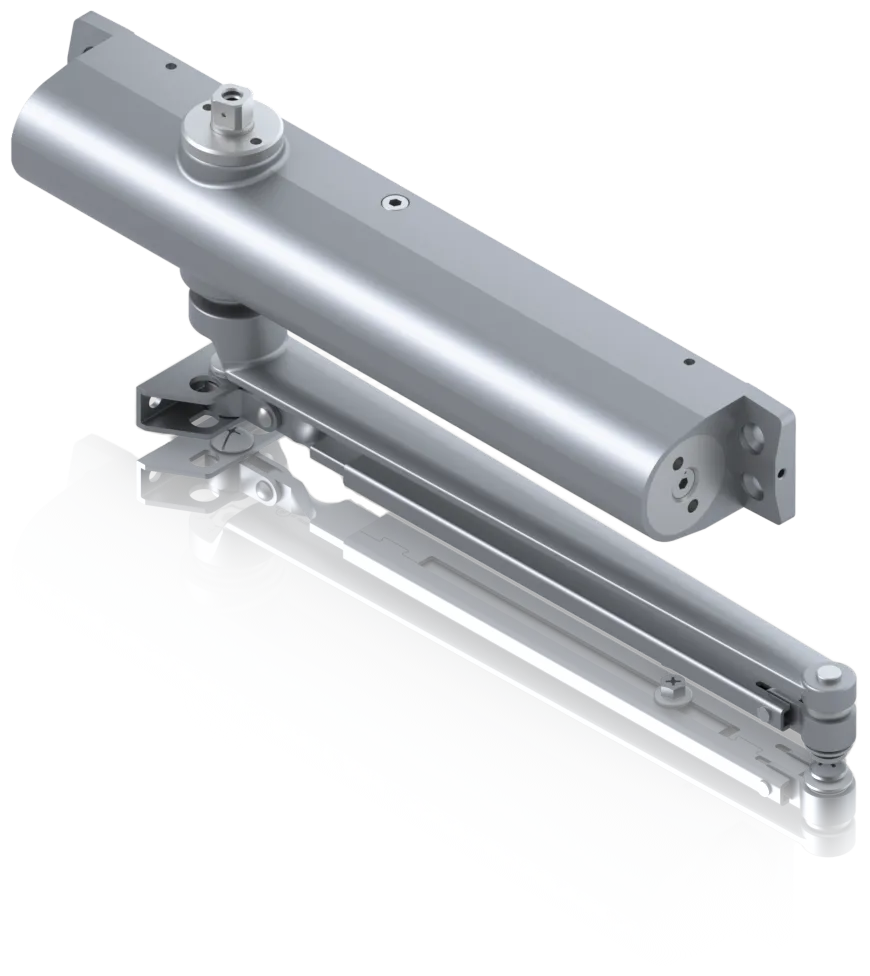

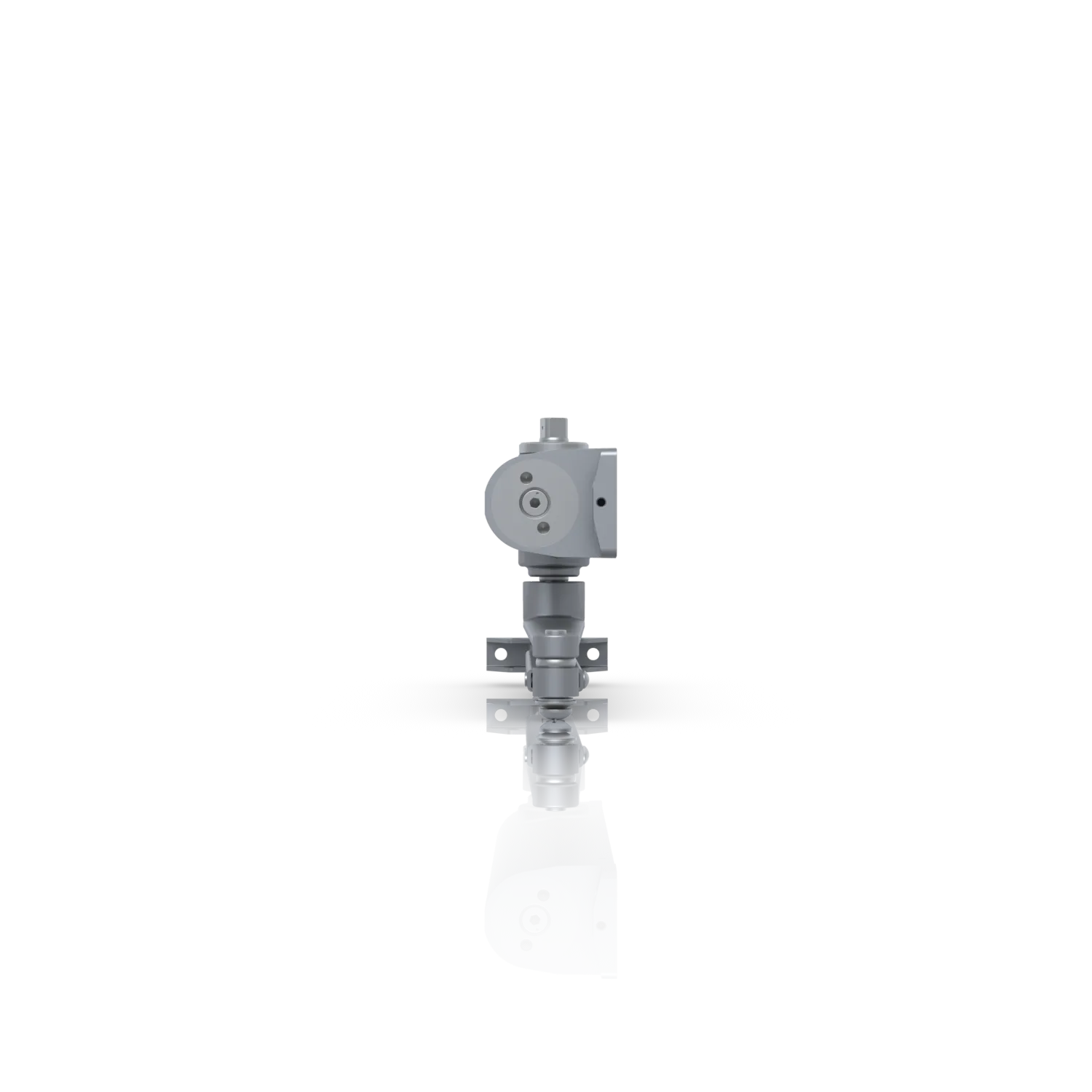

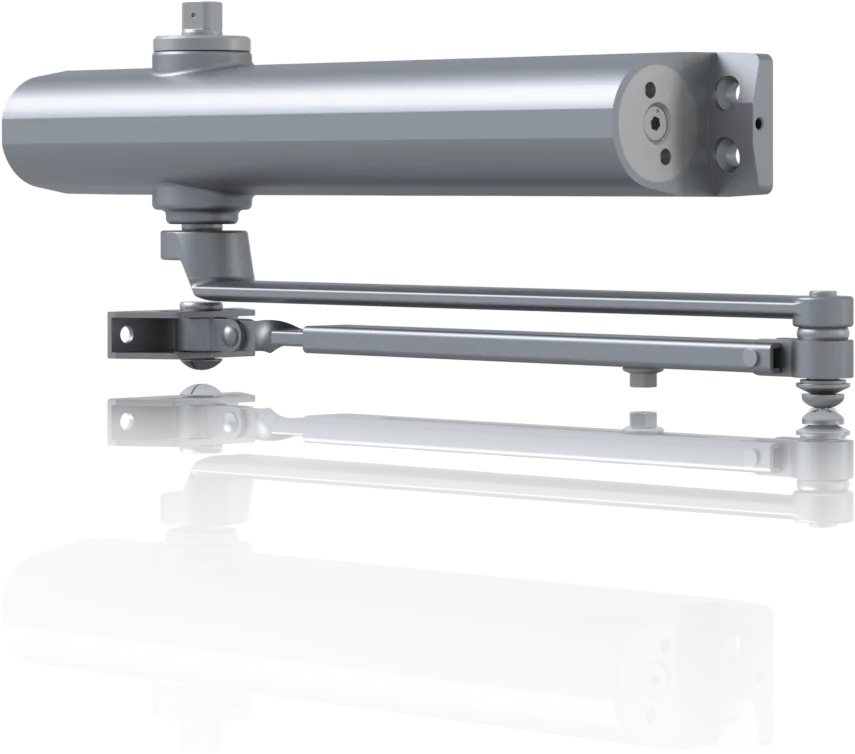

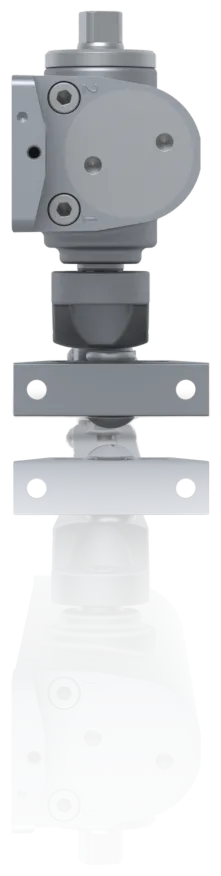

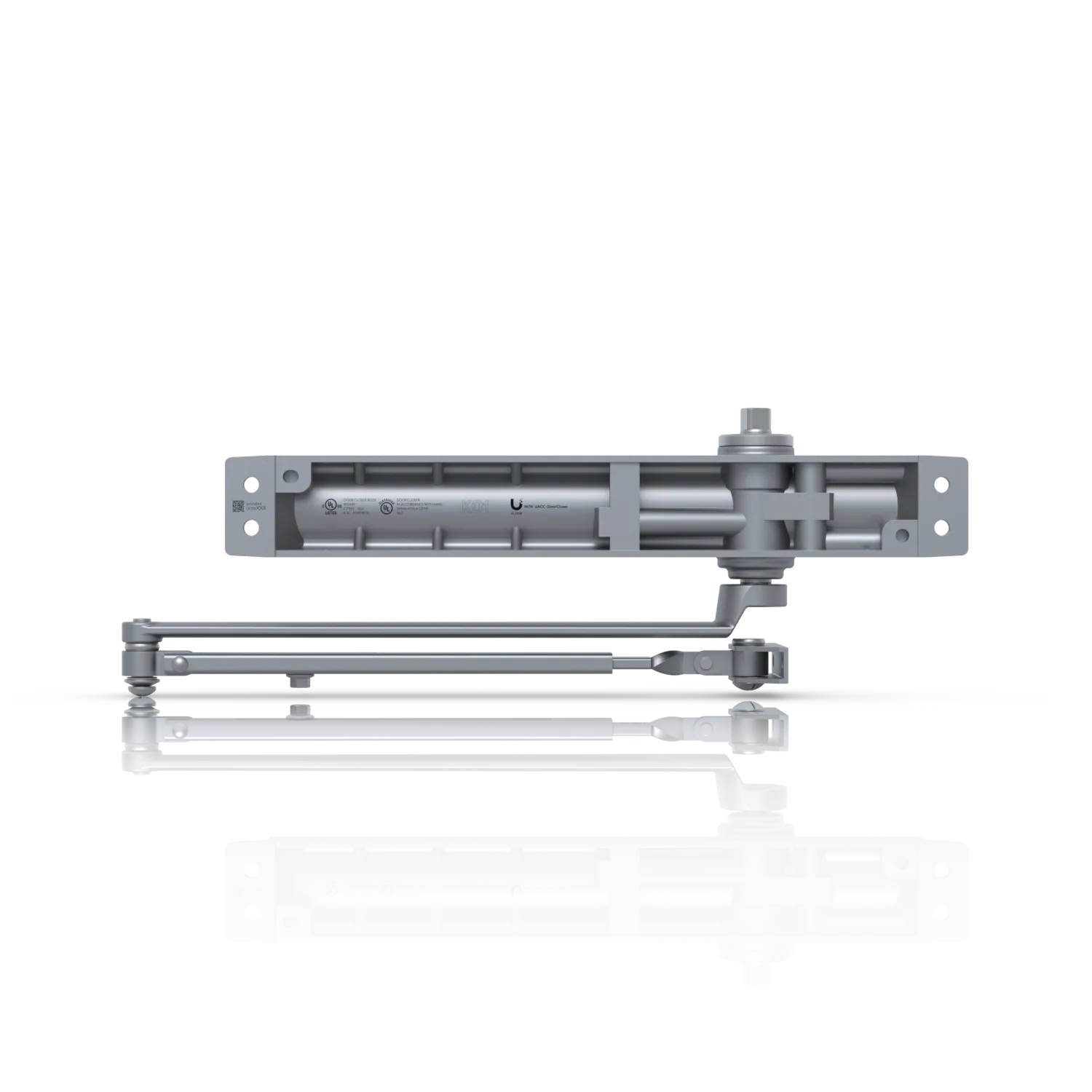

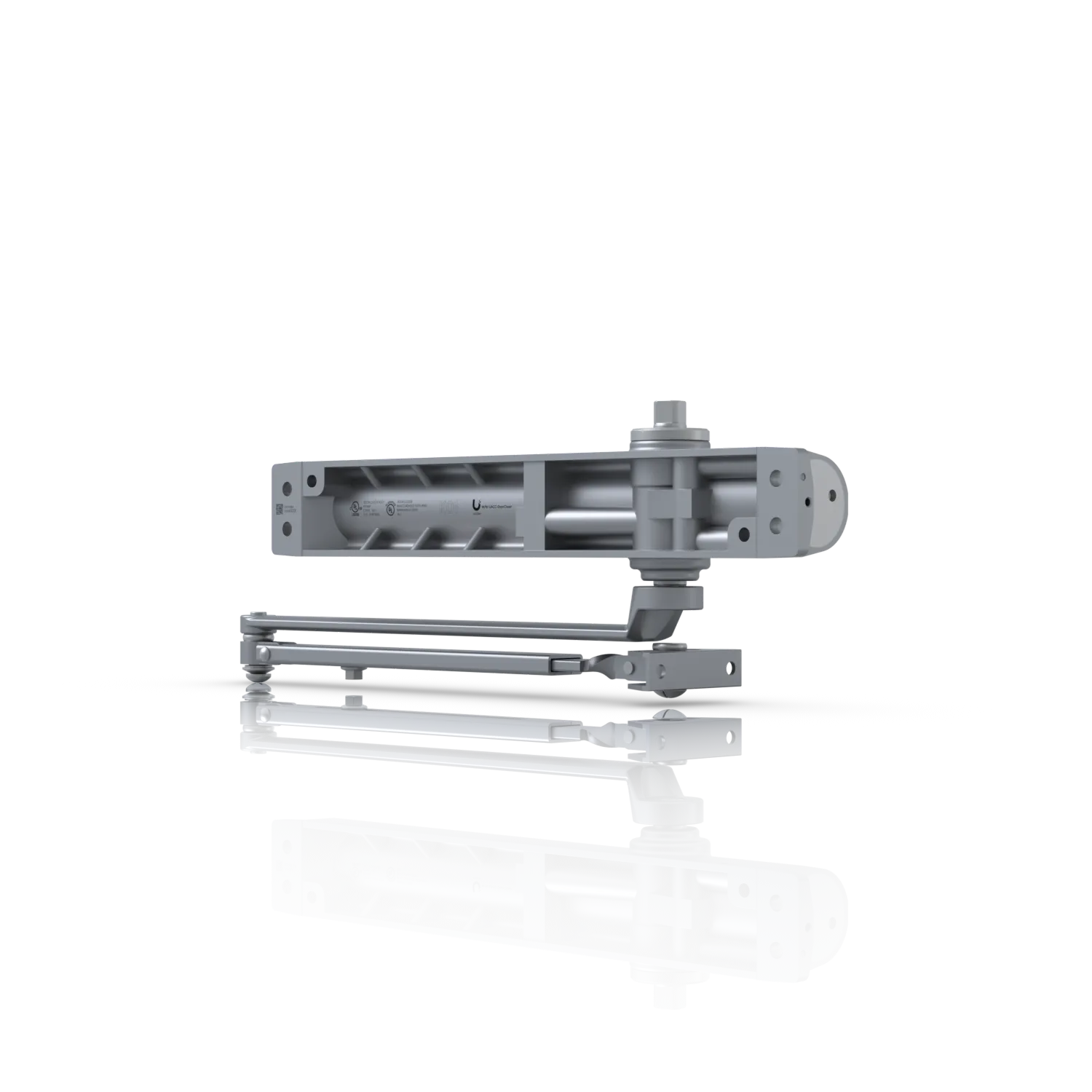

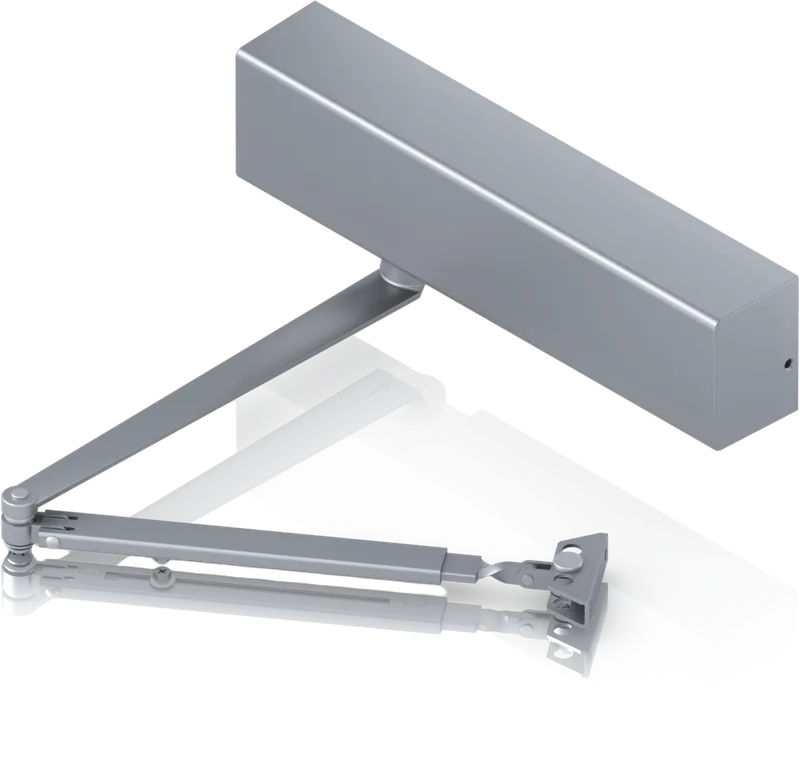

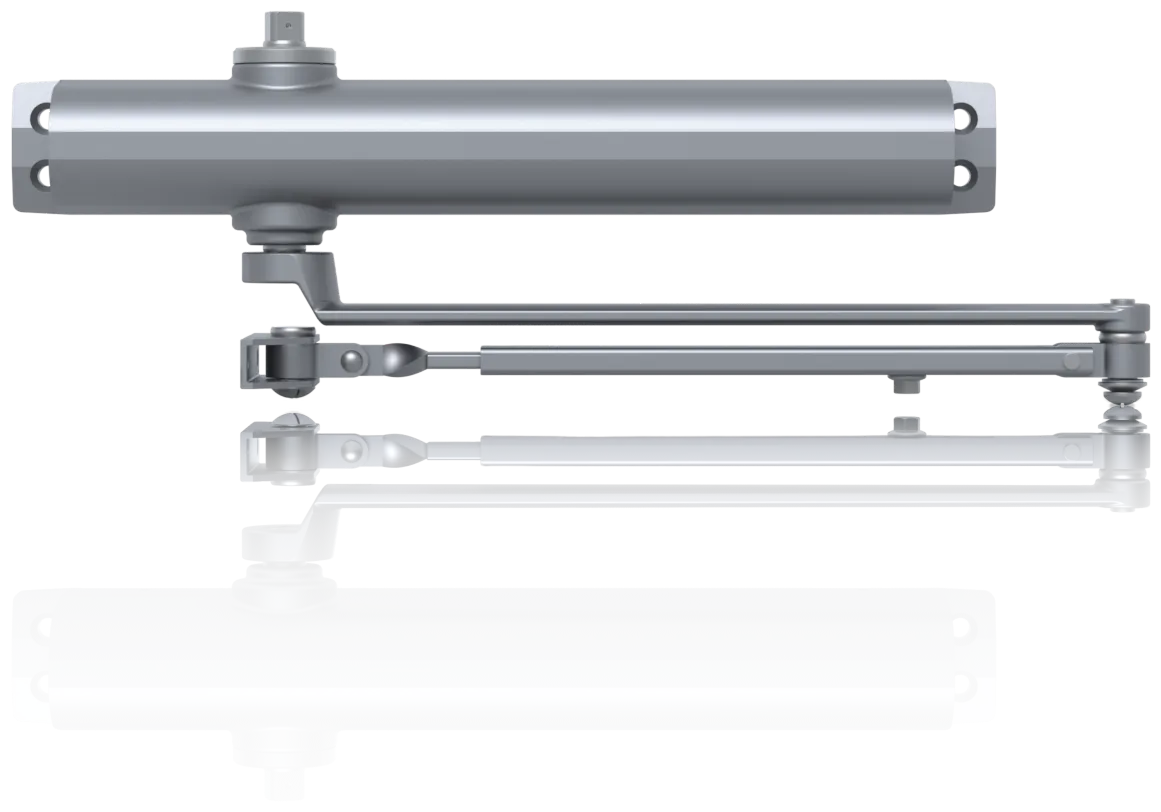

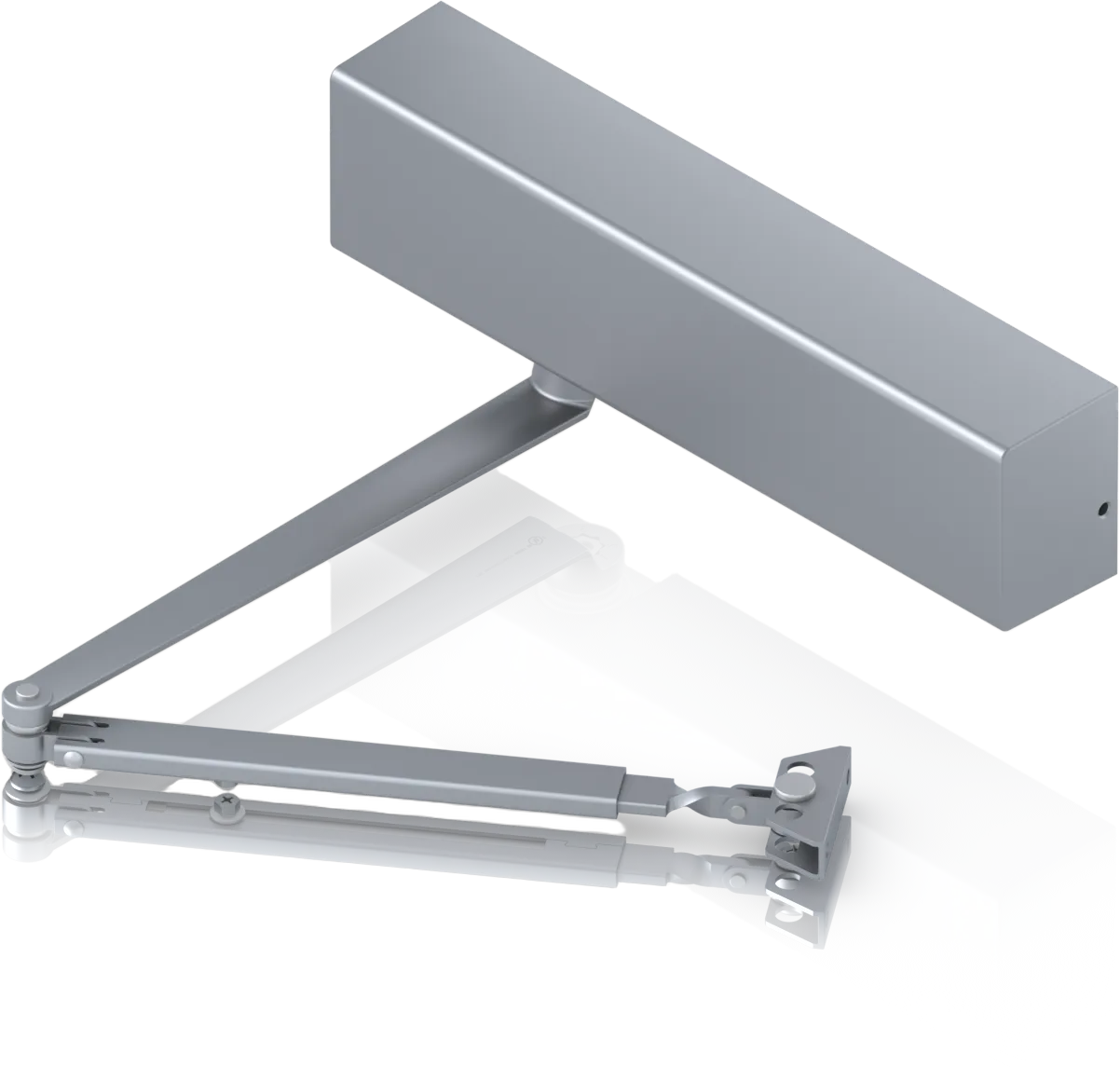

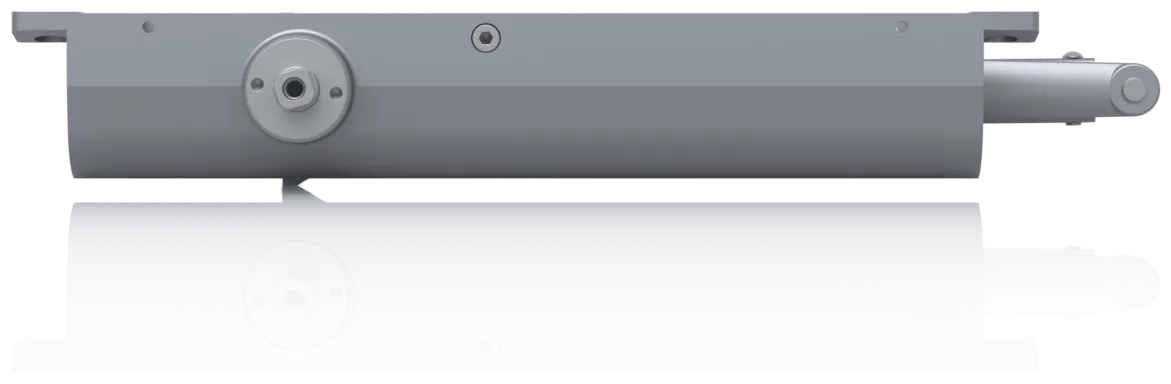

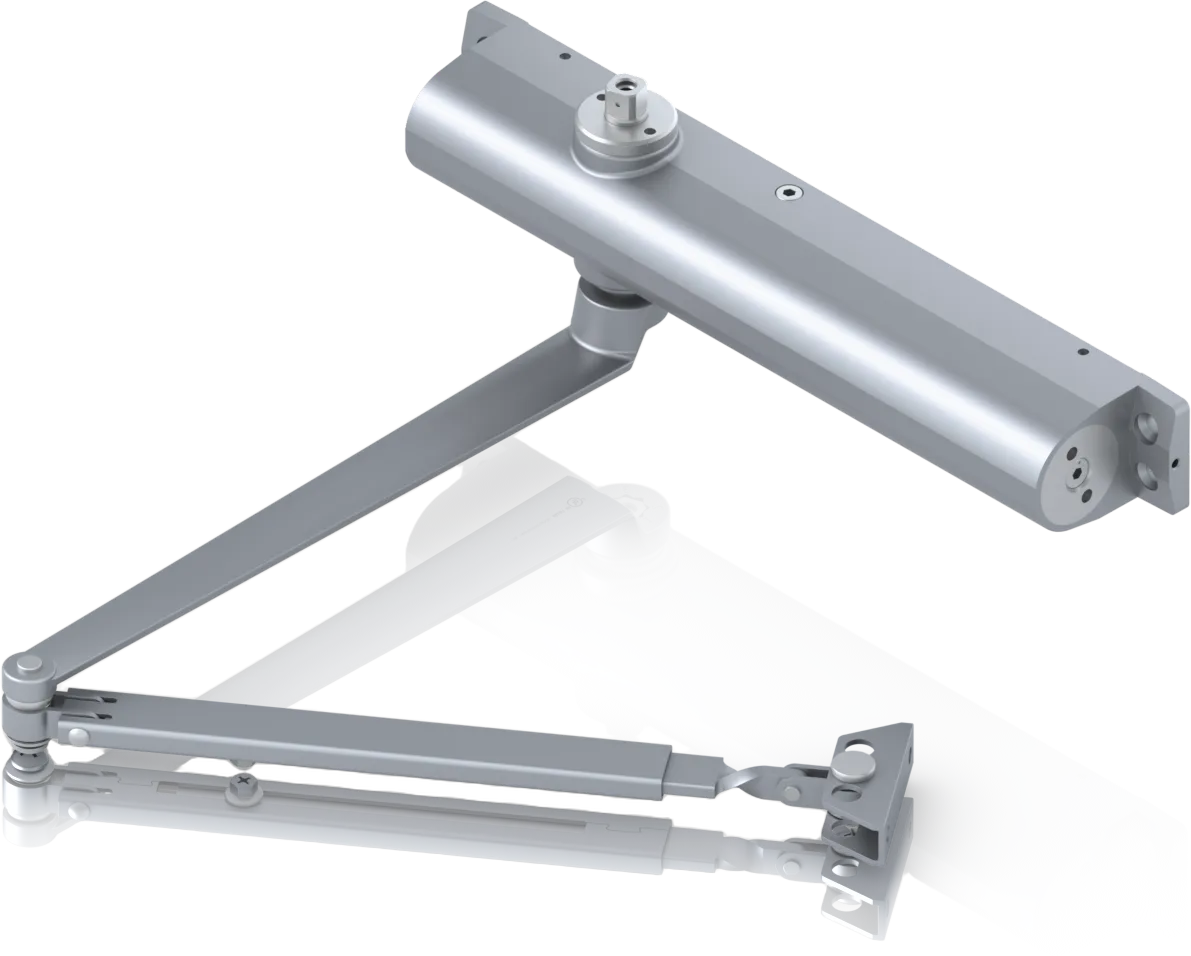

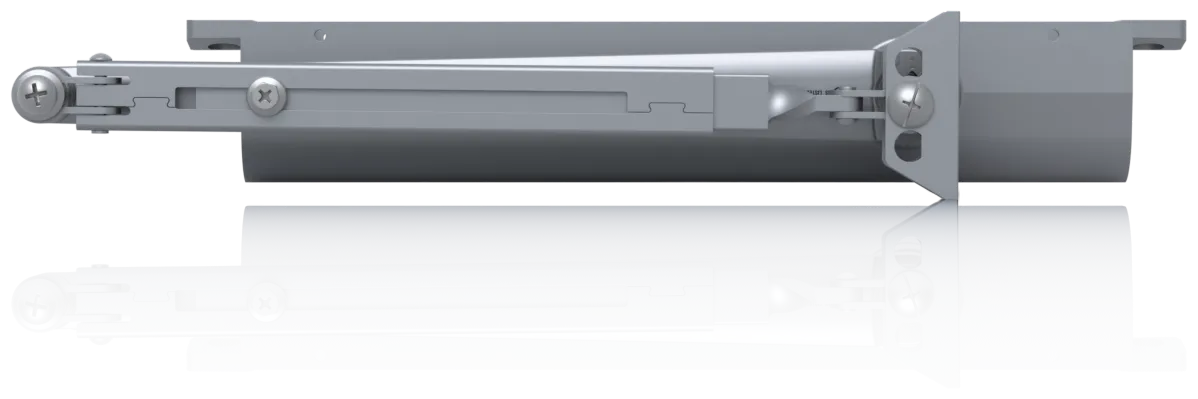

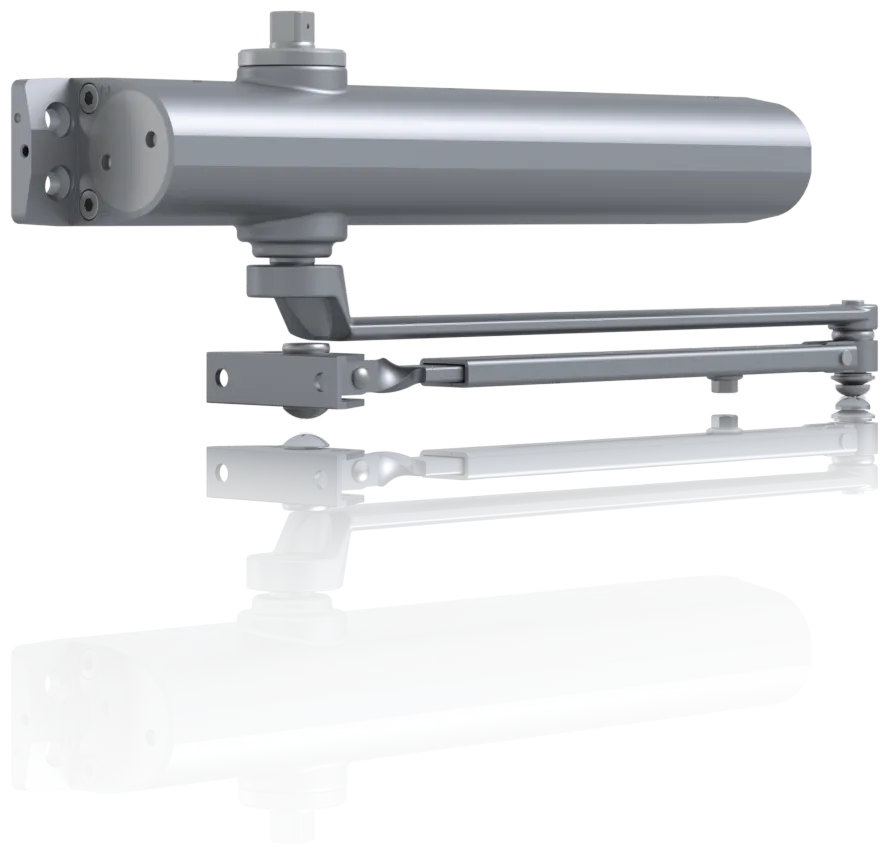

Ubiquiti UniFi Access Door Closer • UACC-DoorCloser

Key Features

• Adjustable power size: EN 2~6
• Adjustable closing and latch speeds
• Adjustable opening speed (backcheck)
• Surface-mounted
• Right/left-hand mounting

Specifications

• Type: Mechanical
• Dimensions – Lock body: 256.5 x 60 x 48 mm (12.9 x 3.5 x 2.1 inch)
• Weight: 3.3 kg
• Housing material – Lock body: aluminum alloy, carbon steel, hot-rolled steel
• Decorative cover: cold-rolled steel
• Max. door opening angle: 180°
• Power size: EN2-6

Application Range

• Standard door mounting on hinge side
• Transom mounting on hinge side (not covered by certification)
• Parallel arm mounting on hinge side (sizes 3-5 only)

Door Width/Weight Capacity

• Standard door/transom mounting:
• Power size 2: 850 mm / 40 kg
• Power size 3: 950 mm / 60 kg
• Power size 4: 1100 mm / 80 kg
• Power size 5: 1250 mm / 100 kg
• Power size 6: 1400 mm / 120 kg
• Parallel arm mounting:
• Power size 3: 950 mm / 60 kg
• Power size 4: 1100 mm / 80 kg
• Power size 5: 1250 mm / 100 kg

Certifications

• CE, EN 1154, EN 1634, AS 1530.4
