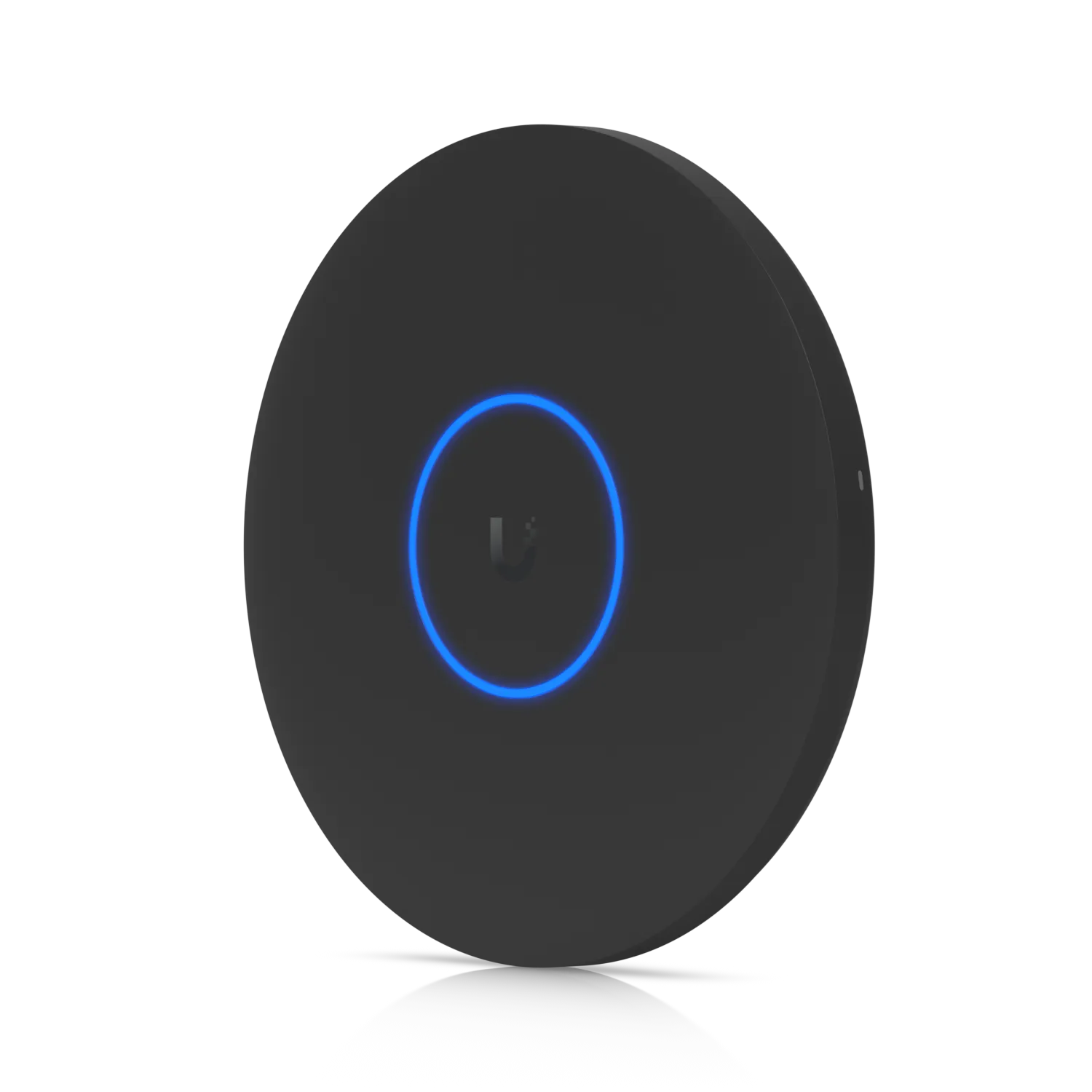

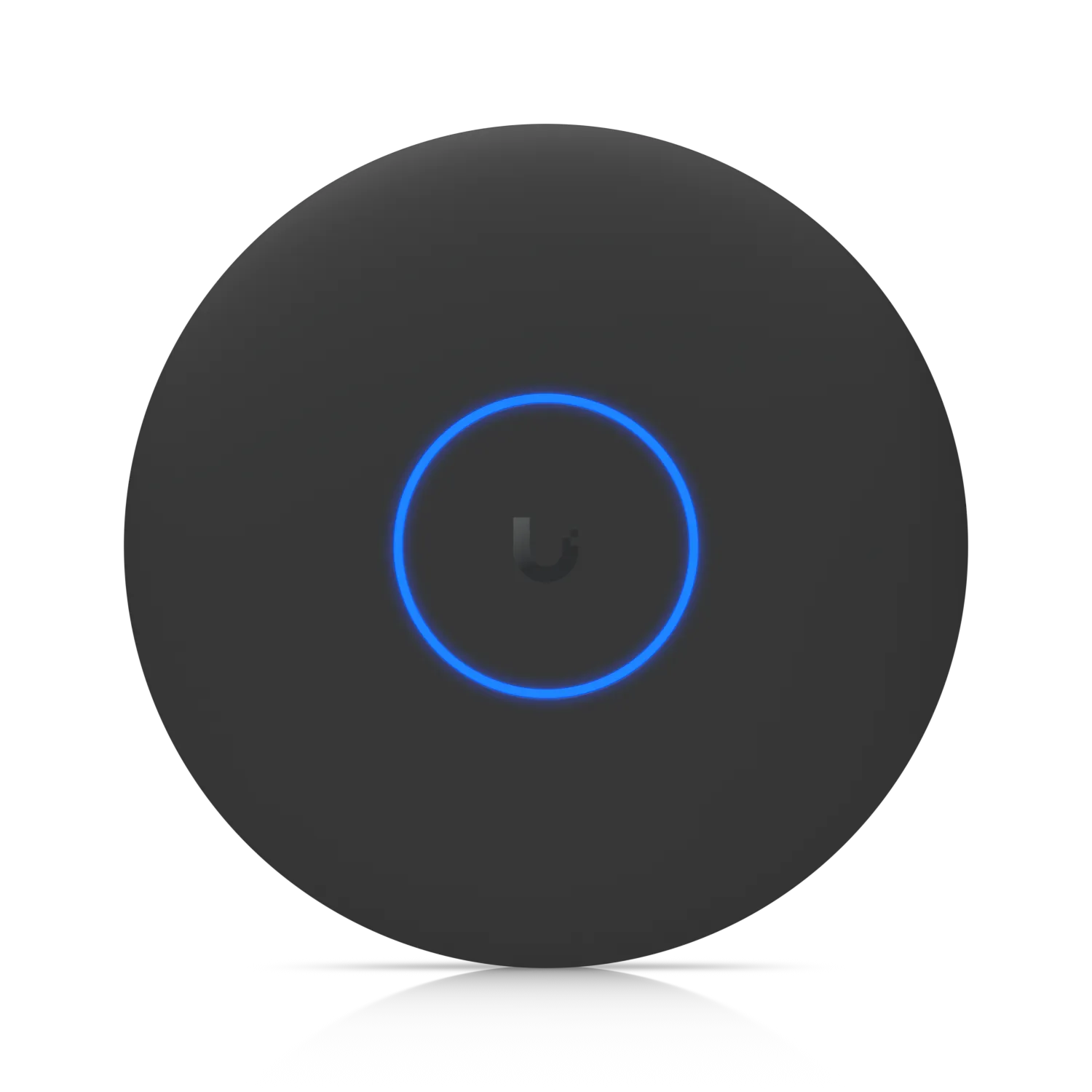

Ubiquiti UniFi AP U7-PRO XGS access point with glowing blue LED ring and sleek black circular design for high-speed Wi-Fi

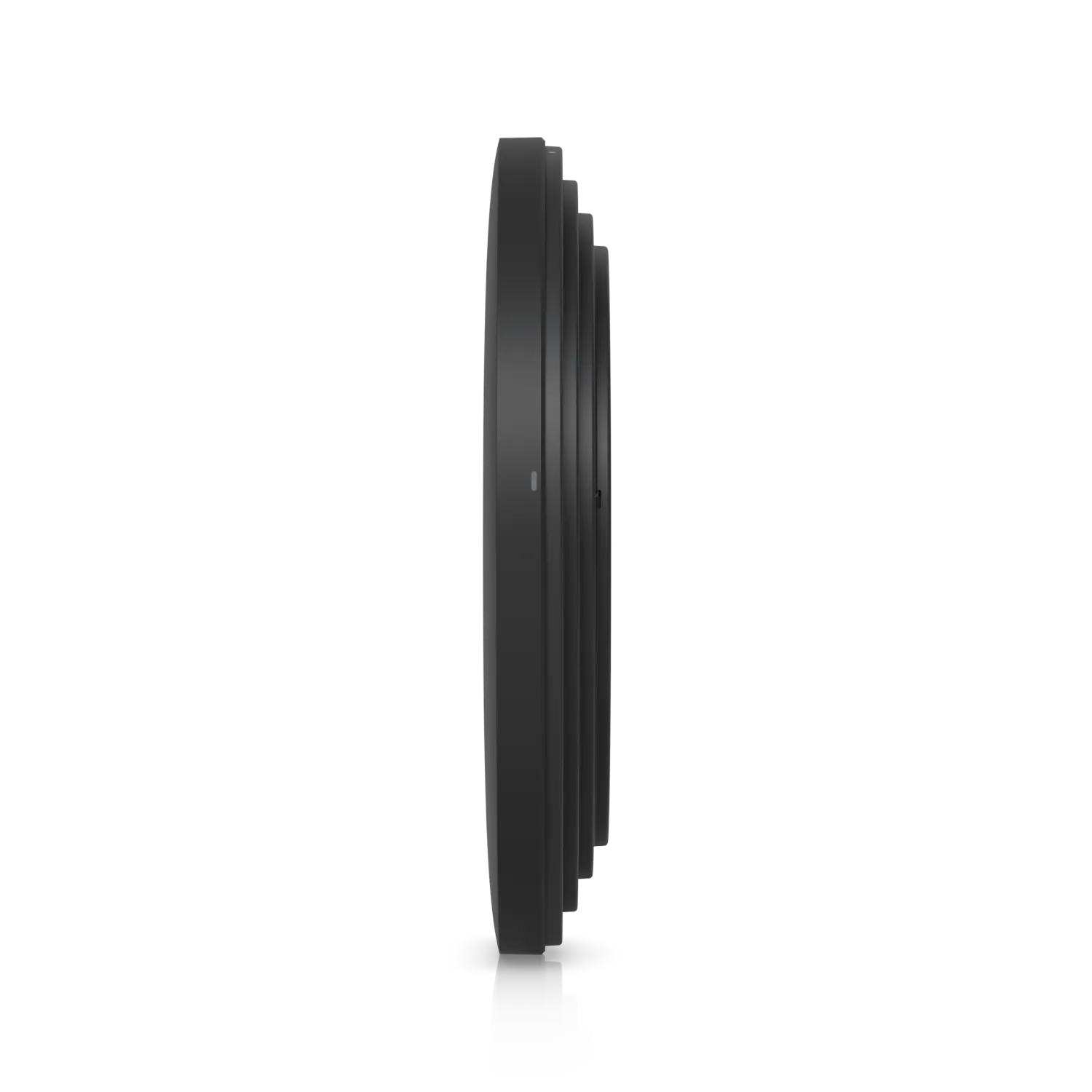

Ubiquiti UniFi AP U7-PRO XGS side view showing matte black circular design with stepped rear housing and LED indicator on a

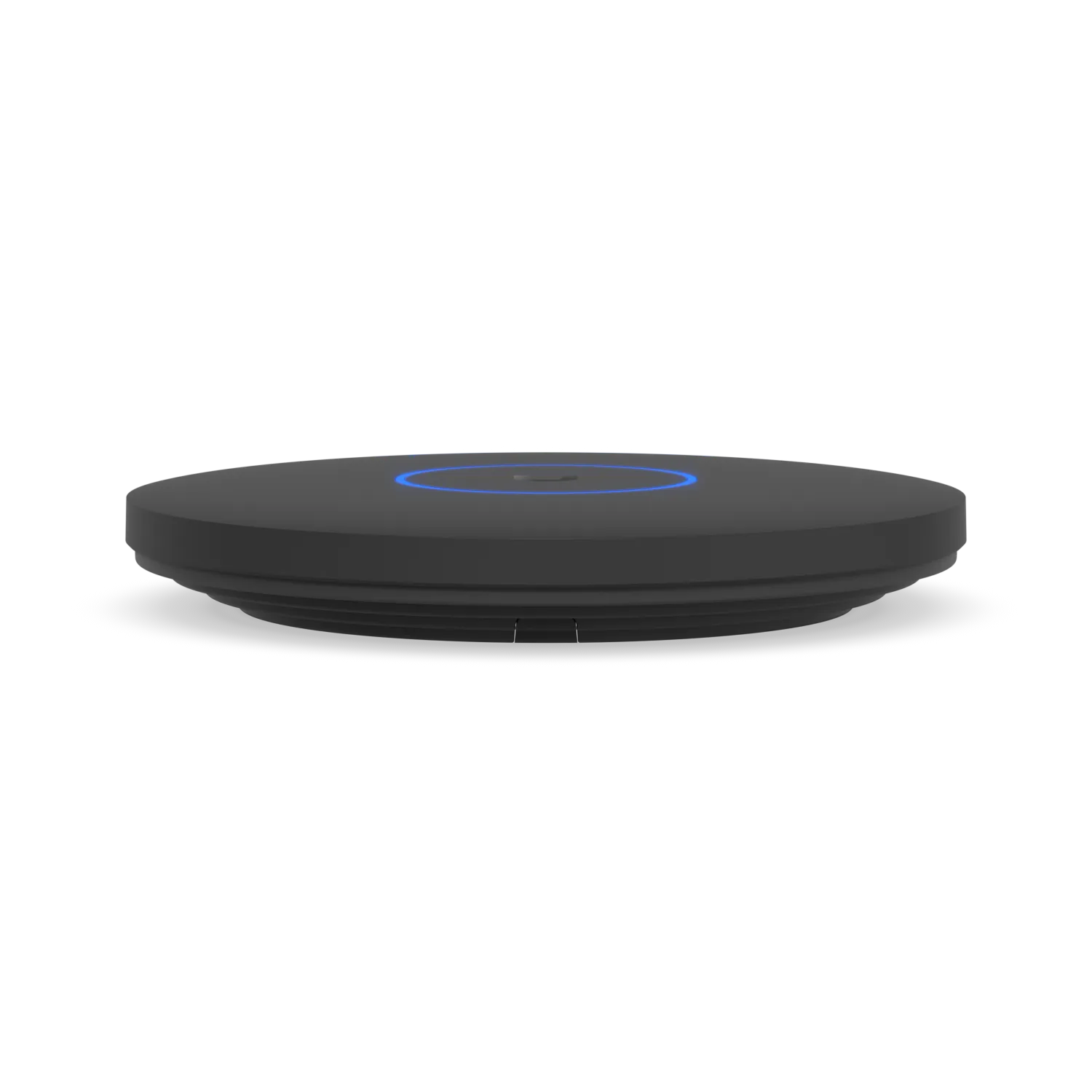

Ubiquiti UniFi AP U7-PRO XGS wireless access point with glowing blue LED ring and ridged black housing displayed against a

Ubiquiti UniFi AP U7-PRO XGS

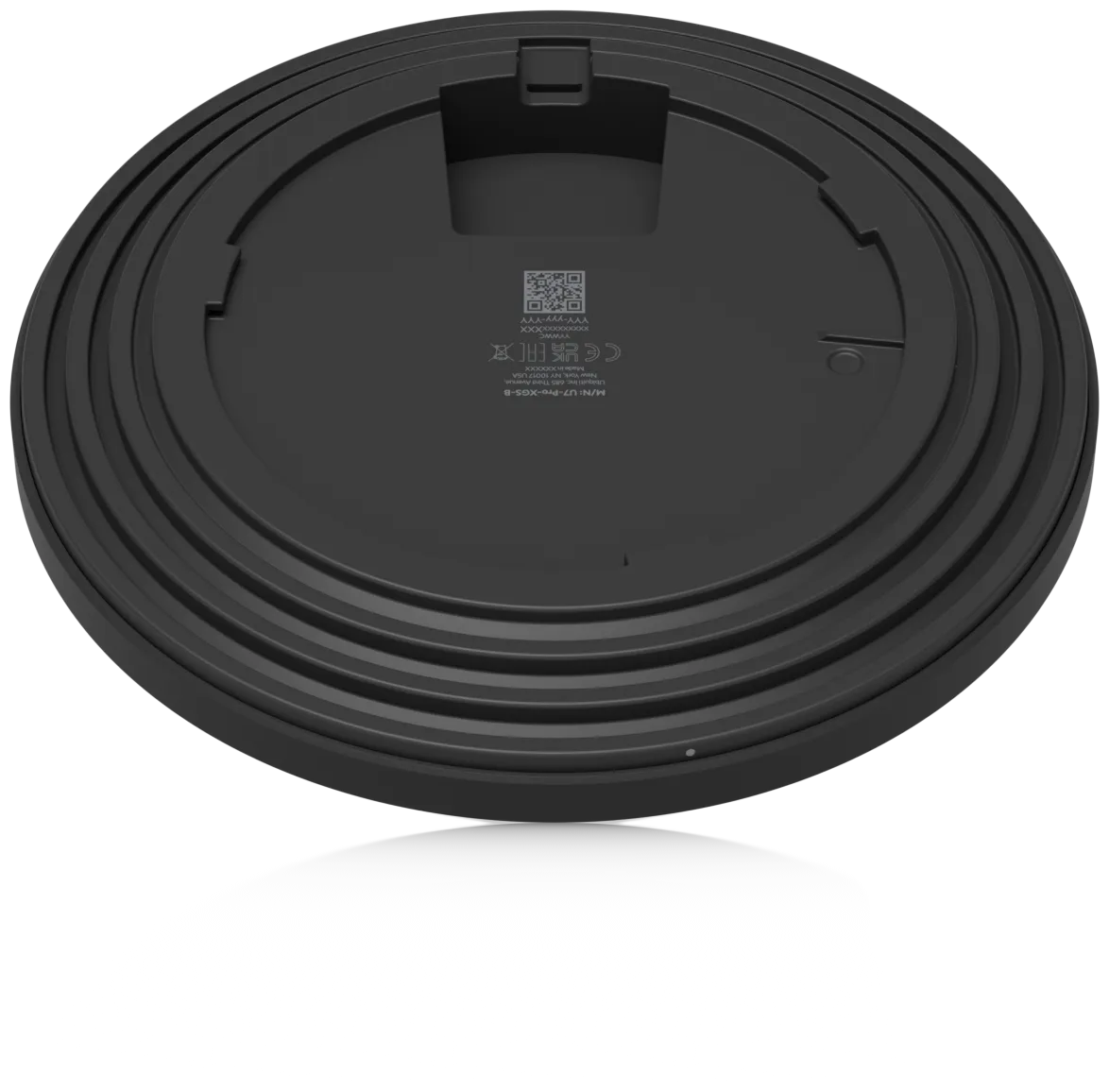

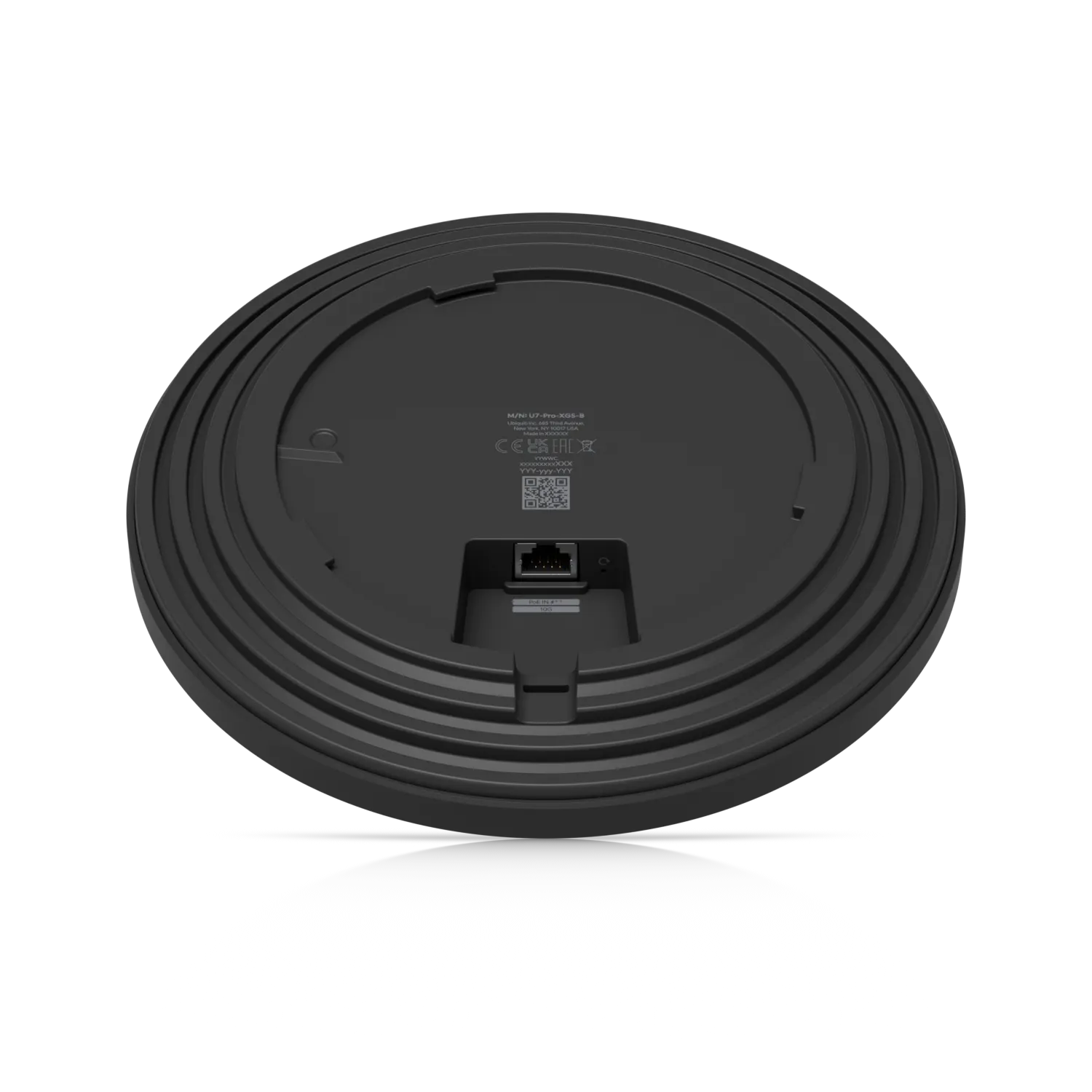

Ubiquiti UniFi AP U7-PRO XGS rear view showing matte black circular design with model text, compliance icons, QR code, and

Ubiquiti UniFi AP U7-PRO XGS

Ubiquiti UniFi AP U7-PRO XGS

Ubiquiti

Ubiquiti UniFi AP U7-PRO XGS

SKU: u7-pro-xgs|1175 ready to ship

Ceiling-mounted 8-stream Wi-Fi 7 access point with dedicated spectral scan radio and 10/5/2.5/1 GbE support.

Categories

Network & Communication Network Devices Wireless Access Points

Highlights:

Wi-Fi 7 with 6 GHz support
8 spatial streams
Real-time spectral analysis for improved channel selection
160 m² (1,750 ft²) coverage
Over 500 connected devices
Powered by PoE++
10 GbE uplink

Technical Specifications:

Mechanical

Dimensions: Ø215 x 32.5 mm (Ø8.5 x 1.3")
Weight: 800 g
Enclosure material: Polycarbonate, aluminum
Mounting material: Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Network interface: (1) 1/2.5/5/10 GbE RJ45 port
Management interface: Ethernet
Power method: PoE++
Power supply: UniFi PoE switch
Supported voltage range: 42.5–57 V DC
Max. power consumption: 29 W
Max. transmit power:

2.4 GHz: 23 dBm
5 GHz: 29 ??dBm
6 GHz: 24 dBm

MIMO:

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
6 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. data rate:

2.4 GHz: 688 Mbps (BW40)
5 GHz: 8.6 Gbps (BW240)
6 GHz: 5.7 Gbps (BW320)

Antenna gain:

2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 6 dBi

LEDs: White/Blue
Button: Factory reset
Mounting: Wall, ceiling (included)

Environmental

Operating temperature: -30 to 40 °C (-22 to 104 °F)
Operating humidity: 5 to 95% non-condensing

Certifications: CE, FCC, IC

Software

Wi-Fi standards: 802.11a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting, guest traffic isolation (supported)
Concurrent clients: 500+
Supported data rates:

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (Wi-Fi 7):

5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
6 GHz: 7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
