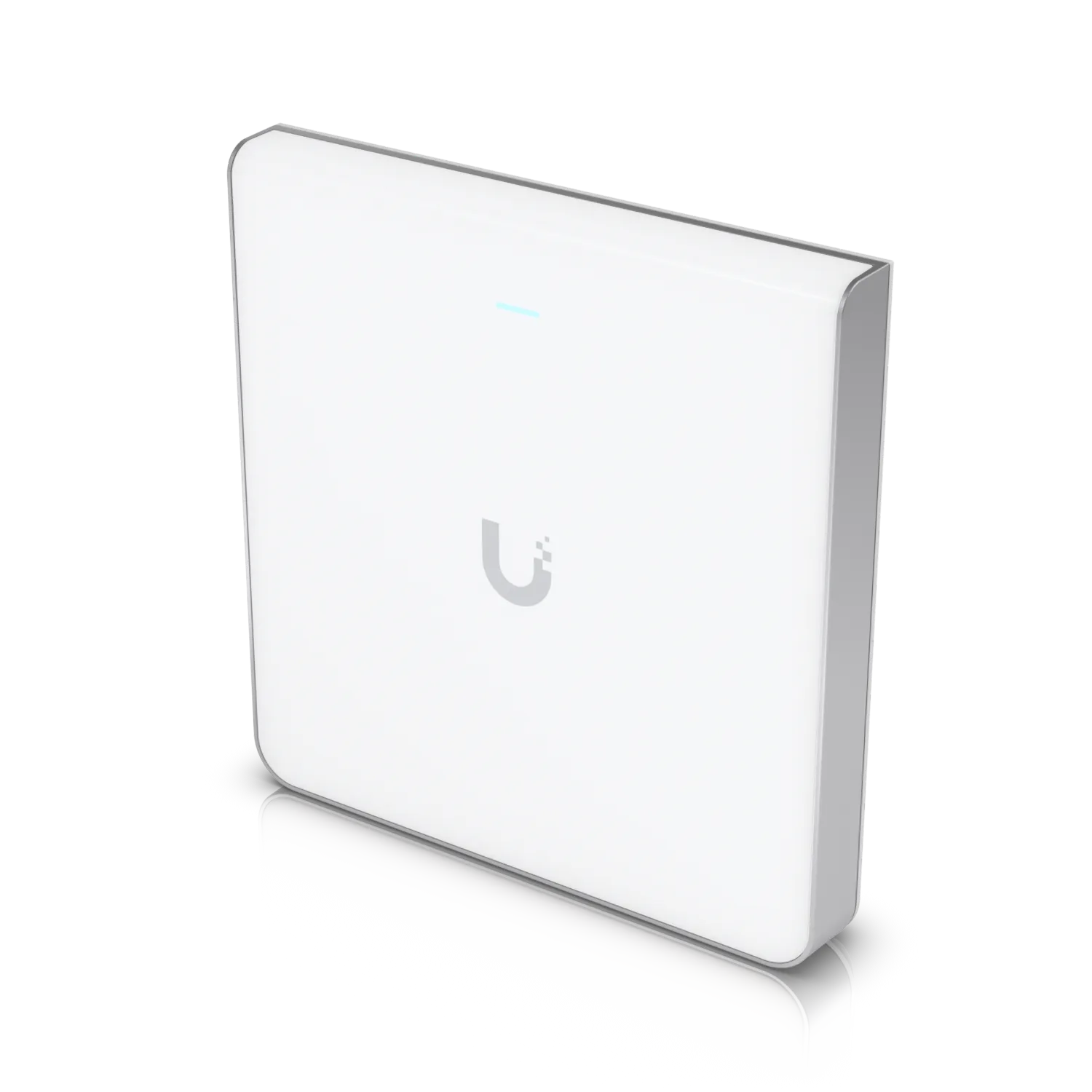

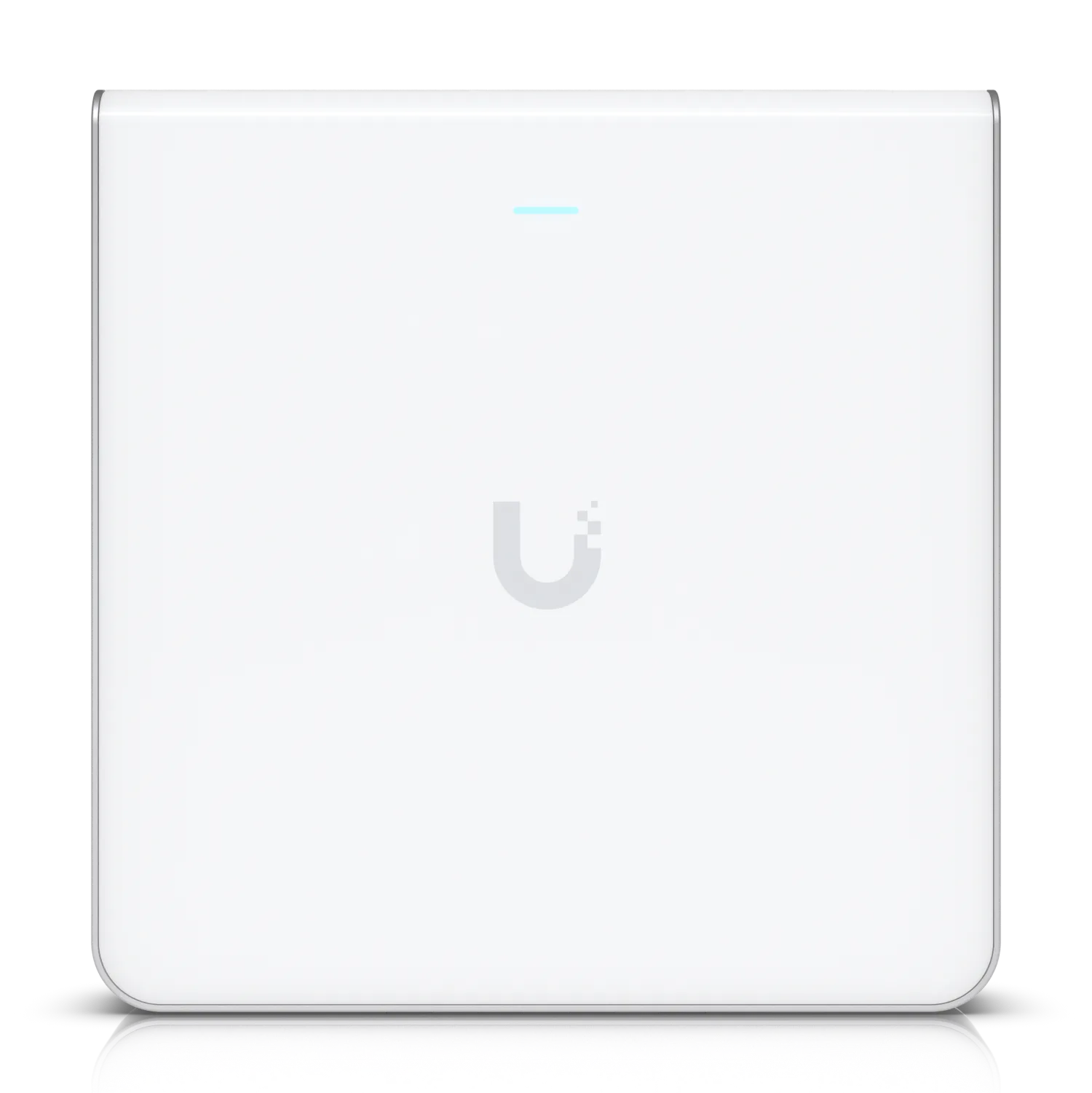

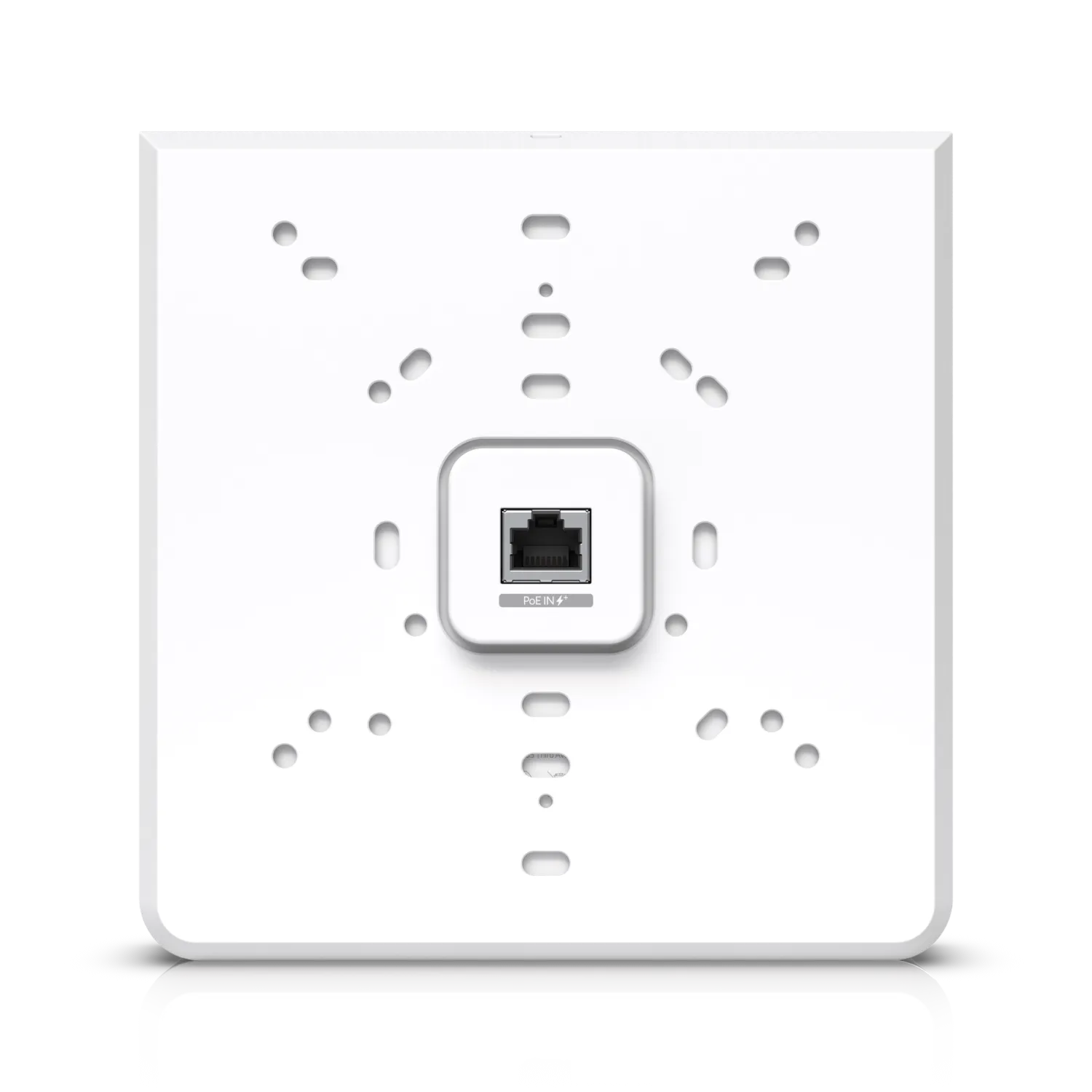

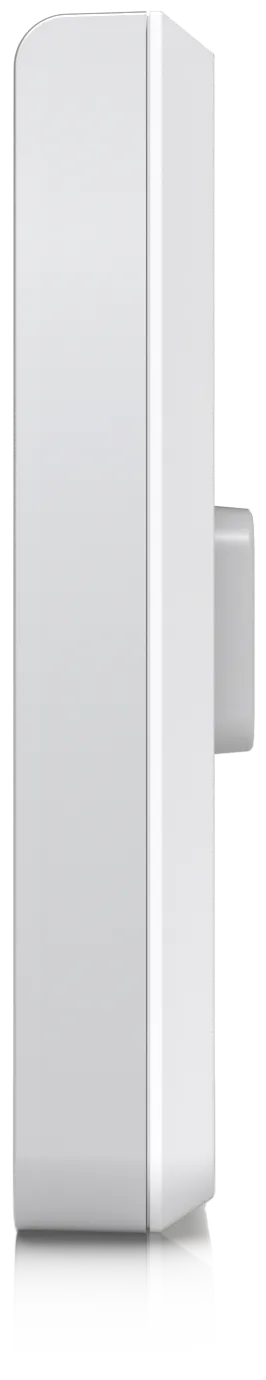

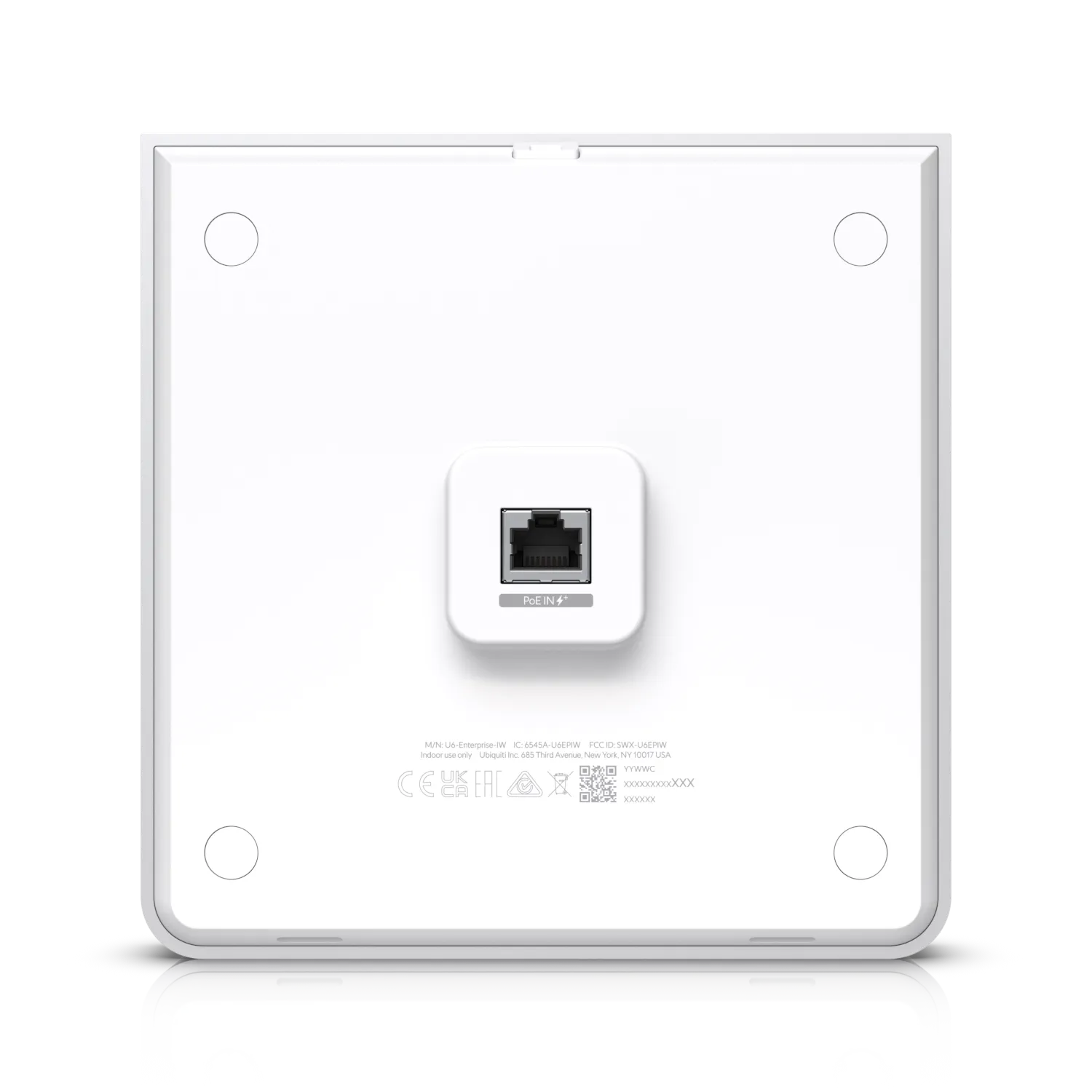

Ubiquiti UniFi AP U6-Enterprise-IW WiFi6 ohne PoE-Injektor

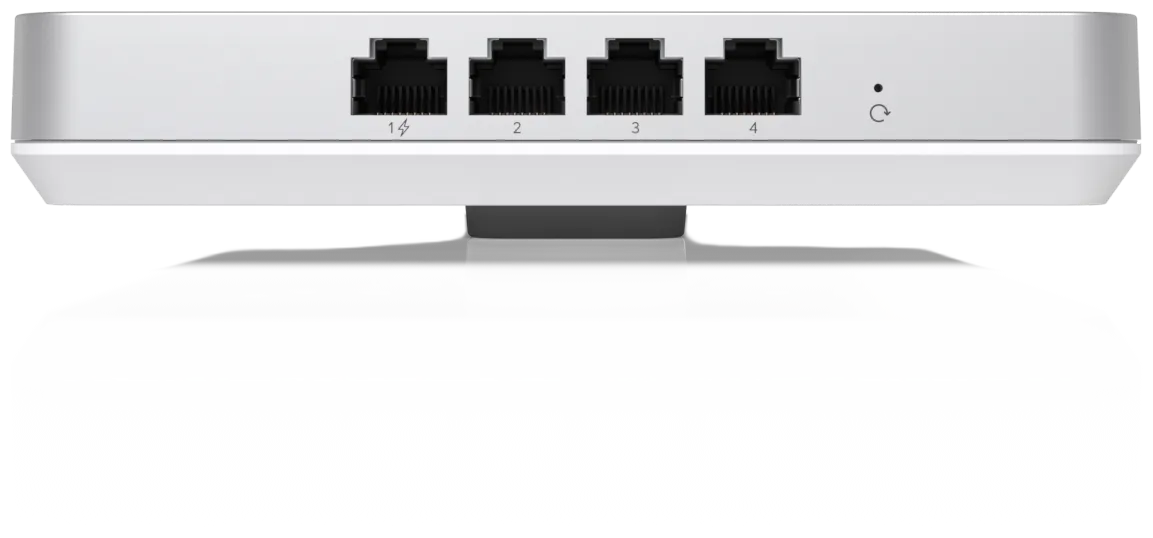

Slim, wall-mounted WiFi 6E access point with integrated four-port switch for high-density office networks. 115 m² (1.250 ft²) coverage. Over 600 connected devices. WiFi6E (4x4 MIMO). Powered via PoE+/PoE++*. (4) GbE ports with (1) PoE output. 2,5-GbE uplink. *PoE++ required to use the PoE output. Technical specifications. Mechanical. Dimensions. 159,7 x 156,7 x 33,8 mm (6,3 x 6,2 x 1,3"). Weight. 884 g (1,95 Pfund). Housing materials. Polycarbonate, aluminum. Mounting material. Aluminum. Hardware. Network interface. (1) data input: 2,5-GbE RJ45 port. (4) data output: GbE RJ45 ports. Management interface. Ethernet. -Bluetooth. PoE interface. (1) PoE+ input. (1) PoE output. Power method. PoE+. PoE++ (required for PoE output). Power supply. UniFi PoE switch. Max. power consumption. Without PoE output: 21 W. Max. PoE wattage per port by PSE. 15,4 W. Supported voltage range. 44–57 V DC. Max. transmit power. 2,4 GHz. 5–7 GHz. 22 dBm. 26 dBm. MIMO. 2,4 GHz. 5 GHz. 6 GHz. 2 x 2 (UL MU-MIMO). 4 x 4 (DL/UL MU-MIMO). 4 x 4 (DL/UL MU-MIMO). Throughput rate. 2,4 GHz. 5 GHz. 6 GHz. 573,5 Mbit/s. 4,8 Gbit/. s 4,8 Gbit/s. Antenna gain. 2,4 GHz. 5 GHz. 6 GHz. 4 dBi. 5,8 dBi. 5,8 dBi. LED. White Blue. Button. Restore factory settings. Operating temperature. -30 to 60 °C (-22 to 140 °F). Operating humidity. 5 to 95 % non-condensing. Certifications. CE, FCC, IC. Software. WLAN standards. 802.11a/b/g. WiFi 4/WiFi 5/WiFi 6/WiFi 6E. Wireless security protocols. WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3). BSSID. 8 per radio. VLAN. 802.1Q. Advanced QoS. Per-user rate limiting. Guest traffic isolation. Supported. Simultaneous client support. 600+. Zero-wait DFS. Yes*. *Will be supported in upcoming firmware versions. Supported data rates. 802.11a. 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s. 802.11b. 1, 2, 5,5, 11 Mbit/s. 802.11g. 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s. 802.11n (WiFi 4). 6,5 Mbit/s to 600 Mbit/s (MCS0 – MCS31, HT 20/40). 802.11ac (WiFi 5). 6,5 Mbit/s to 3,4 Gbit/s (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160). 802.11ax (WiFi 6/6E). 7,3 Mbit/s to 4,8 Gbit/s (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160). Application requirements. UniFi Network. Version 7.2.85 and later.
