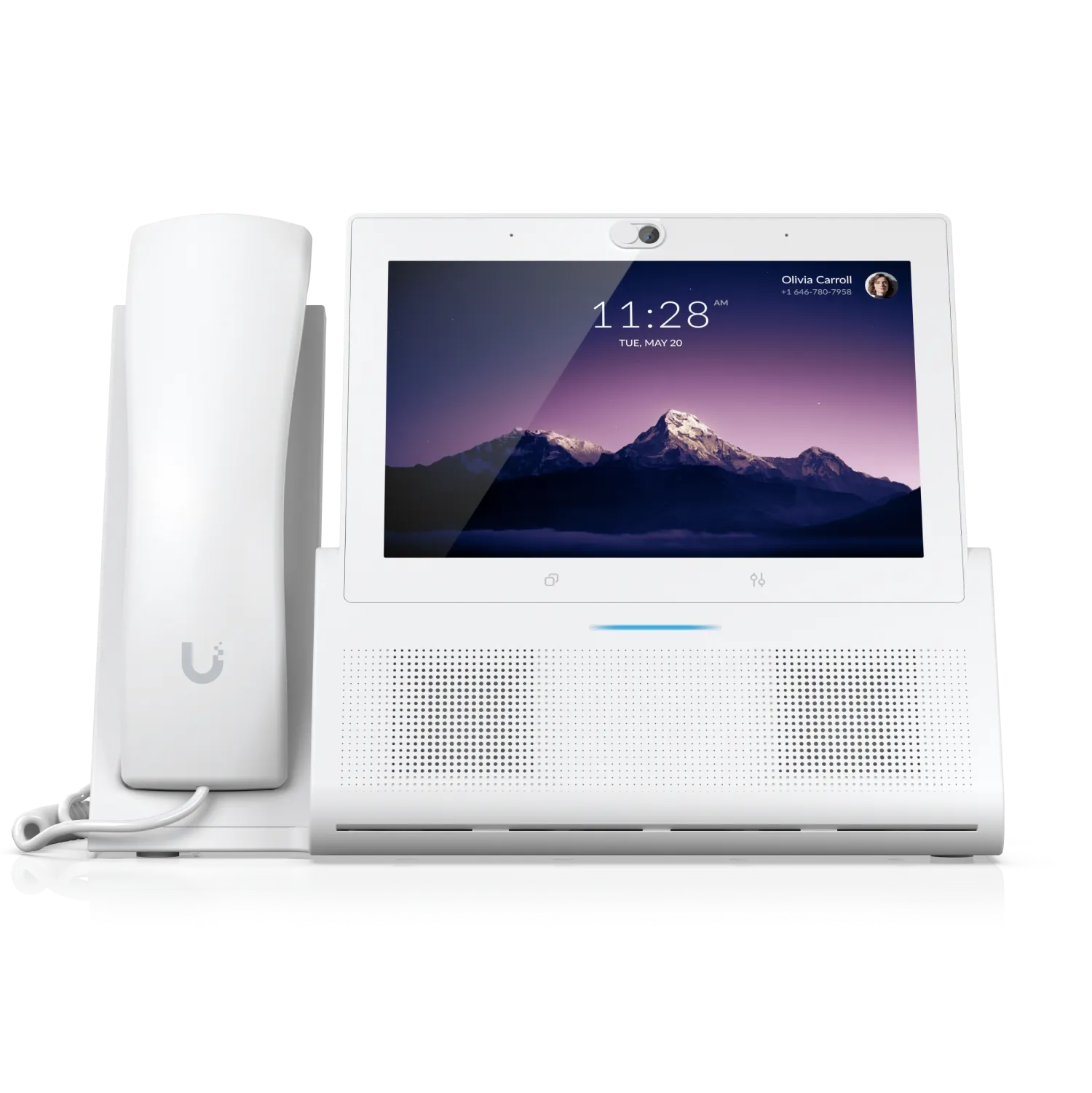

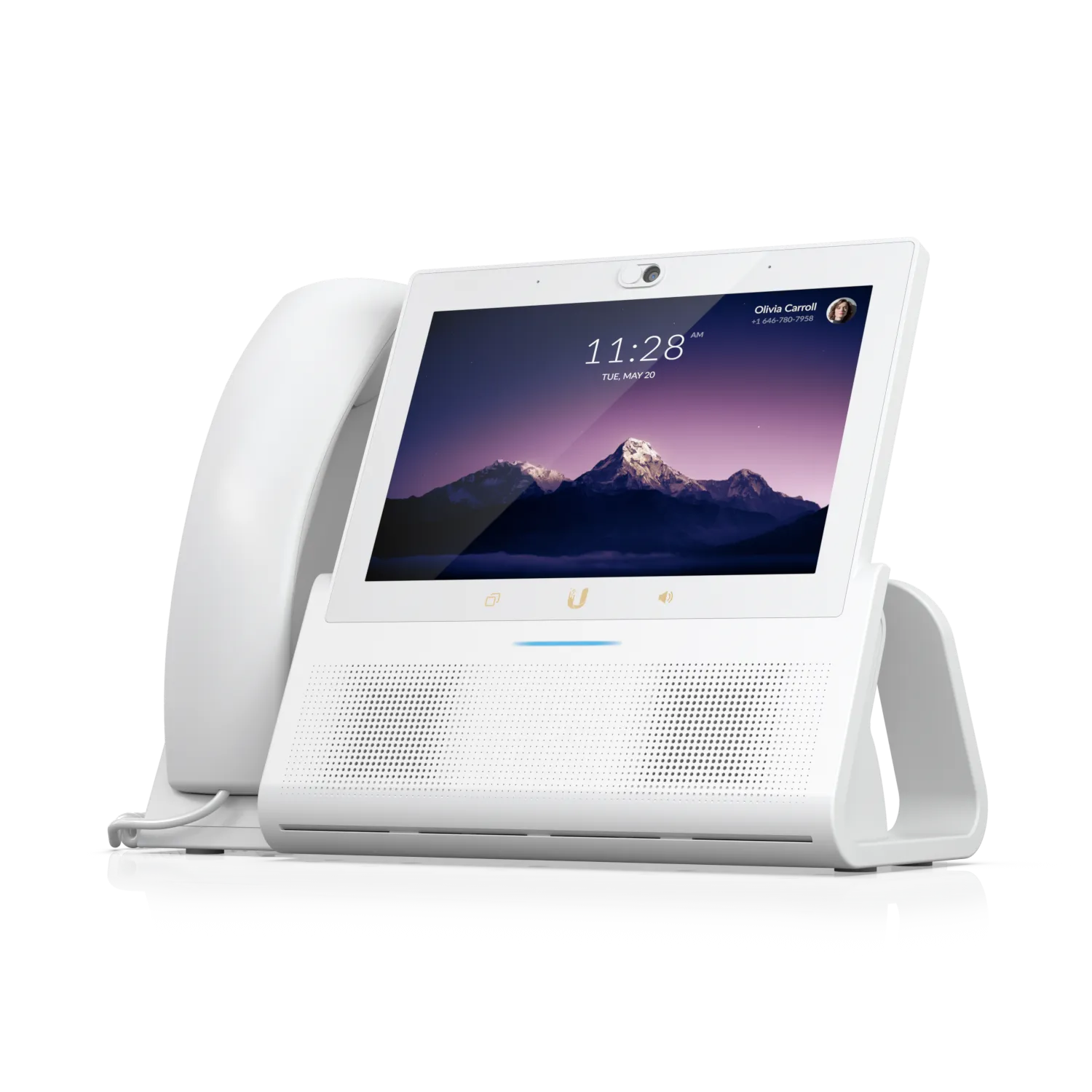

Ubiquiti UTP-TouchMax-White-U Phone Touch Max

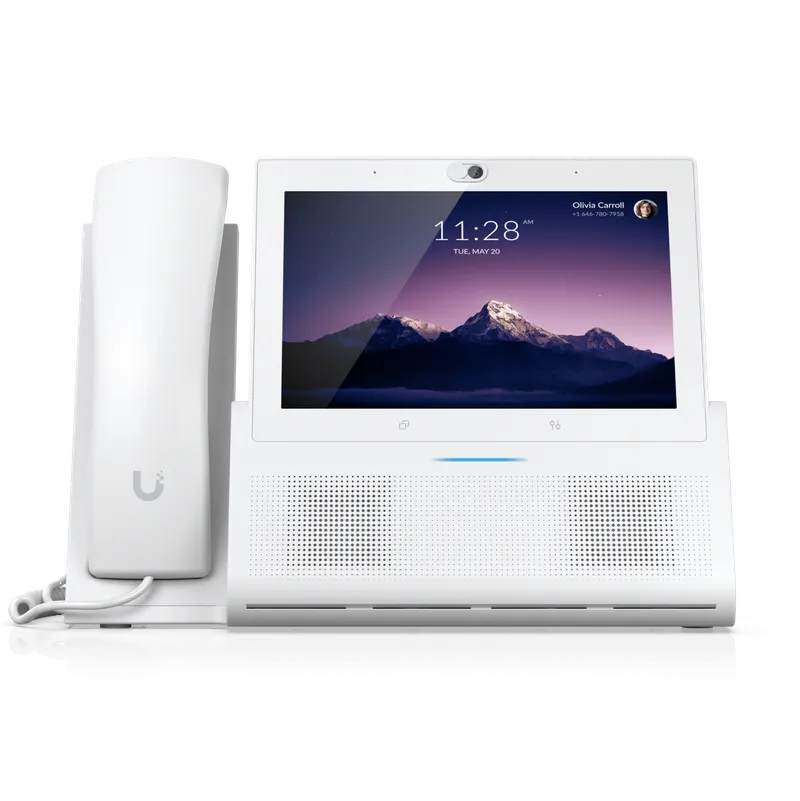

Ubiquiti Touch Max is a premium desktop IP phone featuring a 7-inch HD touchscreen, an octa-core ARM Cortex-A53 processor, and a built-in 5-megapixel camera with a privacy shutter, designed for enterprise communications within the UniFi Talk ecosystem.

Key Benefits
Touchscreen: 178 mm (7") diagonal, 1280 x 800 HD resolution with fingerprint-resistant coating
Built-in Camera: 5 MP, 2592 x 1944, with integrated privacy shutter
Audio System: dual omnidirectional MEMS microphones and two 3 W speakers for high-quality hands-free calling
Wireless Connectivity: Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2 for flexible integration
NFC Module: tag reading at 13.56 MHz with support for MIFARE and ISO 14443/15693
PoE+ Power: via USB Type-C port with a maximum power consumption of 15 W
Performance and Computing Platform

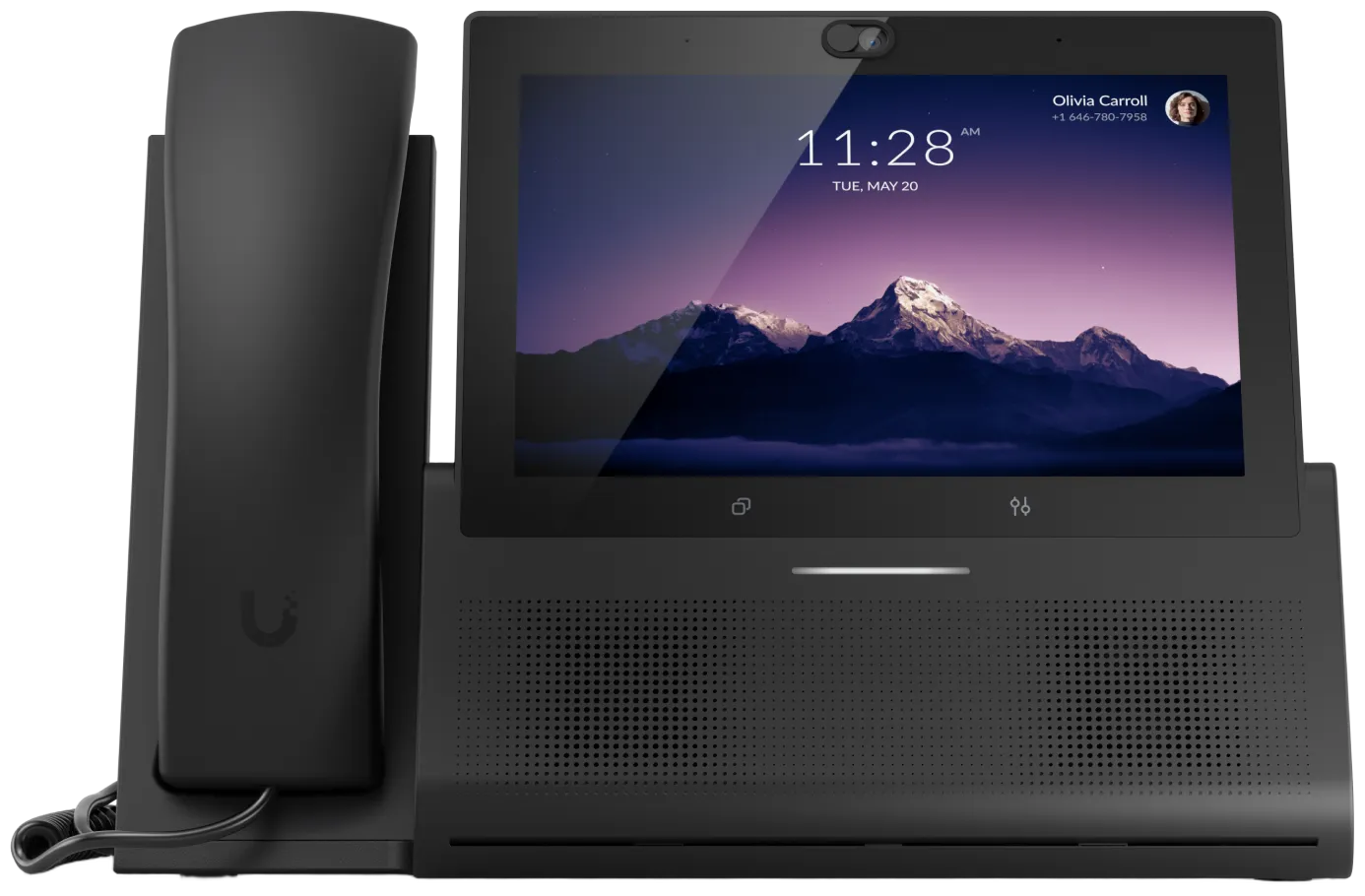

The Touch Max is powered by an octa-core ARM Cortex-A53 processor, ensuring smooth operation of the touch interface and UniFi applications. It features 32 GB of built-in storage and 2 GB of RAM. The 178 mm (7") multitouch HD display with 1280 x 800 resolution provides intuitive control over phone functions. The fingerprint-resistant screen coating keeps the surface clean during daily use.
Audio Capabilities and Communications

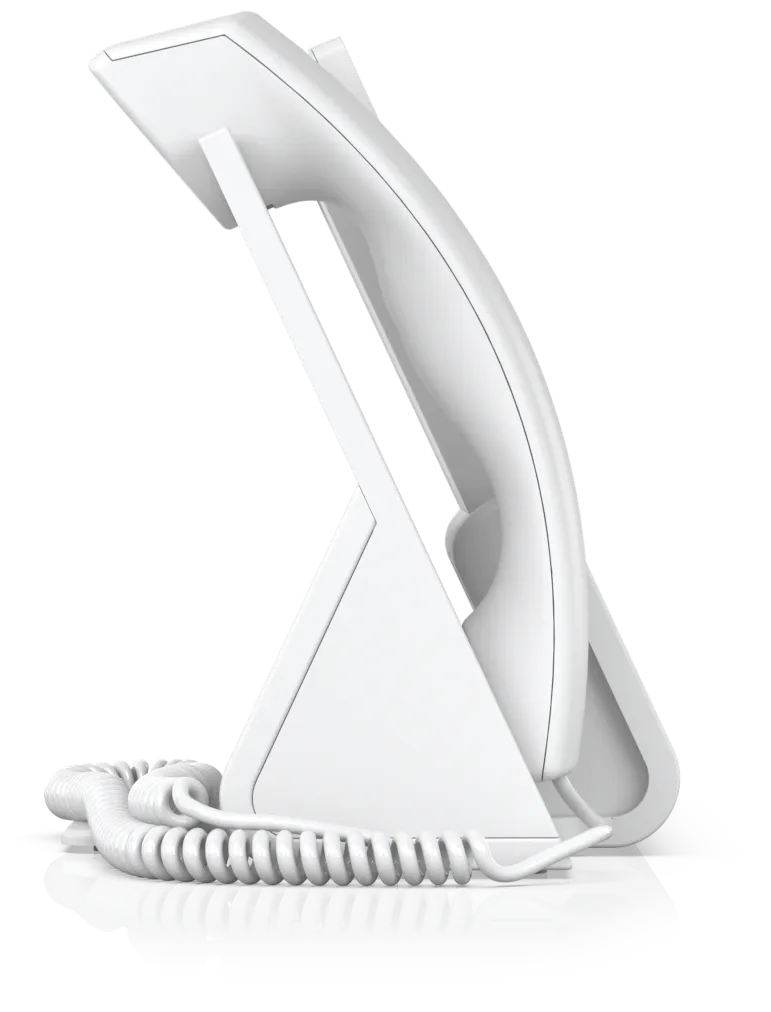

The phone is equipped with dual omnidirectional MEMS microphones and two 3 W speakers for high-quality hands-free calling. The handset includes an omnidirectional electret condenser microphone and a dynamic receiver with wideband audio support. A dedicated microphone mute button on the chassis allows for quick call management. A 3.5 mm audio jack is available for headset connectivity. The white model features a blue LED indicator.
Connectivity and Network Interfaces

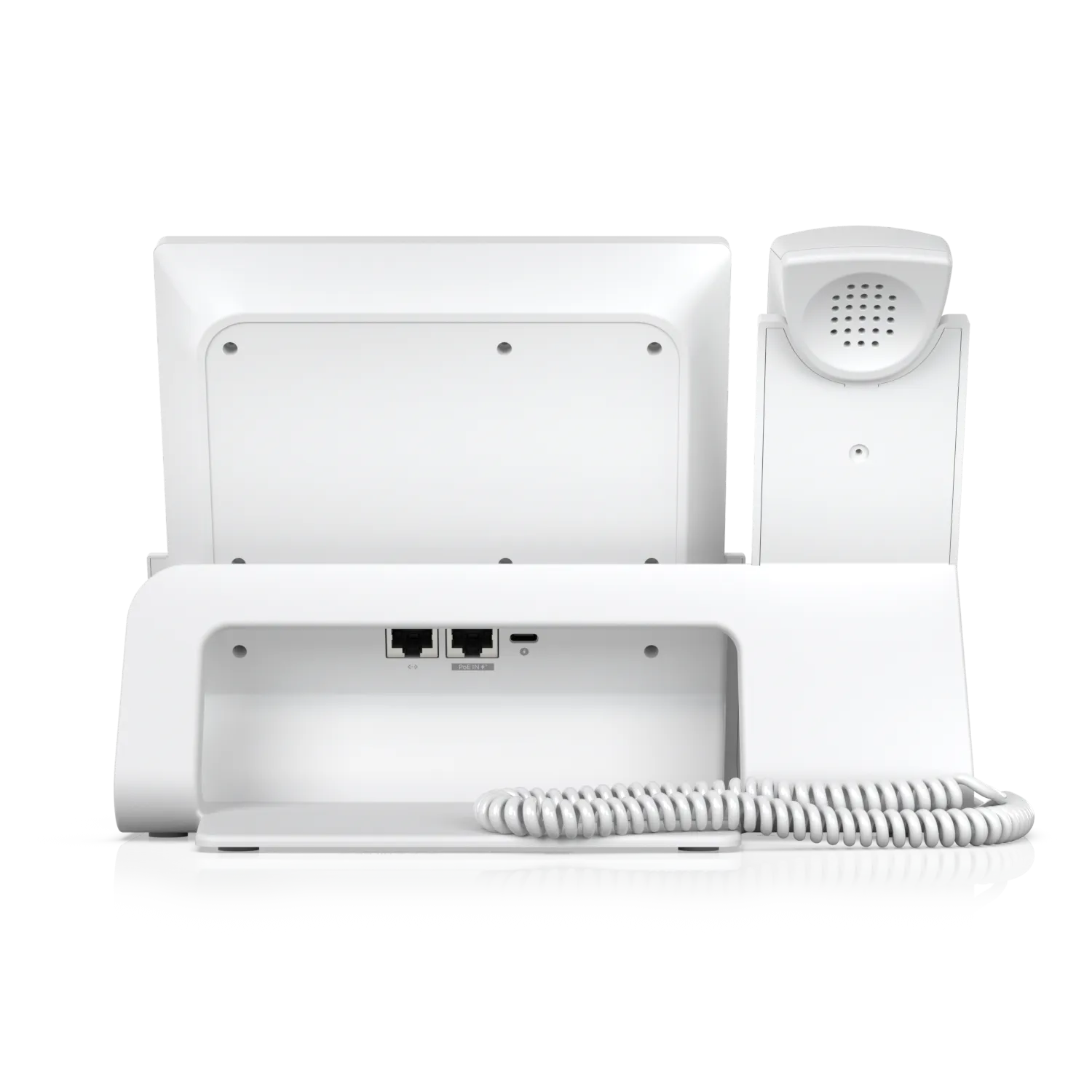

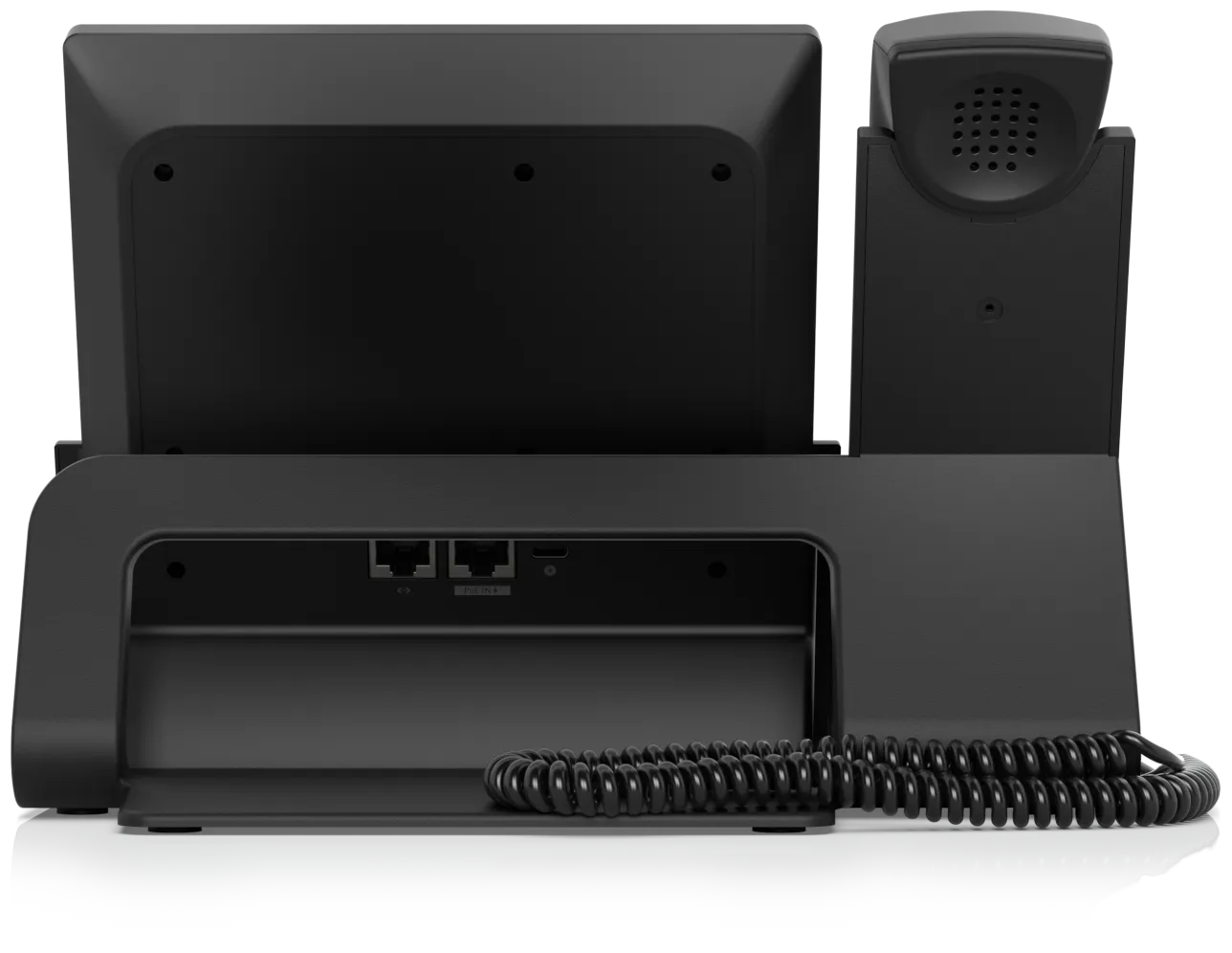

The Touch Max offers two GbE RJ45 ports for wired network connections, along with Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2 for wireless integration. The built-in NFC module operates at 13.56 MHz with a read range of less than 10 mm and supports NFC Tag 1–5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, and MIFARE DESFire, as well as ISO 14443A, 14443B, and 15693 standards. Power is delivered via USB Type-C with PoE+ support, and maximum power consumption is 15 W.
Compatibility and Design
The Touch Max integrates with the UniFi Talk application and is designed for desktop placement. The device complies with NDAA requirements. The chassis is made of plastic with an aluminum base, measuring 255 x 135 x 183 mm and weighing 1.5 kg. It is suitable for typical indoor office environments. The model is available in black and white.
Technical Specifications
Connectivity: (2) GbE RJ45 ports, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 4.2
Power Method: USB Type-C PoE+
Maximum Power Consumption: 15 W
Processor: octa-core ARM Cortex-A53
Memory: 32 GB storage, 2 GB RAM
Camera: 2592 x 1944, 5 MP, built-in privacy shutter
Display Size: 178 mm (7") diagonal
Display Resolution: 1280 x 800 HD
Display Coating: fingerprint-resistant
Touchscreen Technology: multitouch
Audio – Hands-Free Microphone: dual omnidirectional MEMS
Audio – Hands-Free Speaker: two 3 W speakers
Audio – Handset Microphone: omnidirectional electret condenser
Audio – Handset Receiver: wideband audio
Buttons: (1) microphone mute button

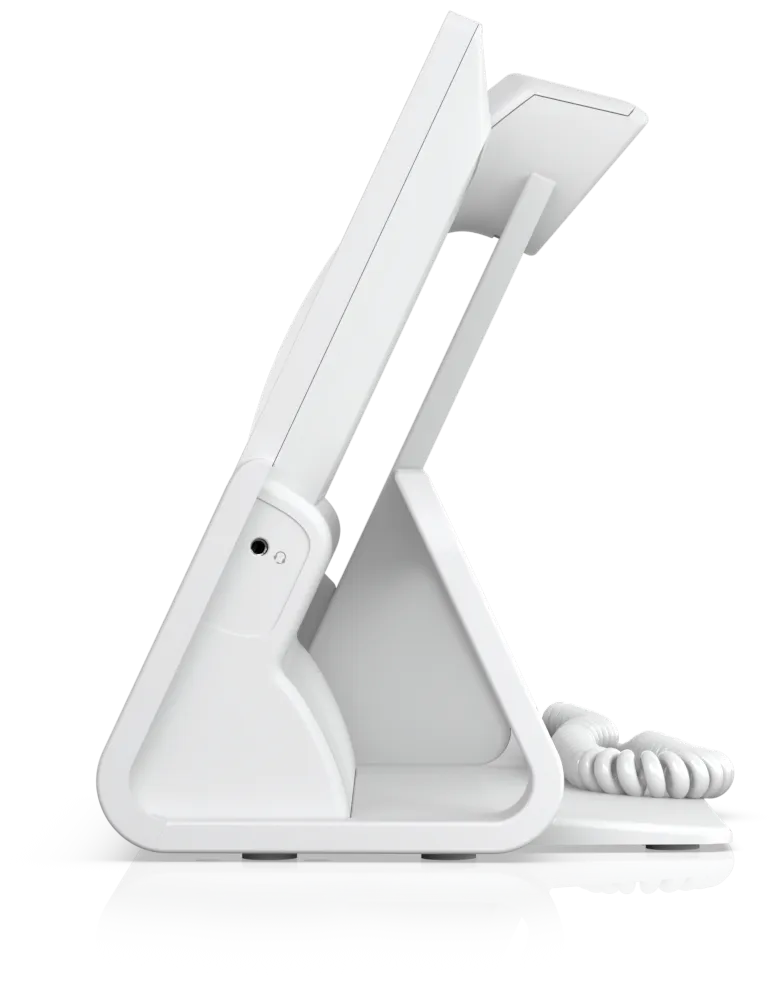

Headset Support: 3.5 mm (0.14") audio jack
Indicator: blue LED (white model)
NFC Frequency: 13.56 MHz
NFC Read Range: 10 mm
NFC Technologies: NFC Tag 1, 2, 3, 4, 5, MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire
NFC Standards: ISO 14443A, 14443B, 15693
NDAA Compliance: yes
Chassis Material: plastic, aluminum (base)
Dimensions: 255 x 135 x 183 mm (10 x 5.3 x 7.2")
Weight: 1.5 kg (3.4 lb)
UniFi App – Talk: yes
Mounting: desktop
Integrated Camera: yes
Bluetooth: yes

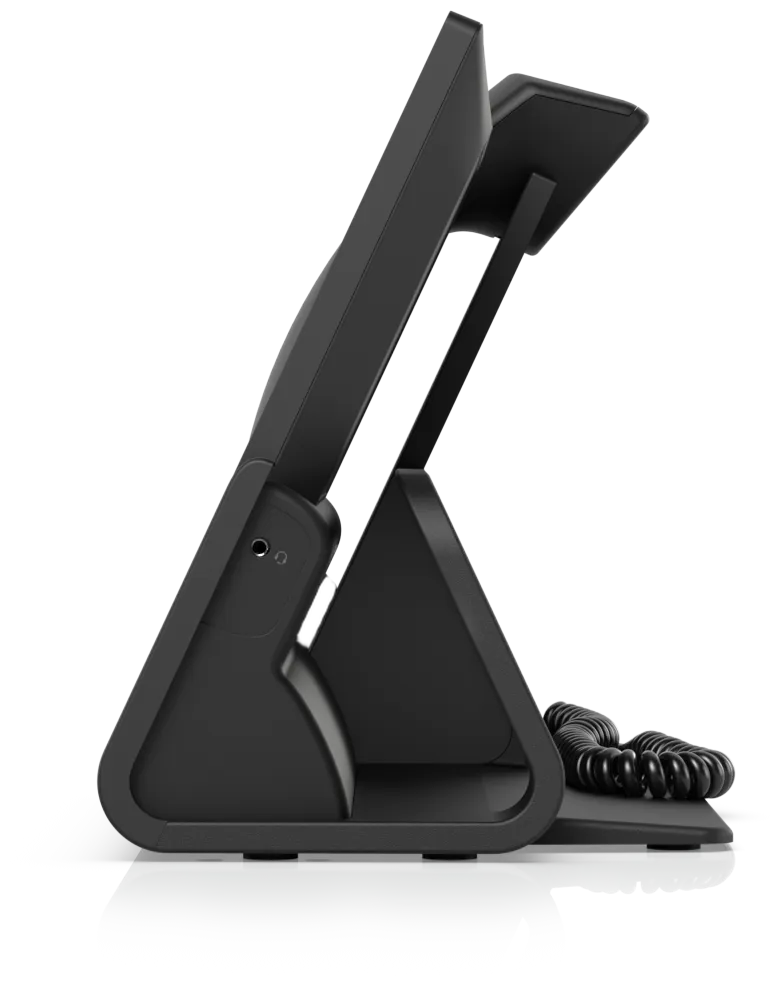

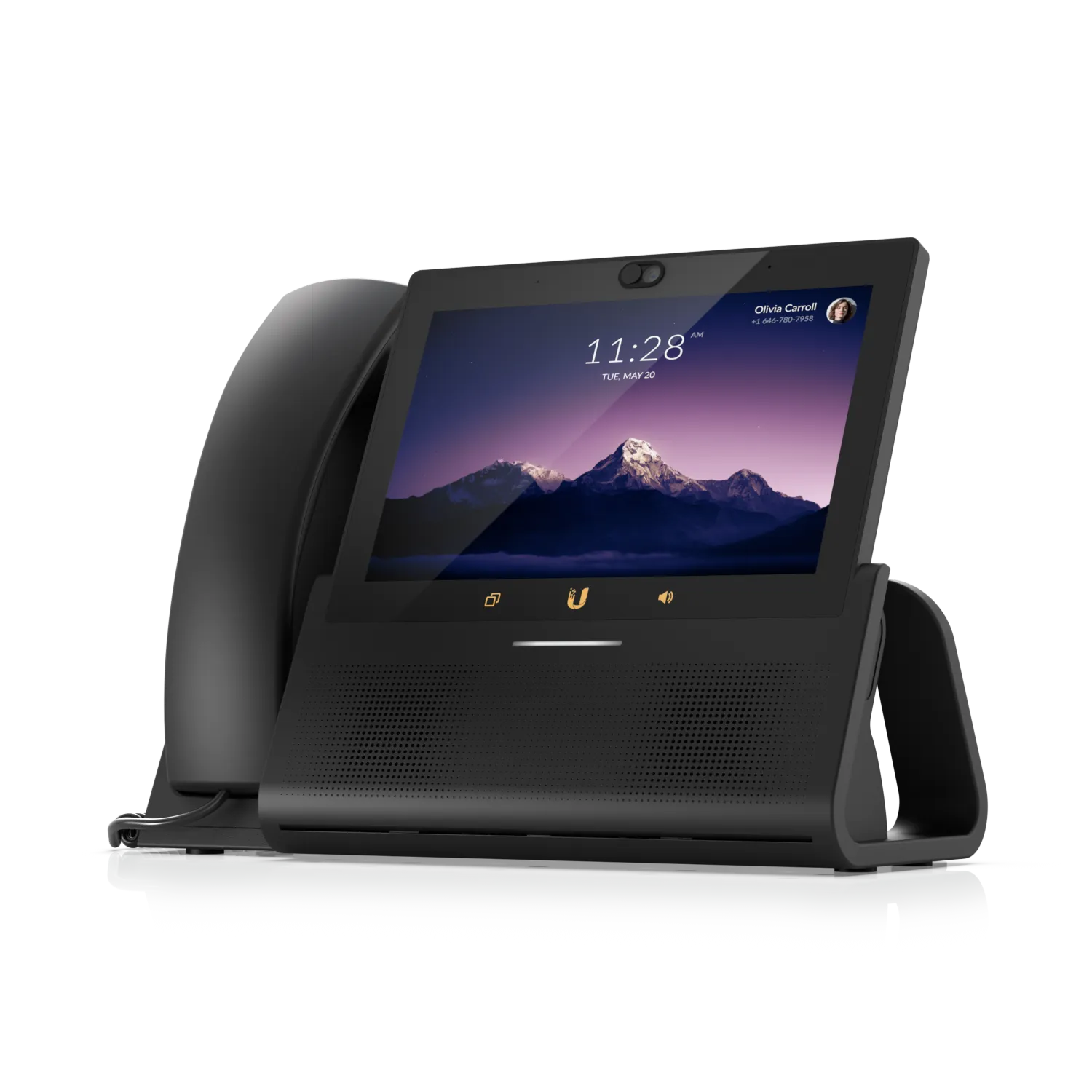

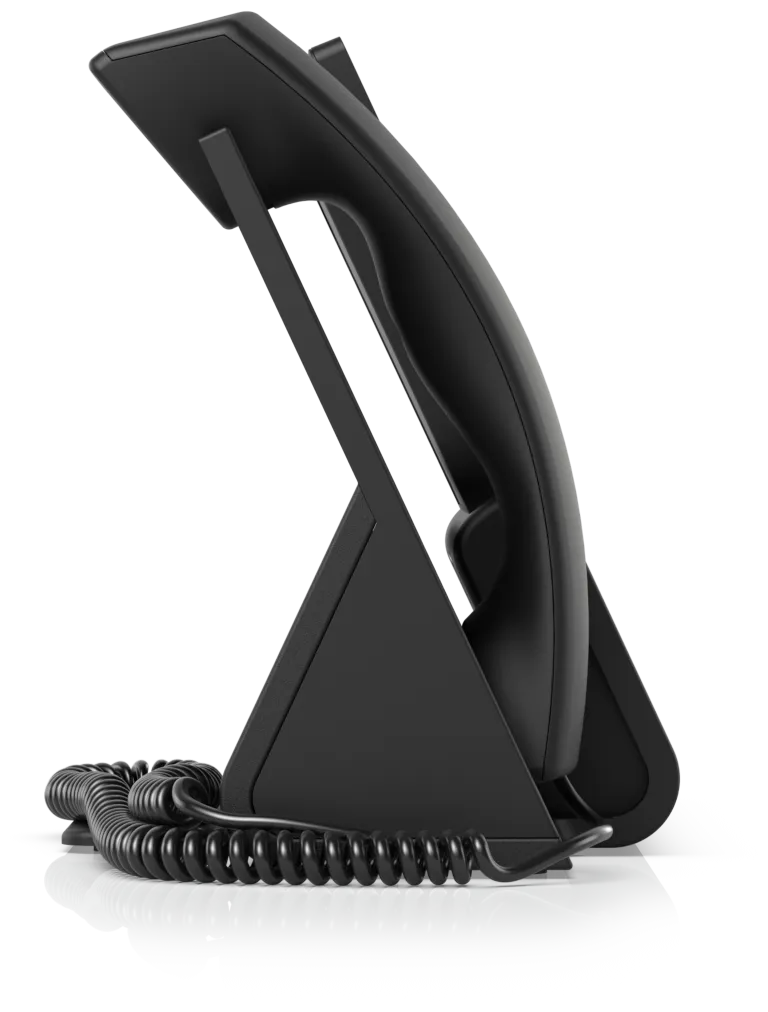

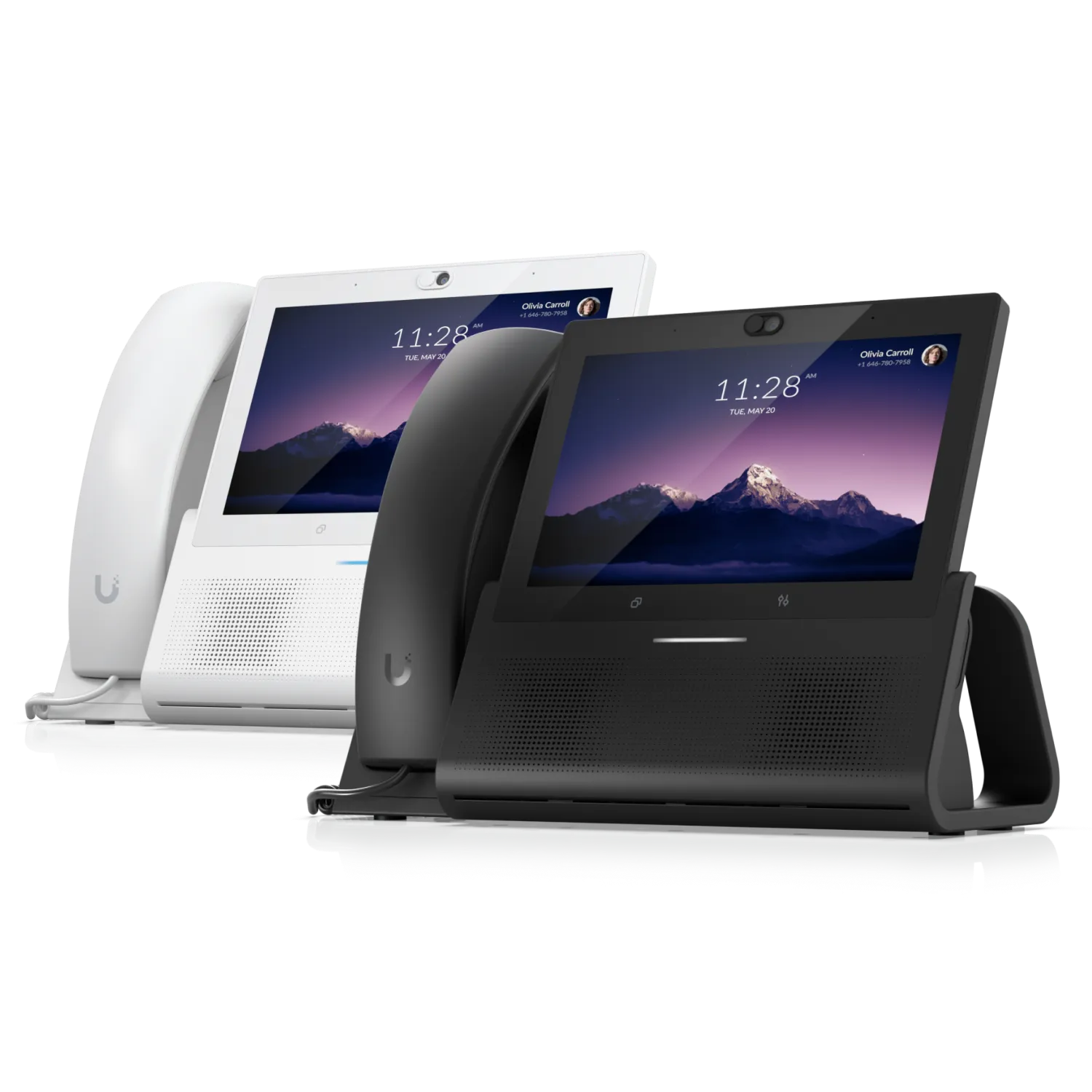

Available Colors: black, white
