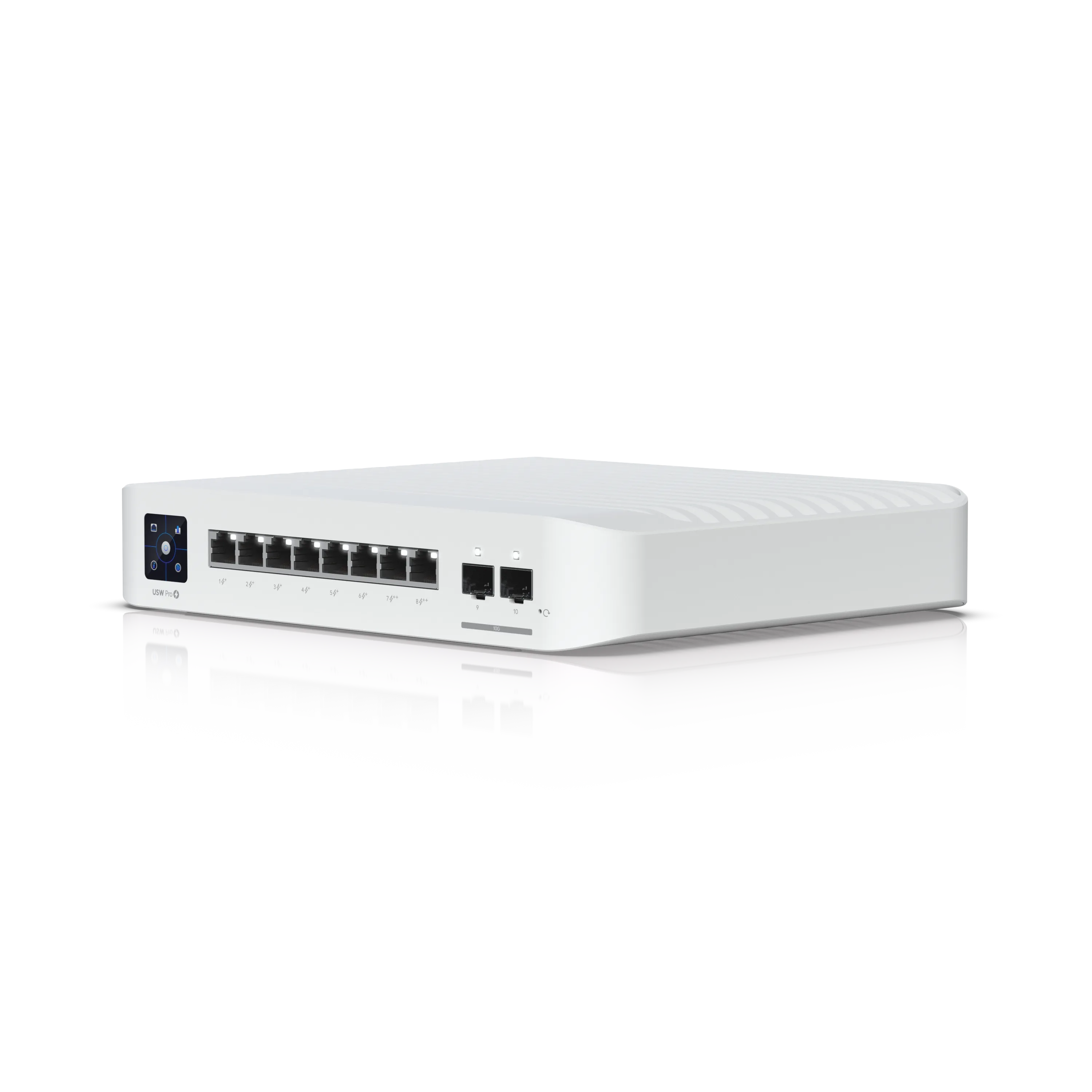

Ubiquiti UniFi Switch USW-Pro-8-POE 120W PoE++ SFP+

8-port Layer 3 managed switch with PoE+ and PoE++ support for UniFi enterprise networks. Total available PoE power is 120 W, while two 10G SFP+ ports provide high-speed uplink connectivity to the network core. Key Features 8 GbE RJ45 ports with PoE+ and PoE++ for powering and connecting edge devices 2 10G SFP+ ports for 10G or 1G high-speed uplinks Layer 3 switching with inter-VLAN routing and static routing 1.3" touchscreen display for local status monitoring and control Compact form factor for desktop or wall-mount installation UniFi Network management version 7.5.176 or later Performance and Throughput The switch delivers non-blocking throughput of 28 Gbps and switching capacity of 56 Gbps. Forwarding rate is 42 Mpps, with a packet buffer size of 1.5 MB. The MAC address table supports 16,000 entries, and up to 1,000 VLANs are supported. Jumbo frame support enables transmission of large frames for improved traffic efficiency. PoE and Power Of the eight GbE RJ45 ports, six support PoE+ with a maximum power of 32 W per port, while two support PoE++ with a maximum power of 64 W per port. Total available PoE power is 120 W. The switch’s maximum power consumption is 30 W without PoE output and 150 W with PoE. The built-in 150 W AC/DC power supply operates on 100–240 V AC, 50/60 Hz. Layer 3 Management and Features The switch supports Layer 3 features, including inter-VLAN routing, static routing, and DHCP server for local networks. DHCP Relay, LACP port aggregation, and STP/RSTP for link redundancy are also supported. The Virtual Network Override feature allows virtual network settings to be overridden at the port level. Management is handled via the UniFi Network application version 7.5.176 or later. Security and Compliance The switch supports 802.1X authentication, IPv4- and MAC-based access control lists, as well as port and device isolation. DHCP Snooping and Guarding, MAC address lockdown, and MAC-based port limiting enhance network security. Outbound rate limiting, storm control, multicast and broadcast traffic limiting, and port mirroring are also supported. The switch complies with NDAA requirements. Design and Form Factor The switch features a compact polycarbonate and metal chassis with dimensions of 200 × 248 × 44 mm and a weight of 2.1 kg. It supports desktop, wall-mount, or rack installation (rack depth: 400–1200 mm). A 1.3" touchscreen LCM display on the front panel enables local management. Humidity tolerance is 10–90% (non-condensing). Heat dissipation is 102.4 BTU/h without PoE output. Technical Specifications GbE RJ45 ports: 8 (6 PoE+; 2 PoE++), 1G/100M/10M 10G SFP+ ports: 2 (10G/1G) Total available PoE power: 120 W Max. PoE power per port (PoE): 15.4 W Max. PoE power per port (PoE+): 32 W Max. PoE power per port (PoE++): 64 W Switching capacity: 56 Gbps Non-blocking throughput: 28 Gbps Forwarding rate: 42 Mpps Packet buffer size: 1.5 MB MAC address table size: 16,000 Supported VLANs: 1,000 IPv4 static routes: 256 IPv4 access lists: 128 MAC access lists: 128 Layer 3: Yes LACP: Yes STP and RSTP: Yes IGMP Snooping: Yes 802.1X authentication: Yes Port mirroring: Yes Jumbo frame support: Yes LLDP-MED: Yes Voice VLAN: Yes Loop protection: Yes DHCP server (local networks): Yes DHCP Relay: Yes Inter-VLAN routing (local networks): Yes Static routing (local networks): Yes Management: Ethernet AR LCM display: 1.3" touchscreen Power input: Universal input, 100–240 V AC, 50/60 Hz Power supply: AC/DC, built-in, 150 W Max. power consumption: 30 W (without PoE) / 150 W (with PoE) Heat dissipation: 102.4 BTU/h (without PoE) Form factor: Compact, desktop/wall-mount Chassis material: Polycarbonate, metal Dimensions: 200 × 248 × 44 mm Weight: 2.1 kg Supported rack depth: 400–1200 mm Operating humidity: 10–90% non-condensing NDAA compliance: Yes UniFi Network requirement: Version 7.5.176 or later Warranty: 12 months
