Ubiquiti Video Camera UVC-AI-DSLR

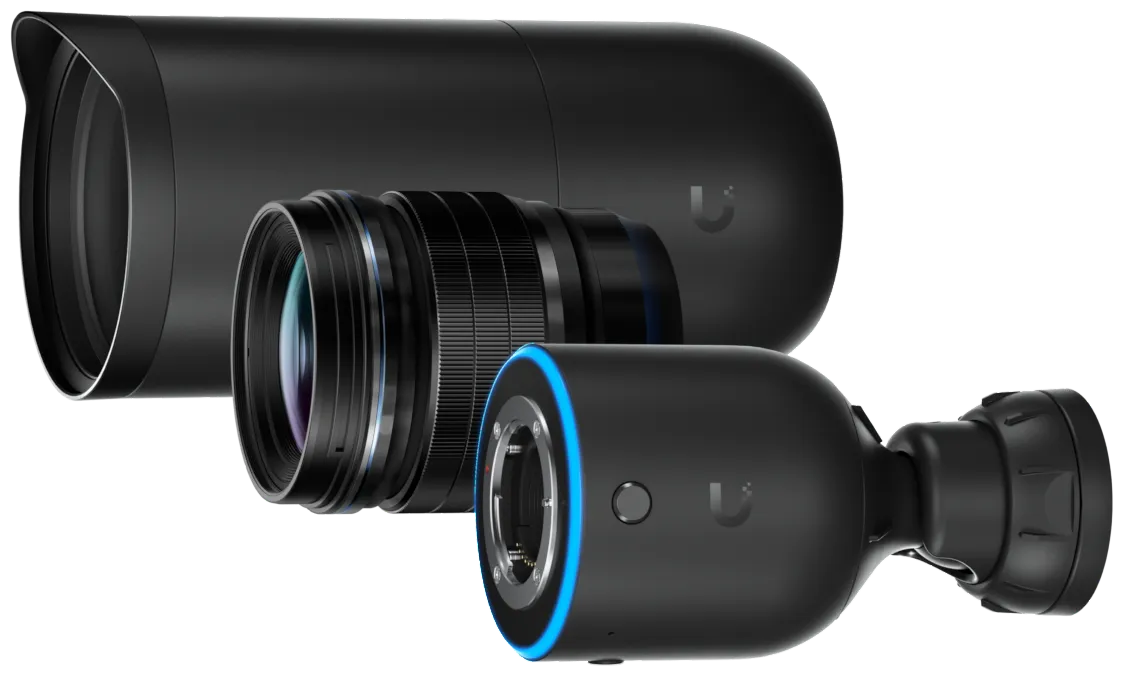

The Ubiquiti Video Camera UVC-AI-DSLR is a 4K IP camera with a 4/3-inch CMOS sensor and interchangeable lenses, offering advanced AI detection for people, vehicles, animals, faces, and license plates. Key Benefits at a Glance 4K Resolution: 8MP at 3840 x 2160 and up to 30 FPS Interchangeable Lenses: M. Zuiko Digital ED 17 mm and 45 mm ƒ/1.2 PRO AI Detection: People, vehicles, animals, faces, and license plates Two-Way Audio: Built-in for bidirectional communication PoE+ Connectivity: Power and data over a single GbE cable Aluminum Housing: Rugged construction for wall and pole mounting Optics & Image Quality The camera features a 4/3-inch 10MP CMOS sensor, delivering 4K video at 8MP resolution (3840 x 2160, 16:9) with a maximum frame rate of 30 FPS. Available lenses include the M. Zuiko Digital ED 17 mm ƒ/1.2 PRO with a 65° diagonal field of view and the M. Zuiko Digital ED 45 mm ƒ/1.2 PRO with a 27° diagonal field of view. Image parameters include color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/motion NR, masking, and text overlay. AI Features & Audio A quad-core Arm® Cortex®-A53 processor handles AI detection directly in the camera. It identifies people, vehicles, and animals, as well as faces and license plates. Two-way audio is built in, enabling bidirectional communication. Housing & Mounting The housing is made from an aluminum alloy, as are the wall and pole mounts. The camera can be mounted on walls or poles with a diameter of 1.5–2" (38–50 mm); a tripod mount is available as an option. Two buttons are provided: a factory reset button and a lens release button. With the outdoor housing, the camera achieves an IPX5 rating. Power & Connectivity Power is supplied via PoE+ within a voltage range of 37–57V DC, with a maximum power consumption of 17.77W when the lens is active. The network interface is a GbE RJ45 port. The camera is designed for reliable performance in various environmental conditions and at humidity levels of 10 to 90% non-condensing. It is NDAA-compliant and may carry industry-standard certifications. Technical Specifications Resolution: 4K (8MP, 3840 x 2160, 16:9) Max. Frame Rate: 30 FPS Sensor: 4/3" 10MP CMOS Lens: M. Zuiko Digital ED 17 mm ƒ/1.2 PRO / M. Zuiko Digital ED 45 mm ƒ/1.2 PRO Field of View (17 mm): H: 52°, V: 39°, D: 65° Field of View (45 mm): H: 21.6°, V: 16.2°, D: 27° Processor: Quad-core Arm® Cortex®-A53 Network Interface: GbE RJ45 Power Supply: PoE+ Voltage Range: 37—57V DC Max. Power Consumption: 17.77W (with lens) Audio: Two-way audio AI Detection: People, vehicles, animals, faces, license plates Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/motion NR, masking, text overlay Housing Material: Aluminum alloy Mount Material: Wall and pole mount: aluminum alloy Weather Resistance: IPX5 (with outdoor housing) Mounting Options: Wall, pole (included), tripod (optional) Pole Mount Diameter: 1.5–2" (38–50 mm) Buttons: Factory reset, lens release button Operating Humidity: 10 to 90% non-condensing Dimensions (without mount): ⌀80 x 89 mm (⌀3.1 x 3.5") Dimensions (with mount): ⌀80 x 153 mm (⌀3.1 x 6") Dimensions (17 mm PRO): ⌀68.2 x 87 mm (⌀2.7 x 3.4") Dimensions (45 mm PRO): ⌀70 x 84.9 mm (⌀2.8 x 3.3") Dimensions (outdoor housing): ⌀91.6 x 196.3 mm (⌀3.6 x 7.7") Weight (without mount): 660 g (1.5 lb) Weight (with mount): 820 g (1.8 lb) Weight (17 mm PRO): 390 g (0.9 lb) Weight (45 mm PRO): 410 g (0.9 lb) Weight (outdoor housing): 510 g (1.1 lb) NDAA-Compliant: Yes Warranty: 12 months
