PLANET Industrial L2+ 4-Port 10/100/1000T + 2-Port

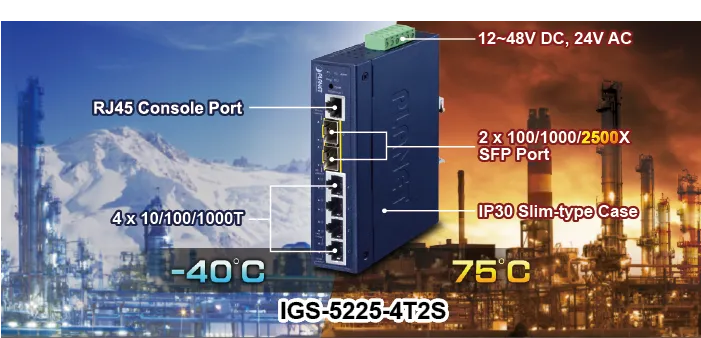

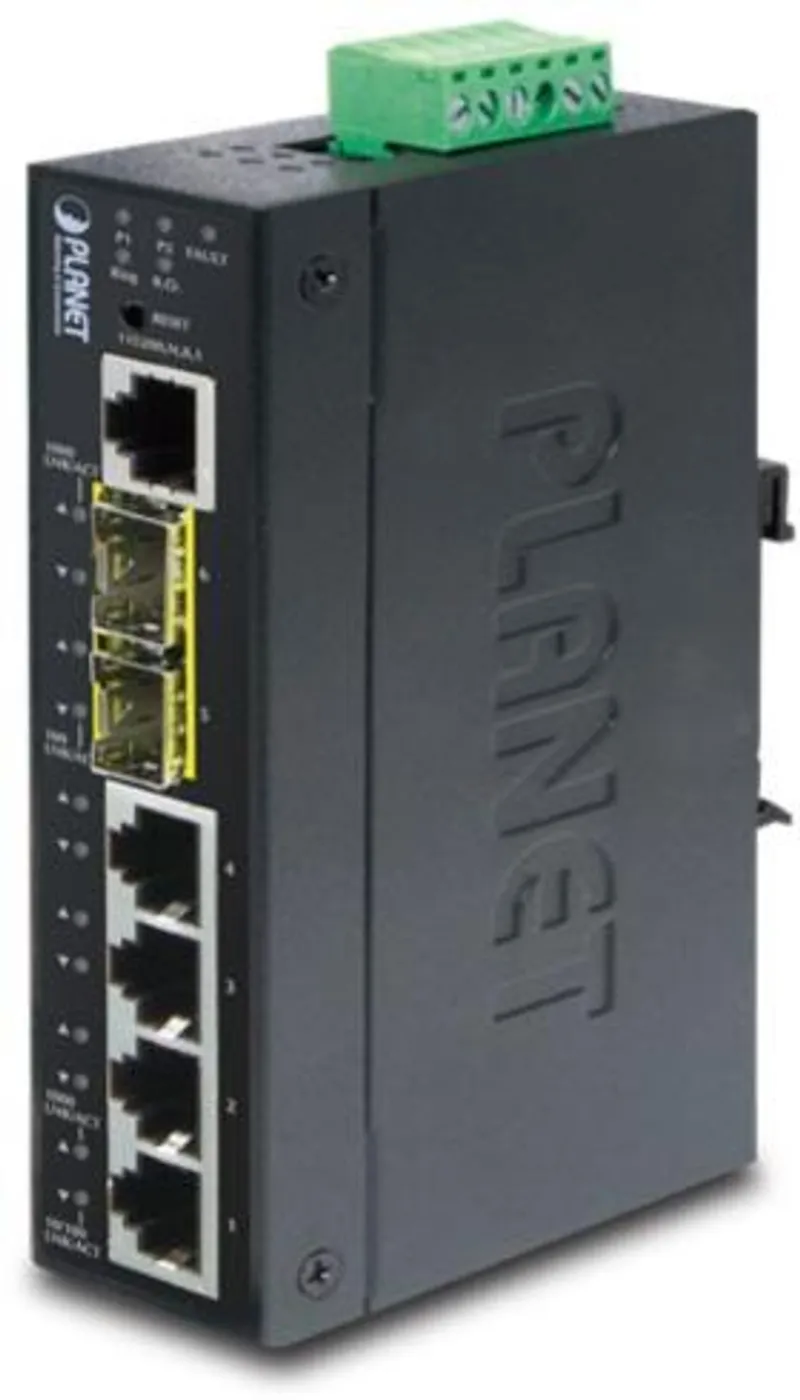

# PLANET Industrial L2+ 4-Port 10/100/1000T + 2-Port The PLANET Industrial L2+ 4-Port 10/100/1000T + 2-Port is a fully managed industrial Gigabit Ethernet switch featuring 4 copper ports and 2 SFP slots, offering Layer-3 static routing, ERPS ring redundancy, and an extended temperature range from -40 to 75 °C. Key facts: - Ports: 4x 10/100/1000BASE-T RJ45 (Auto-MDI/MDI-X), 2x 100/1000X SFP (compatible with 100BASE-FX) - Switch Fabric: 18 Gbps (non-blocking), Throughput: 13.39 Mpps @ 64 Byte - Layer-3 Functions: IPv4/IPv6 Software Static Routing, max. 32 routing entries, max. 8 VLAN interfaces - Redundancy: ERPS (ITU-T G.8032), Recovery time <10 ms @ 3 units, <50 ms @ 16 units; IEEE 1588v2 PTP (Transparent Clock) - Power Supply: Dual 12–48 V DC / 24 V AC, redundant input via 6-pin terminal block, max. power consumption 8.5 W (full load) - Operating Temperature: -40 to 75 °C, IP30 protection rating, metal housing, DIN rail and wall mounting - Certifications: FCC Part 15 Class A, CE; Stability tests according to IEC60068-2-32 (free fall), -2-27 (shock), -2-6 (vibration) - Management: CLI (Console, Telnet, SSHv2), Web, SNMP v1/v2c/v3, PLANET CloudViewer App; VLAN (802.1Q, Q-in-Q, Private VLAN, Voice VLAN), QoS (8 priority queues), ACL, 802.1X, RADIUS, TACACS+ Ideal for: Industrial automation networks, manufacturing cells, harsh environments with extreme temperatures, applications requiring high availability and real-time communication (e.g., PROFINET, Modbus TCP), as well as operators needing a compact, managed switch with Layer-3 static routing and fast ring redundancy.
