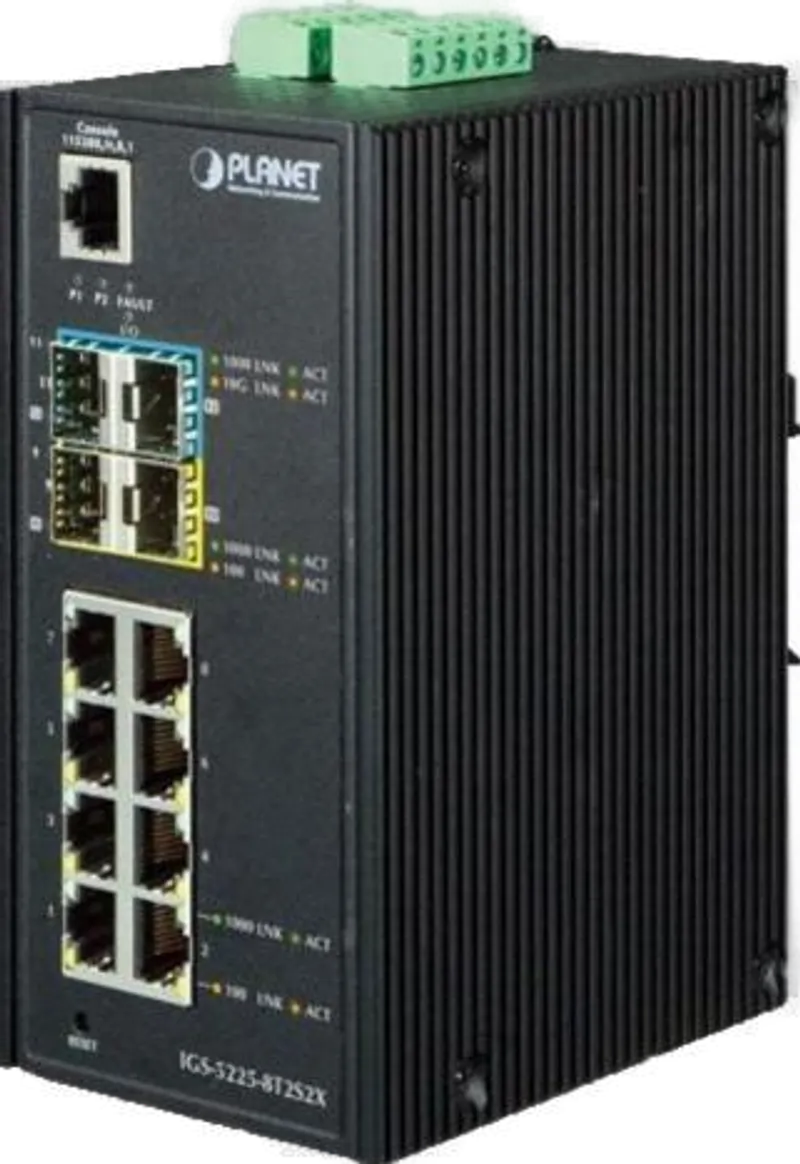

PLANET Industrial L2+ 8-Port 10/100/1000T + 2-Port

8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection 2 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX SFP 1 RJ45 console interface for basic management and setup   Industrial Case & Installation IP30 aluminum case DIN rail and wall-mount design Redundant power design 12~48V DC, redundant power with polarity reverse protect function 24V AC power input acceptableSupports 6000V DC Ethernet ESD protection -40 to 75 degrees C operating temperature   Digital Input & Digital Output: 2 Digital Input (DI) 2 Digital Output (DO) Integrate sensors into auto alarm system Transfer alarm to IP network via email and SNMP trap   Layer 2 Features: Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth Storm Control support Broadcast/Multicast/Unicast Supports VLAN IEEE 802.1Q tagged VLAN Up to 255 VLANs groups, out of 4095 VLAN Ids Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Private VLAN Edge (PVE)- Protocol-based VLAN MAC-based VLAN Voice VLAN Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 6 trunk groups with 8 ports per trunk group Up to 16Gbps bandwidth (duplex mode) Provides port mirror (1-to-1) Port mirroring to monitor the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops   Layer 3 IP Routing Features: Supports maximum 32 static routes and route summarization   Quality of Service: Ingress Shaper and Egress Rate Limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS- IP TOS/DSCP/IP precedence IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Supports QoS and In/Out bandwidth control on each port Traffic-policing policies on the switch port DSCP remarking   Multicast: Supports IGMP snooping v1, v2 and v3 Supports MLD snooping v1 and v2 Querier mode support IGMP snooping port filtering MLD snooping port filtering MVR (Multicast VLAN Registration)   Security: IEEE 802.1x Port-based/MAC-based network access authentication Built-in RADIUS client to cooperate with the RADIUS servers TACACS+ login users access authentication RADIUS/TACACS+ users access authentication IP-based Access Control List (ACL) MAC-based Access Control List Source MAC/IP address binding DHCP snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder   Management: Switch Management Interfaces Console/Telnet Command Line Interface Web switch management SNMP v1 and v2c switch management SSH/SSL and SNMP v3 secure access Four RMON groups (history, statistics, alarms, and events) IPv6 IP address/NTP/DNS management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment Firmware upload/download via HTTP/TFTP DHCP Relay DHCP Option 82 User Privilege levels control Network Time Protocol (NTP) Link Layer Discovery Protocol (LLDP) SFP-DDM (Digital Diagnostic Monitor) Cable diagnostic technology provides the mechanism to detect and report potential cabling issues Reset button for system reboot or reset to factory default PLANET Smart Discovery Utility for deployment management
