PLANET 16-Port 10/100TX + 2-Port Gbit TP/SFP Combo Switch

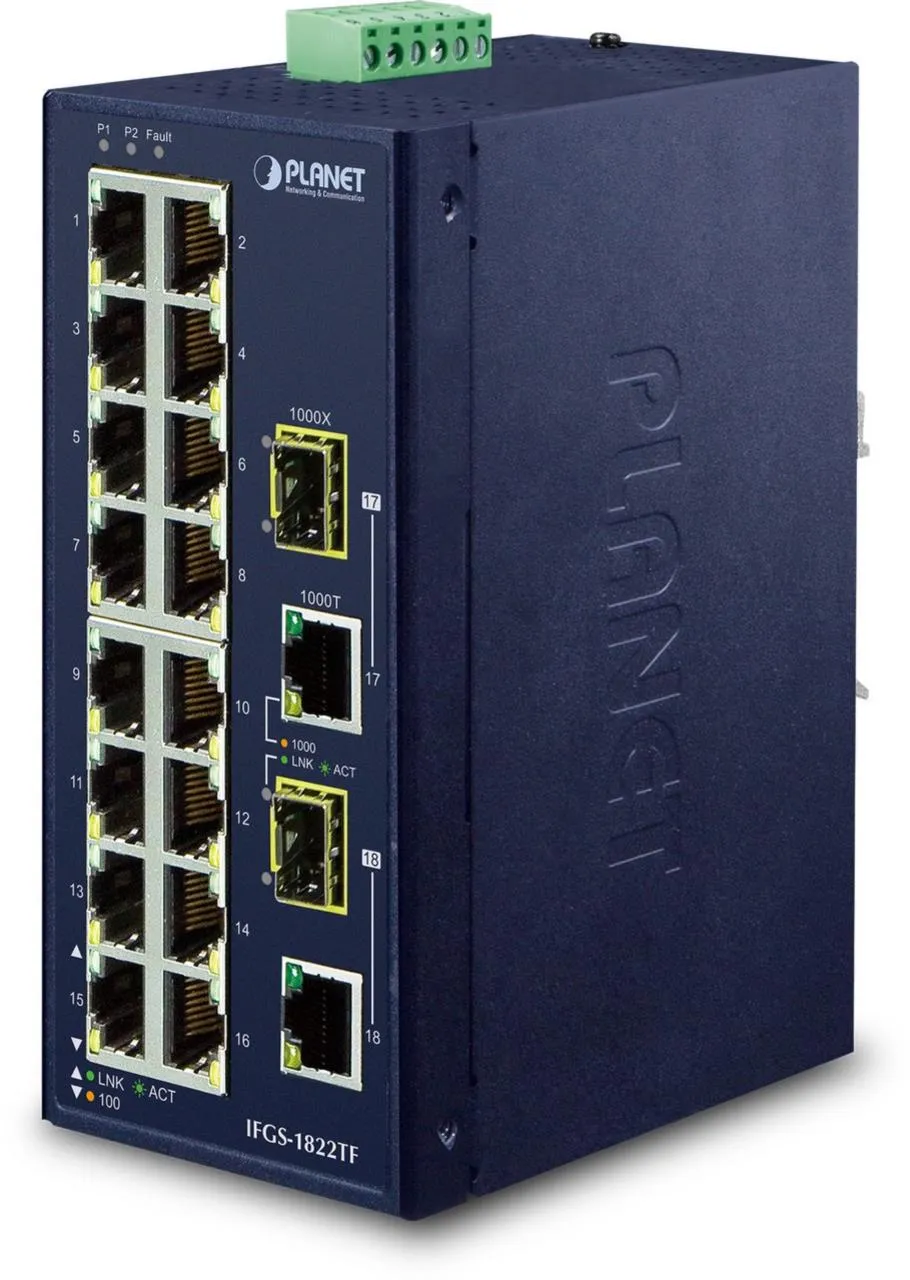

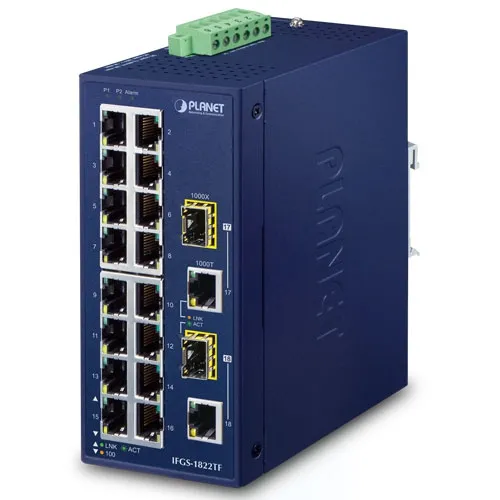

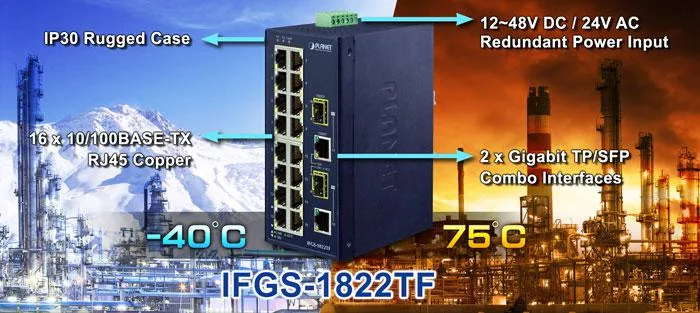

# PLANET 16-Port 10/100TX + 2-Port Gbit TP/SFP Combo Switch The industrial Ethernet switch PLANET 16-Port 10/100TX + 2-Port Gbit TP/SFP Combo Switch provides 16 Fast Ethernet ports and 2 Gigabit combo ports (RJ45/SFP) in a rugged IP30 metal housing suitable for temperatures from -40 to 75 °C. Key facts: - Fast Ethernet copper ports: 16 10/100BASE-TX RJ45 Auto-MDI/MDI-X - Gigabit combo ports: 2 10/100/1000BASE-T RJ45 and 1000BASE-X SFP (shared with port 17 and 18) - Switch architecture: Store-and-Forward - Switch fabric: 7.2 Gbit/s (non-blocking) - Throughput: 5.36 Mpps at 64 bytes - MAC address table: 16K entries, automatic learning and aging - Buffer memory: 4 Mbit - Power supply: Dual 12–48 V DC or single 24 V AC - Power consumption: max. 6.3 Watts / 21.4 BTU (full Ethernet load) - ESD protection: 6 kV DC - Operating temperature: -40 to 75 °C - Storage temperature: -40 to 85 °C - Humidity: 5–95 % (non-condensing) - Housing: IP30 metal - Mounting: DIN rail kit and wall mount kit - Alarm: one relay output for power failure (1 A at 24 V DC) - Dimensions (W x D x H): 66 x 107 x 152 mm - Weight: 870 g - Certifications: FCC Part 15 Class A, CE - Stability tests: IEC60068-2-32 (free fall), IEC60068-2-27 (shock), IEC60068-2-6 (vibration) - Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z Gigabit SX/LX, IEEE 802.3x Flow Control, IEEE 802.1p Class of Service, IEEE 802.3az Energy Efficient Ethernet Ideal for: industrial automation, harsh environments with extended temperature range, DIN rail and wall mounting, redundant power supply, as well as applications requiring protection against vibration, shock, and free fall.
