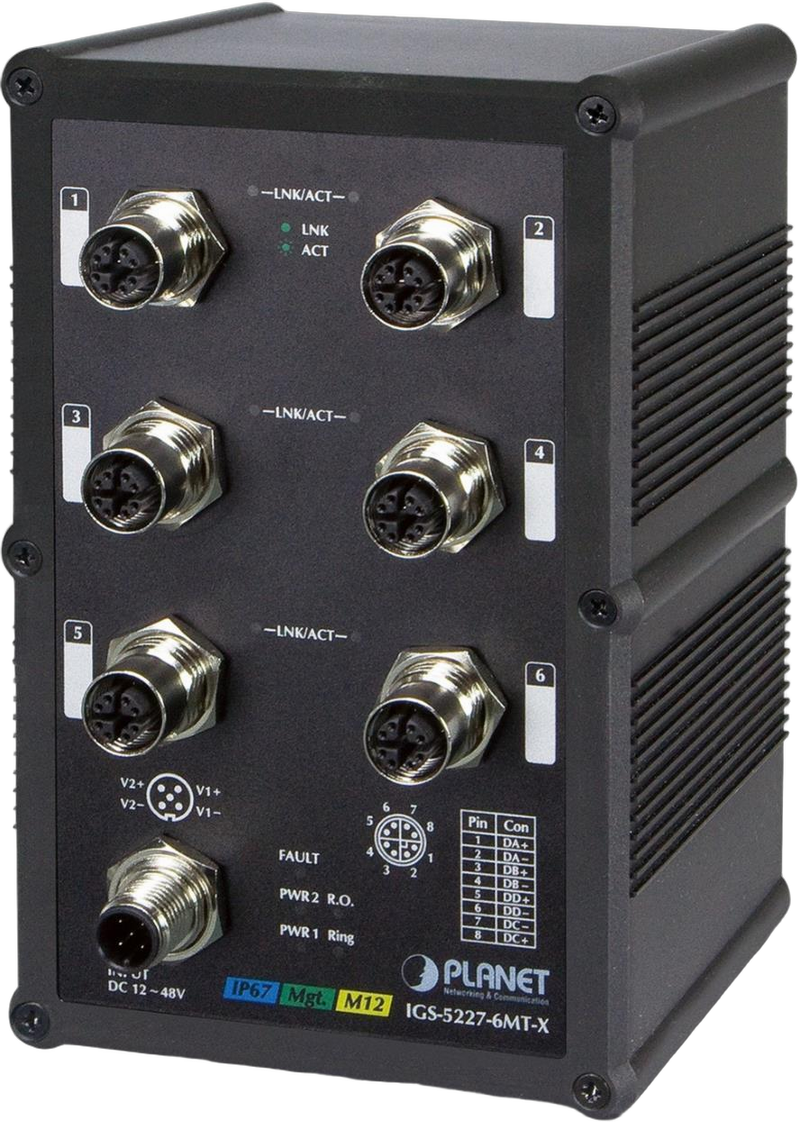

PLANET Industrial IP67 Rated 6-Port 10/100/1000T M12 Managed

6x 10/100/1000BASE-T, waterproof and dustproof M12 connectors   Hardware Conformance: IP67-rated aluminum case Redundant power design 9 to 48V DC, redundant power with polarity reverse protect function Active-active redundant power failure protection Backup of catastrophic power failure on one supply Fault tolerance and resilience 24V AC power input acceptable DIN-rail and wall-mount design Supports Ethernet ESD protection of 6000V DC -40 to 75 degrees C operating temperature   Layer 3 IP Routing Features: Supports maximum 32 static routes and route summarization   Layer 2 Features: Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) High performance of Store-and-Forward architecture, and runt/CRC filtering that eliminates erroneous packets to optimize the network bandwidth Storm control support Broadcast/Multicast/Unicast Supports VLAN IEEE 802.1Q tagged VLAN Up to 255 VLANs groups, out of 4095 VLAN Ids Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) Private VLAN Edge (PVE)- Protocol-based VLAN MAC-based VLAN IP subnet-based VLAN Voice VLAN Supports Spanning Tree Protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN BPDU Guard Supports Link Aggregation 802.3ad Link Aggregation Control Protocol (LACP) Cisco ether-channel (static trunk) Maximum 3 trunk groups, with 2 ports for each trunk Up to 12Gbps bandwidth (full duplex mode) Provides port mirror (many-to-1) Port mirroring monitors the incoming or outgoing traffic on a particular port Loop protection to avoid broadcast loops Supports ITU-T G.8032 ERPS (Ethernet Ring Protection Switching)   Quality of Service: Ingress shaper and egress rate limit per port bandwidth control 8 priority queues on all switch ports Traffic classification IEEE 802.1p CoS- ToS/DSCP/IP precedence of IPv4/IPv6 packets IP TCP/UDP port number Typical network application Strict priority and Weighted Round Robin (WRR) CoS policies Traffic-policing policies on the switch port DSCP remarking   Multicast: Supports IGMP snooping v1, v2 and v3 Supports MLD snooping v1 and v2 Querier mode support IGMP snooping port filtering MLD snooping port filtering MVR (Multicast VLAN Registration)   Security: Authentication IEEE 802.1x port-based/MAC-based network access authentication IEEE 802.1x authentication with guest VLAN Built-in RADIUS client to cooperate with the RADIUS servers RADIUS/TACACS+ users access authentication Access Control List IP-based Access Control List (ACL) MAC-based Access Control List (ACL) Source MAC/IP address binding DHCP Snooping to filter distrusted DHCP messages Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding IP Source Guard prevents IP spoofing attacks IP address access management to prevent unauthorized intruder   Management: IPv4 and IPv6 dual stack management Switch Management Interfaces Telnet command line interface Web switch management SNMP v1, v2c, and v3 switch management SSH/SSL secure access IPv6 address/NTP management Built-in Trivial File Transfer Protocol (TFTP) client BOOTP and DHCP for IP address assignment System Maintenance Firmware upload/download via HTTP/TFTP Dual imagesDHCP relay and option 82 User privilege levels control NTP (Network Time Protocol) Link Layer Discovery Protocol (LLDP) and LLDP-MED Network diagnostic Cable diagnostic technology provides the mechanism to detect and report potential cabling issues ICMPv6/ICMPv4 remote ping SMTP/Syslog remote alarm Four RMON groups (history, statistics, alarms and events) SNMP trap for interface link up and link down notification System Log PLANET Smart Discovery Utility for deployment management
