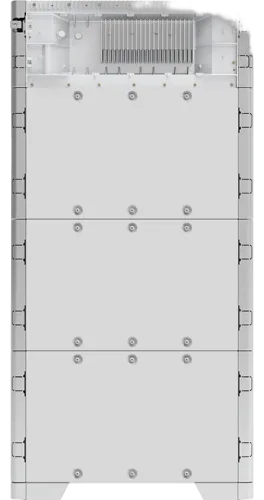

Huawei Battery Module 5kW Huawei Luna2000

The Huawei Luna2000 5kW Battery Module is a lithium iron phosphate storage module with a 5 kWh capacity for solar energy storage. It delivers a maximum output of 2.5 kW and is designed for both indoor and outdoor use. Huawei Luna2000 5kW Battery Module: Key Benefits at a Glance LiFePO4 Cell Technology: 16 LFP cells per energy pack for stable storage performance More Usable Energy: 10% additional usable energy Precision Management: 4x improved management accuracy with 8 sensors per energy pack Flexible Installation: Floor stand included as standard, wall mounting optional Quiet Operation: Noise emissions below 29 dB through natural convection Performance & Capacity The battery module has a capacity of 5 kWh with a usable capacity of 5 kWh. The maximum output is 2.5 kW, with a peak output of 3.5 kW for up to 10 seconds. In a single-phase system, the module operates at a nominal voltage of 450 V and a voltage range of 350 to 560 V. In a three-phase system, the nominal voltage is 600 V with an operating range of 600 to 980 V. The module provides 10% more usable energy and 4x improved management accuracy. Each energy pack contains 16 LFP cells and 8 sensors for condition monitoring. Design & Installation The module is based on lithium iron phosphate (LiFePO4) technology and is suitable for both indoor and outdoor use. Its dimensions are 670 mm x 150 mm x 600 mm, with a weight of 63.8 kg including the floor stand toolkit. Installation is typically on a floor stand, with optional wall mounting available. Cooling is achieved through natural convection, resulting in noise emissions below 29 dB. The module can operate at altitudes up to 4,000 m and tolerates relative humidity levels from 5% to 95% RH. Communication & Display Communication is via RS485/CAN and is intended for parallel operation. An SOC status indicator and LED indicator display the current charge level directly on the module. Safety & Certifications The battery module is certified to VDE AR-E 2510-50, RCM, CEC, IEC 62619, IEC 60730, and UN38.3. Emergency extinguishing time is 15 seconds. Technical Specifications Cell Technology: Lithium iron phosphate (LiFePO4) Number of Battery Modules: 1 Battery Module Capacity: 5 kWh Usable Capacity: 5 kWh Maximum Output: 2.5 kW Peak Output: 3.5 kW, 10 s Nominal Voltage (Single-Phase): 450 V Operating Voltage Range (Single-Phase): 350 - 560 V Nominal Voltage (Three-Phase): 600 V Operating Voltage Range (Three-Phase): 600 - 980 V Cells per Energy Pack: 16 LFP cells Sensors per Energy Pack: 8 sensors Usable Energy Increase: 10% more usable energy Management Accuracy: 4x improved Communication: RS485/CAN (parallel operation only) Display: SOC status indicator, LED indicator Cooling: Natural convection Noise Emissions: 29 dB Environment: Outdoor / Indoor Max. Operating Altitude: 4000 m Relative Humidity: 5% - 95% RH Dimensions (W x D x H): 670 mm x 150 mm x 600 mm Weight (incl. floor stand toolkit): 63.8 kg Battery Module Dimensions (W x D x H): 670 mm x 150 mm x 360 mm Battery Module Weight: 50 kg Installation: Floor stand (standard), wall mounting (optional) Battery Model: LUNA2000-5-E0 Emergency Extinguishing Time: 15 s Certifications: VDE AR-E 2510-50, RCM, CEC, IEC 62619, IEC 60730, UN38.3
