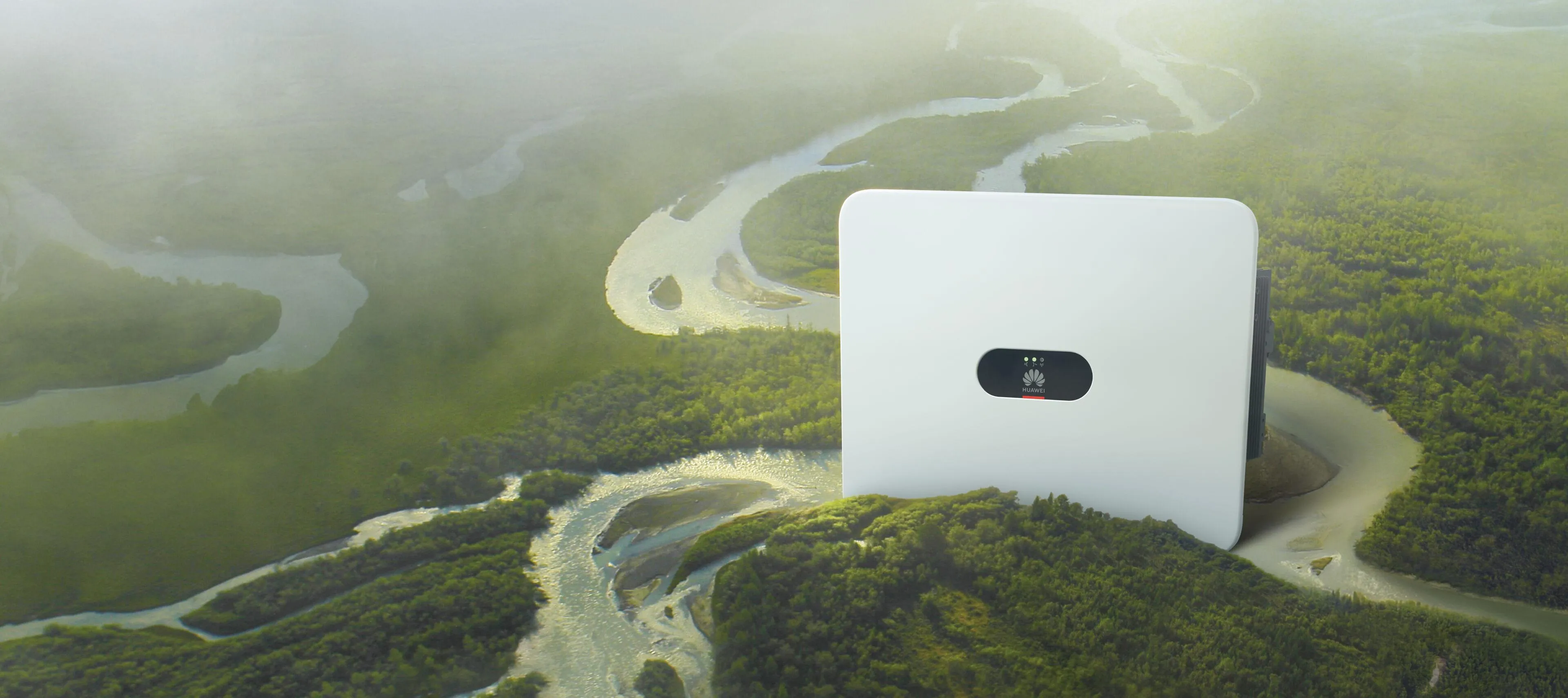

Huawei 25kW inverter with high current, hybrid, three-phase, 2 mppt, without display

Key Benefits at a Glance

• High Efficiency: up to 98.4% maximum efficiency and 98.2% European-weighted efficiency
• Two MPPT Trackers: up to four inputs across two trackers for flexible module configuration
• Active AFCI Safety: interrupts DC arcs within 0.5 seconds
• Hybrid Operation: compatible with LUNA2000-S0 and LUNA2000-S1 storage models
• Intelligent Cooling: Smart Air Cooling design at a total weight of 21 kg
• No Display: status monitoring via LED indicators, Wi-Fi, and the FusionSolar app

Performance and Yield

The inverter processes a recommended maximum PV power of 37,500 Wp, converting it into usable AC power with a European-weighted efficiency of 98.2%. The maximum input voltage is 1,100 V with a nominal input voltage of 600 V, and startup begins at 200 V. Each of the two MPPT trackers supports up to 30 A input current in dual-string operation or 20 A in single-string operation, with a maximum short-circuit current rating of 40 A.

The MPPT operating range spans from 200 V to 1,000 V, while the full-load range lies between 530 V and 800 V. On the output side, the inverter delivers 25,000 W of rated power, with a maximum apparent power of 27,500 VA and a maximum active power of 27,500 W at cosφ = 1. The rated output voltage is designed for 230 V AC / 400 V AC, alternatively 220 V AC / 380 V AC or 240 V AC / 415 V AC at 3 W/N + PE. The adjustable power factor ranges from 0.8 leading to 0.8 lagging, with a maximum total harmonic distortion of 3%.

Safety and Protection Features

The inverter is equipped with an active AFCI protection device that disconnects DC arcs within 0.5 seconds. Additional safety features include islanding detection, AC overcurrent protection, DC reverse polarity protection, and DC insulation resistance monitoring. On the DC side, Type II surge protection is integrated, while the AC side is compatible with Type II protection classes according to EN/IEC 61643-11. A residual current monitoring unit and an input-side disconnect device complete the protection measures. The overvoltage category is rated PV II / AC III.

Storage Integration and Compatibility

As a hybrid inverter, the device supports Huawei Smart-String ESS models LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-S1. The maximum charging power is 21 kW in single-string operation or 25 kW in dual-string operation, with a maximum discharge power of 25.0 kW. Up to three inverters can be operated in parallel with a Smart-String ESS. The inverter is also compatible with the optimizer models SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, and MERC-1300W-P.

Communication and Commissioning

Communication is standard via RS485. Optional Wi-Fi or Ethernet is available through the Smart Dongle-WLAN-FE, while mobile data via 4G/3G/2G can be added using the Smart Dongle-4G. The SmartAssistant solution is also available as an option. There is no integrated display; status is indicated via LED lights, and configuration and monitoring are performed via Wi-Fi and the FusionSolar app. The rated AC grid frequency is 50 Hz or 60 Hz.

Environmental Conditions and Compliance

The inverter operates at a relative humidity of 0% to 100% RH and is designed for a maximum operating altitude of 4,000 m, with derating applied above 2,000 m. The enclosure measures 546 mm × 460 mm × 228 mm and weighs 21 kg. Cooling is provided by a Smart Air Cooling system. The device complies with the standards EN/IEC 62109-1, EN/IEC 62109-2, IEC 61727, IEC 62116, IEC 61683, and EN 50530, as well as the connection guidelines G99, VDE 4105, EN 50549-1, UTE 15-712-1/VFR 2019, UNE 217002, NRS 097-2-1, NTS 631, and ABNT NBR 16149/16150.
