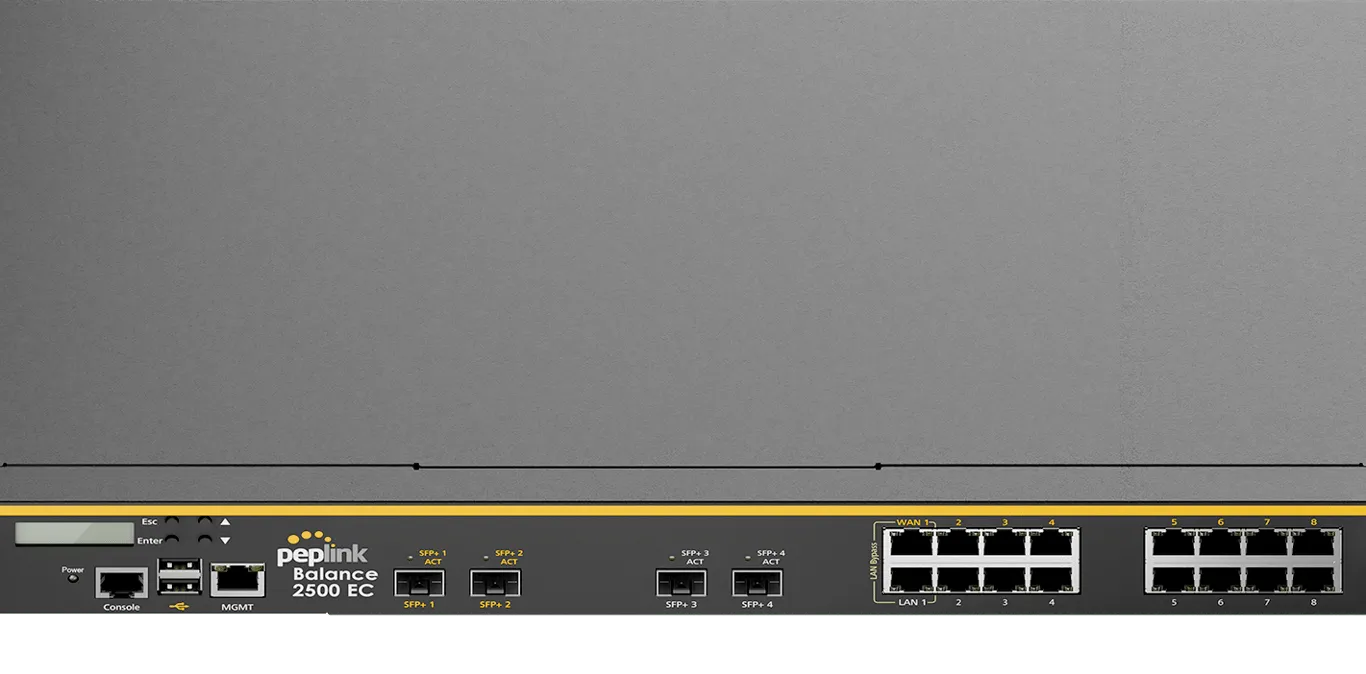

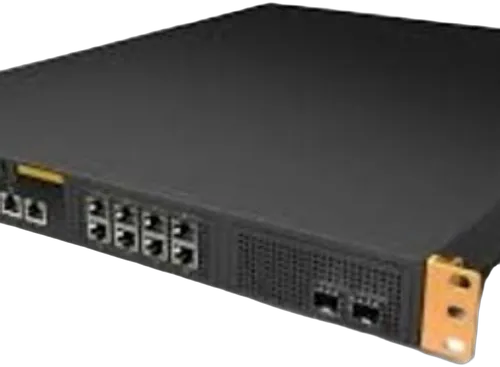

Peplink Balance 2500 EC

Key Highlights at a Glance

• Uninterrupted Connectivity: Real-time automatic failover across multiple WAN connections without session disruption.
• Peplink SpeedFusion: Proprietary VPN bonding technology for aggregated bandwidth, packet loss correction, and seamless redundancy.
• Intelligent Traffic Management: Application-based prioritization and dynamic path selection for optimal Quality of Service.
• Centralized Management: Seamless integration with Peplink InControl for cloud-based monitoring, configuration, and reporting.
• High Availability: Support for VRRP and redundant hardware design for maximum failover protection.
• Comprehensive Security: Built-in firewall, VPN termination, and Deep Packet Inspection (DPI) for granular policy control.
• Scalable Performance: Engineered for high throughput rates in enterprise environments with growing bandwidth demands.

Powerful SD-WAN Platform

The Balance 2500 EC serves as the core of a modern, software-defined WAN architecture. It aggregates multiple broadband, MPLS, and cellular connections into a single logical, highly available tunnel and dynamically optimizes traffic based on latency, jitter, and packet loss. This ensures that mission-critical applications such as VoIP, video conferencing, and ERP systems always receive the required bandwidth and redundancy—even during line disruptions.

Thanks to integrated Quality of Service mechanisms, bandwidth limits can be granularly enforced per user, group, or application. The DPI engine automatically classifies over 1,000 applications, enabling differentiated traffic control without manual rule configuration.

Security and VPN

The Balance 2500 EC functions as a powerful VPN concentrator for site-to-site networking and remote access. It supports IPsec, L2TP, and Peplink’s proprietary SpeedFusion protocol, which bundles multiple WAN links into a single encrypted tunnel, increasing total bandwidth. Integrated firewall features including SPI, DoS protection, and application-specific policies safeguard the network against external threats. Additionally, the optional captive portal function enables secure guest access control with individual authentication.

Deployment Scenarios

The Balance 2500 EC is designed for large branch offices, headquarters, and data centers requiring highly available internet connectivity with centralized control. Typical use cases include multi-site VPN networking, guest WLAN provisioning with bandwidth management, and securing point-of-sale systems. With support for USB modems and Android tethering, the device can also serve as a primary or backup cellular solution in environments without fixed-line infrastructure.
