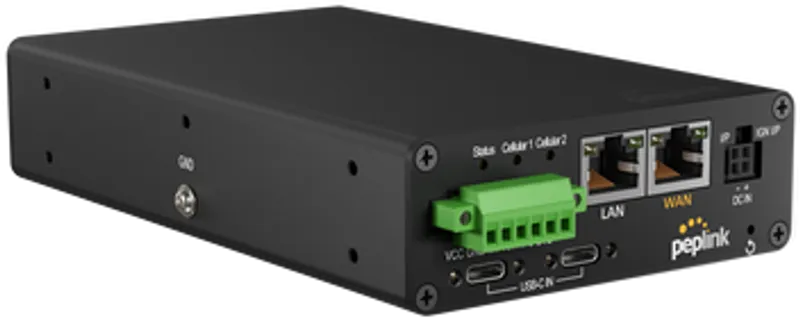

Peplink MAX Transit Duo Pro Bundle Offer (2-Year)
The MAX Transit Duo Pro Bundle Offer (2-Year) is a comprehensive service package for the Peplink MAX Transit Duo Pro that ensures businesses uninterrupted, highly available connectivity. With dual cellular modems, SpeedFusion VPN, and Wi-Fi 6, it delivers maximum reliability and performance for both mobile and fixed applications. The 2-year bundle includes hardware service and advanced software features for continuous operation in demanding environments.
- Embedded Cellular Modems
- 2x Embedded Cellular Modems with Redundant SIM Slots
- Cellular Data Rate (Downlink/Uplink)
- CAT-12: 600 Mbps / 150 Mbps, CAT-7: 300 Mbps / 150 Mbps
- Antenna Connectors (Cellular)
- 4x SMA Cellular Connectors
- Antenna Connector (GPS)
- 1x SMA GPS Antenna Connector
Value add — if you like
Authorized Peplink e-tailer
Peplink Certified Gold Partner
Peplink Certified Engineer (PCE) — Johannes Fickeis, Christian Heckel
Peplink Certified Associate (PCA) — Johannes Fickeis, Christian Heckel
Peplink Certified Sales Specialist (PCSS) — Johannes Fickeis, Christian Heckel- PCE TrainerPCE Trainer — Johannes Fickeis
- Hosted FusionHub & SpeedFusion
- InControl management
- Rollout & configuration
Show more
You can deploy this product entirely yourself. If you prefer, we support you in the background — configuration, rollout, hosted FusionHub / SpeedFusion and InControl management. Your customer relationship stays yours.
Description
Key Benefits at a Glance
- Dual Cellular Modems: 2x Embedded Cellular Modems with redundant SIM slots
- Wi-Fi 6: Simultaneous Dual-Band (2.4/5 GHz) 2x2 MIMO, Wi-Fi WAN/AP
- SpeedFusion VPN: Hot Failover, Smoothing, Bandwidth Bonding, 256-bit AES Encryption
- Edge Computing: 8 GB storage for applications
- Certifications: FCC, CE, RoHS, E-Mark, EN61373, EN50155, EN61000
- Power Supply: Dual USB-C Power Inputs, 12V–56V DC, Ignition Detection
Highly Available Connectivity and Performance
The MAX Transit Duo Pro integrates two powerful cellular modems with redundant SIM slots, supporting CAT-12 data rates of up to 600 Mbps downlink and 150 Mbps uplink, as well as CAT-7 with 300/150 Mbps. Combined with SpeedFusion VPN, the device enables Hot Failover, Smoothing, and bandwidth bonding across multiple WAN connections—including the Gigabit Ethernet WAN port. VPN throughput reaches 400 Mbps without and 200 Mbps with 256-bit AES encryption, while router throughput is at 1 Gbps. The simultaneous dual-band Wi-Fi 6 (2x2 MIMO) can function as either WAN or access point, reliably delivering high bandwidth to 25 to 150 recommended users. Depending on the license, the bundle supports up to 20 SpeedFusion VPN peers.
Rugged Design for Mobile and Industrial Environments
The MAX Transit Duo Pro is built for tough deployment and meets stringent industrial certifications such as EN61373 (shock and vibration resistance) and EN50155 for rail applications. The extended operating temperature range from -40°C to +65°C and humidity from 15% to 95% (non-condensing) ensure reliable operation in extreme environments. Power can be supplied flexibly via two USB-C power inputs (20 V, 3 A), a wide-range DC input (12 V–56 V DC), or the included AC adapter. The Power Port with ignition detection enables automatic startup in vehicle applications.
Flexible Management and Security
The bundle offers comprehensive SIM flexibility: in addition to Nano-SIM (4FF), the router supports Peplink eSIM, BYO eSIM with two profiles per modem, as well as RemoteSIM and FusionSIM for centralized SIM provisioning. An RS232-compatible serial terminal port allows local configuration. SpeedFusion VPN secures data transmission with 256-bit AES encryption and enables edge computing with 8 GB of integrated storage for custom applications—ideal for decentralized data processing directly at the router.
Specifications
| Embedded Cellular Modems | 2x Embedded Cellular Modems with Redundant SIM Slots |
| Cellular Data Rate (Downlink/Uplink) | CAT-12: 600 Mbps / 150 Mbps, CAT-7: 300 Mbps / 150 Mbps |
| Antenna Connectors (Cellular) | 4x SMA Cellular Connectors |
| Antenna Connector (GPS) | 1x SMA GPS Antenna Connector |
| SIM Options | Nano-SIM (4FF), Peplink eSIM, BYO eSIM (2 profiles per modem), RemoteSIM from SIM Injector, FusionSIM |
| Number of SpeedFusion VPN Peers | 2 / 5 / 10 / 20 |
| Recommended Users | 25–150 |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| WAN Interface | 1x 10/100/1000M Ethernet |
| LAN Interface | 1x 10/100/1000M Ethernet |
| Router Throughput | 1 Gbps |
| Edge Computing Storage | 8 GB |
| Dimensions | 6.3 x 3.8 x 1.3 inches / 160 x 97 x 33.5 mm |
| Weight | 1.61 pounds / 730 g |
| Power Input (Power Port) | 12V – 56V DC |
| Power Input (AC Adapter) | AC Input 100V–240V / DC Output 12V |
| Power Input (USB-C) | 2x USB-C 20V, 3A per input |
| Power Input (Terminal Block) | 12V – 56V DC |
| Power Consumption (Nominal) | 10 W |
| Power Consumption (Max) | 18 W |
| Power Features | 2x USB-C Power Input, Power Port with Ignition Detection |
| Serial Interface | RS232-compatible |
| SpeedFusion VPN Throughput (Unencrypted) | 400 Mbps |
| SpeedFusion VPN Throughput (256-bit AES) | 200 Mbps |
| SpeedFusion Features | Hot Failover, Smoothing, Bandwidth Bonding, Edge Computing with 8 GB Storage, Ignition Detection |
| Wi-Fi Interface | Simultaneous Dual-Band (2.4/5 GHz) Wi-Fi 6 2x2 MIMO |
| Wi-Fi Functions | Wi-Fi WAN and/or AP |
| Antenna Connectors (Wi-Fi) | 2x RP-SMA Wi-Fi Antenna Connectors |
