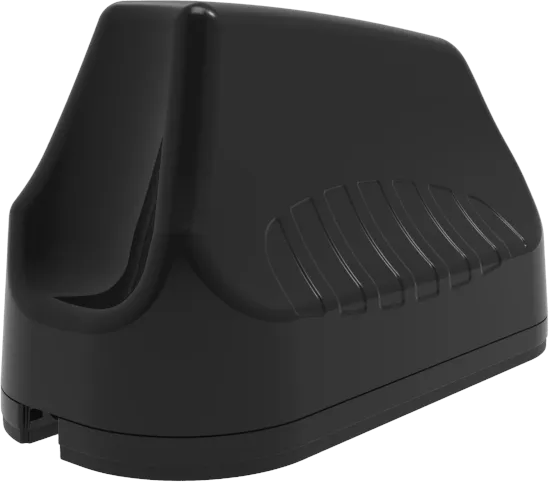

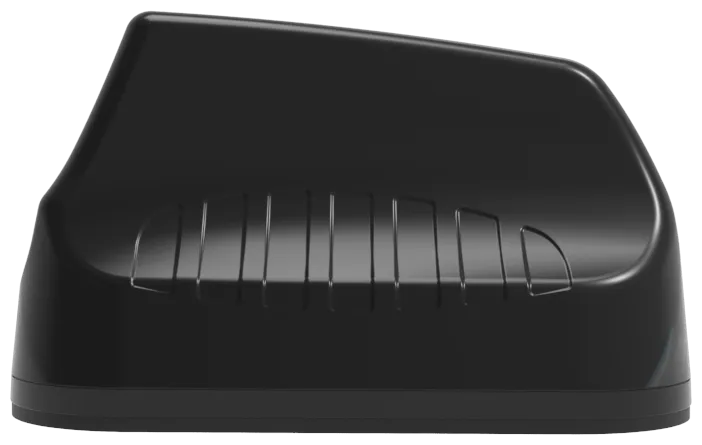

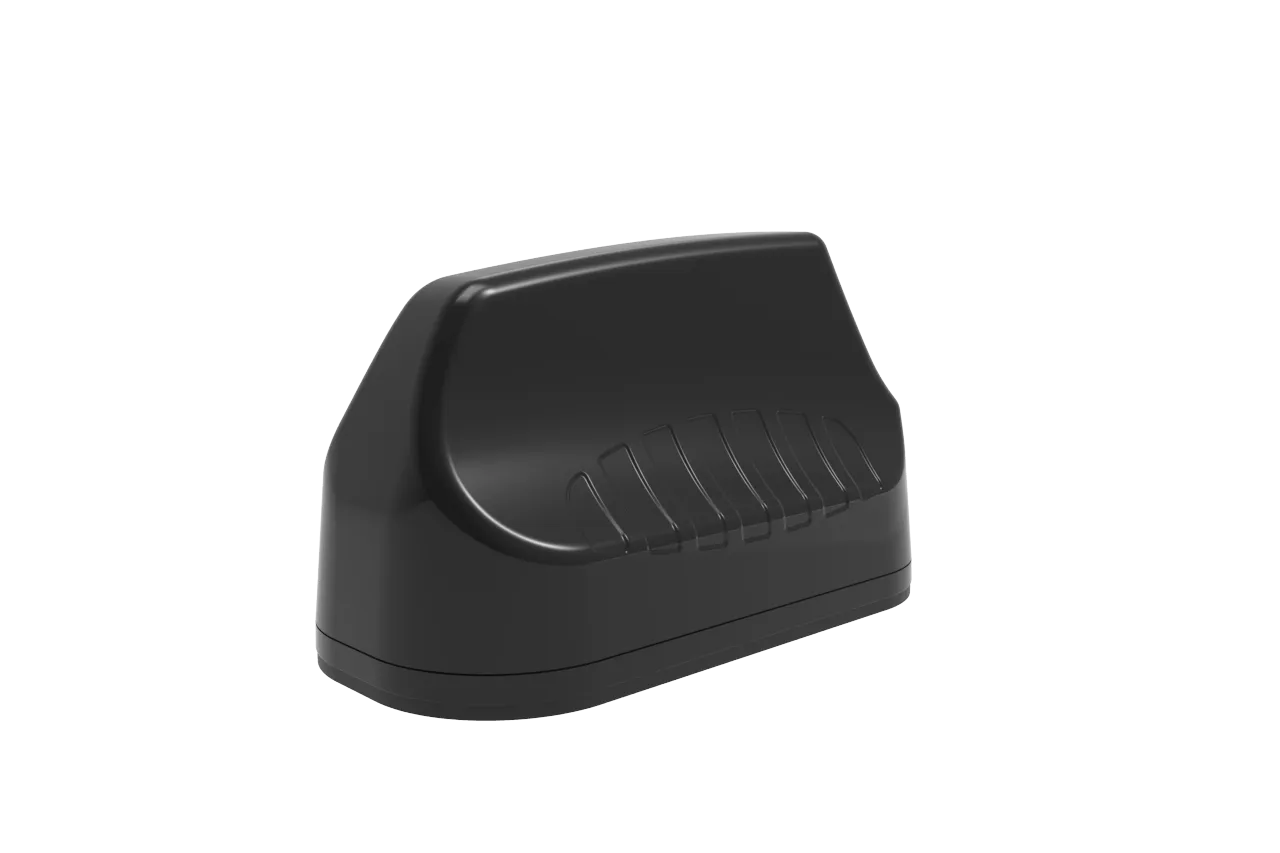

Poynting · Antennen · 5G/LTE · KFZ/Marine · A-MIMO-0003-V2-17-B · schwarz · SMA (M) & RPSMA Adapter · NEW

The Poynting A-MIMO-003-V2-17-B automotive/marine 5G/LTE antenna SMA (M) & RPSMA - Black. Overview. The MIMO-3-17 is a 7-in-1 high-performance multi-frequency antenna in a single housing, providing four cellular, two Wi-Fi and one GPS/GLONASS antenna. The four cellular MIMO antennas (for 2G/3G/4G) cover the current bands from 698 MHz to 2700 MHz, as well as the emerging LTE and 5G spectrum for the CBRS bands of 450 MHz and 3.5 GHz, which is becoming increasingly popular for LTE among various international mobile network operators. The antenna's ultra-wideband performance enables use across different carriers and technologies and is ready for future mobile technologies up to 3.8 GHz for 5G applications. The antenna also offers two separate dual-band Wi-Fi antennas that simultaneously provide 2.4 GHz and 5 GHz on each antenna with 2x2 MIMO capability. The seventh antenna is a high-performance active GPS/GLONASS system that operates down to -40 °C. The MIMO-3-17 outperforms most competitors, as great care was taken with the design during the development of this high-performance antenna. The radiation patterns of all radiating elements offer an excellent balance between omnidirectional characteristics, pattern diversity and good radiation at the desired height. This is an important criterion for the transport and marine market, for which the antenna was specifically developed. Main areas of use are commercial/industrial vehicles, shipping, M2M and other IoT systems that use a variety of radio technologies while being future-proof thanks to the wide frequency band. Features. Ultra-wideband bands 410MHz to 470MHz, 698MHz to 2700MHz and 3400MHz to 3800MHz. Cleverly engineered, decorrelated antennas ensure outstanding MIMO performance in both the Wi-Fi (dual-band) and cellular bands. The above functions are maintained in the relevant bands from 698MHz to 5800MHz and in the 450MHz band. Includes a high-performance GPS/GLONASS antenna. Careful mechanical design ensures robustness, corrosion, water and dust resistance (IP68). Independent of the ground plane: the MIMO-3 is equipped with an internal ground plane, making this antenna suitable for installation on any surface. Application area. Broadband and Wi-Fi distribution, automation and telemetry for buses, utility companies, trucks and public safety vehicles. Industrial factory automation, robotic machinery and other M2M system telemetry. Agricultural automation such as M2M & IoT. Broadband cellular-to-Wi-Fi distribution for marine / boats (inland and coastal vessels). Communication, telemetry and automation (M2M & IoT) for mining vehicles and machinery. Technical data. Wind survival: <220 km/h. Temperature range (operating):. -40°C to +80°C. Environmental conditions: outdoor/indoor. Ingress protection rating/standard:. IP 68. Salt spray: MIL-STD 810F/ASTM B117. Relative humidity in operation: up to 98%. Storage humidity: 5% to 95% - non-condensing. Storage temperature: -40°C to +80°C. Flammability rating of housing:. UL 94-HB. Impact resistance: IK 10. Product dimensions 253 mm x 128 mm x 144 mm. Packaging dimensions: 265 mm x 211 mm x 204 mm. Weight: 1.51 kg. Weight packed: 1.61 kg. Radome material: UV-stable ASA. Mounting type: spigot, surface and magnetic mounting options. Color: black.
