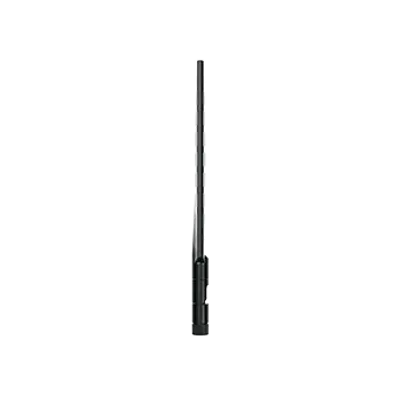

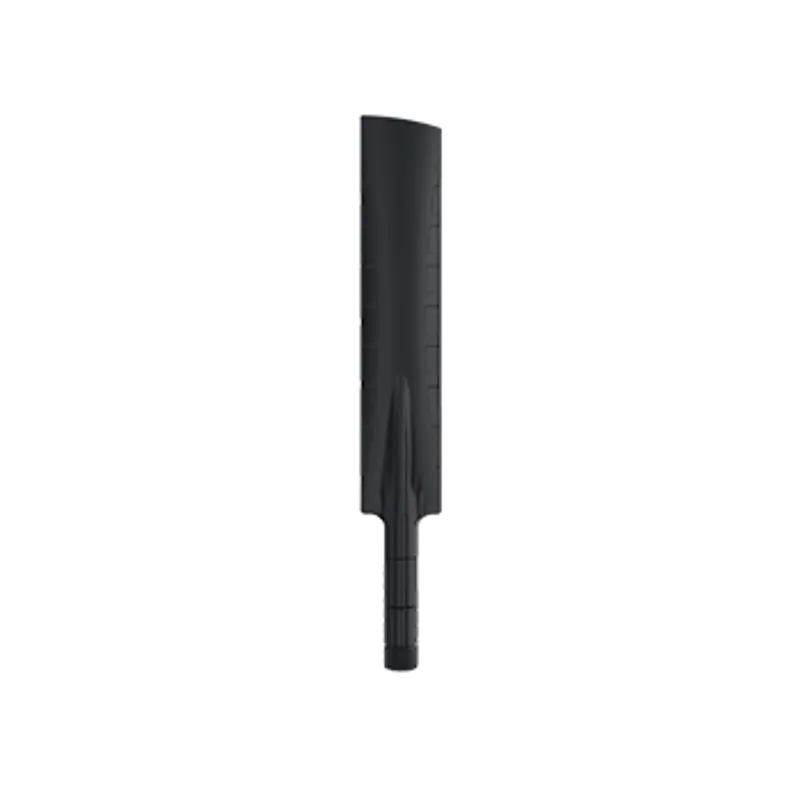

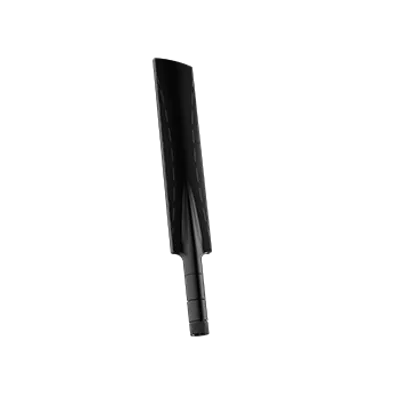

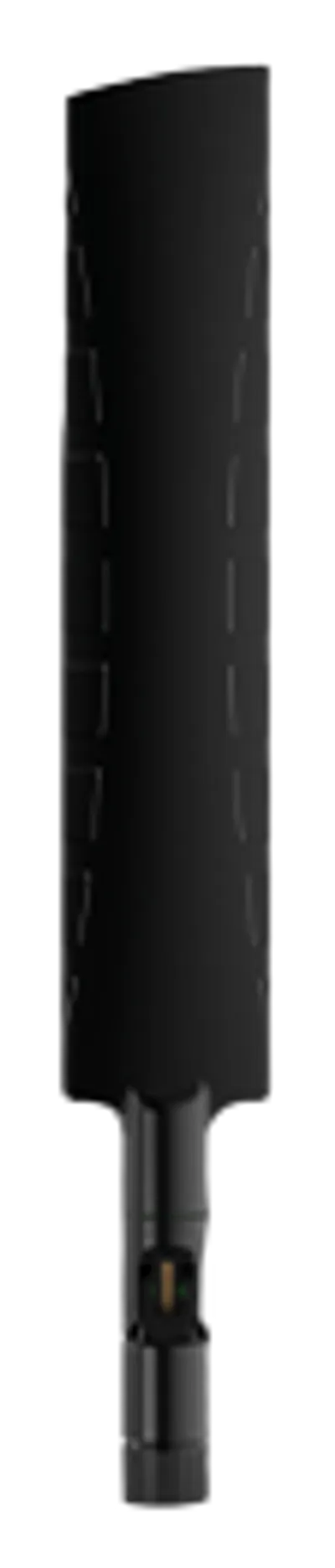

Poynting · Antennen · Wi-Fi · A-OMNI-0785-V1-01 · SISO · grau · SMA (m)

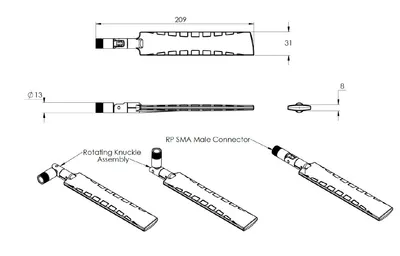

The A-OMNI-0785 is an omnidirectional dual-band Wi-Fi 6E SISO antenna with 4 dBi gain in the 2400–7200 MHz frequency range, designed for router and device mounting with an RP-SMA (m) connector. Key Benefits at a Glance Dual-band coverage for 2.4 GHz and 5–7.2 GHz Wi-Fi bands Wi-Fi 6E compatible with support for 802.11g, 802.11n, 802.11ac, and 802.11ax standards Omnidirectional with linear polarization for 360° reception Adjustable device mounting as a surface/desk mount version Designed for use in various environments Frequency Coverage & Performance The antenna covers the frequency range from 2400 to 7200 MHz, supporting both the 2.4 GHz band and the 5 GHz and 6 GHz bands. It is compatible with Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), and Wi-Fi 6E (802.11ax) standards. With a gain of 4 dBi (excluding cable loss), it delivers improved connection quality and transmission speeds for routers and modems. Design & Mounting As a SISO antenna with one Wi-Fi port and an RP-SMA (m) connector, the A-OMNI-0785 is designed for direct device and router mounting. The mounting type is specified as a surface/desk mount with an adjustable tilt feature, allowing flexible alignment at the installation site. Its omnidirectional characteristic with linear polarization ensures 360° reception in all directions. Environmental Protection & Compliance The antenna complies with RoHS 3 requirements. The manufacturer provides a 24-month warranty on the product. Technical Specifications Gain: 4 dBi (excluding cable loss) Type: Omnidirectional SISO Technology: Wi-Fi Frequency range: 2400–7200 MHz (2400–2500 MHz, 5000–6000 MHz, 6000–7200 MHz) Wi-Fi standards: Wi-Fi 3 (802.11g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) Radiation pattern: Omnidirectional Polarization: Linear MIMO: SISO Wi-Fi ports: 1 Connector: RP-SMA (m) Mounting type: Surface/desk mount, adjustable Certifications: RoHS 3 Warranty: 24 months Package weight: 0.04 kg Package dimensions: 230 x 45 x 13 mm Country of origin: CN
