Poynting BRKT-030 | Die-Cast bracket for the LDPA-92 (horizontal & vertical moun

SKU: a-brkt-030|Unavailable

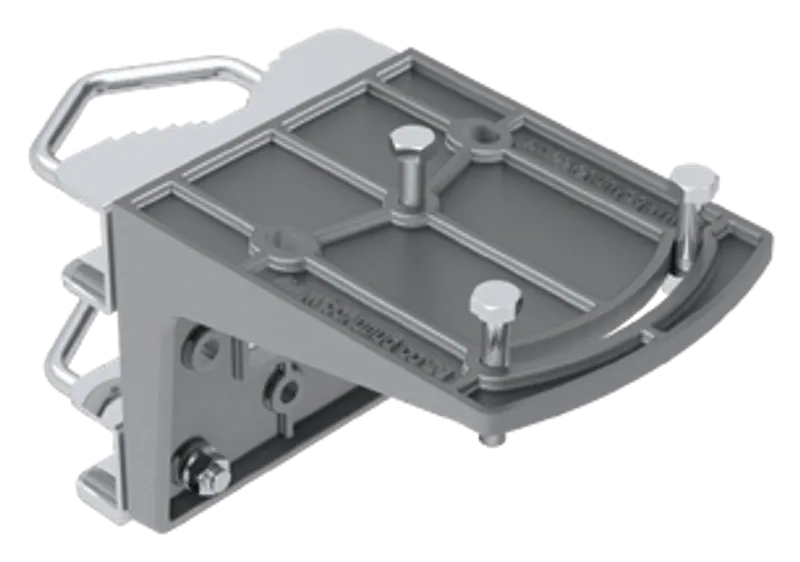

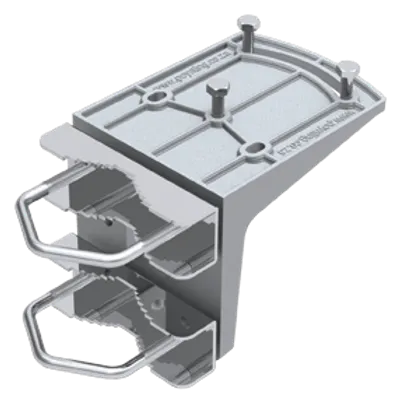

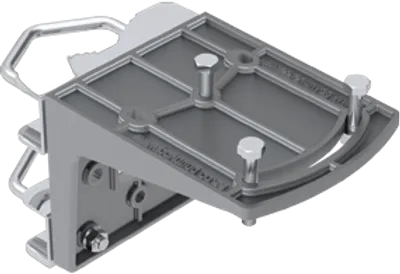

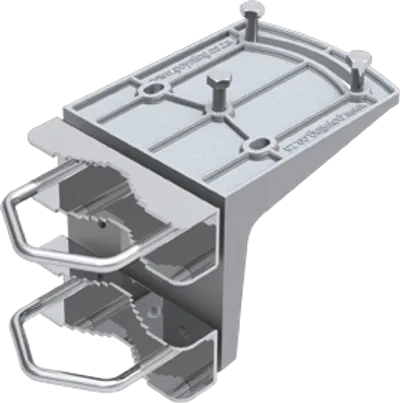

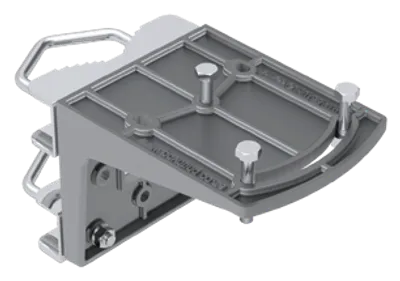

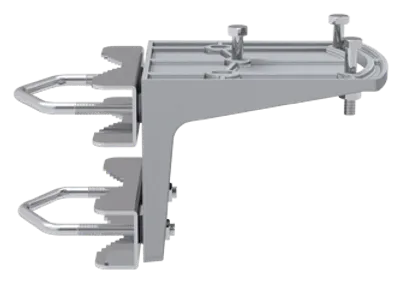

The BRKT-030 is a die-cast mounting bracket from Poynting, designed for the LPDA-92 antenna. It allows both horizontal and vertical pole mounting and comes with stainless-steel mounting hardware.

Designed for
Poynting LPDA-92
Mounting options
horizontal and vertical, pole mount
Material
ADC12 die-cast aluminum
Manufacturing process
die-casting (cast item)
Categories
Network & CommunicationNetwork AccessoriesAntenna Mounting Accessories

€32.94excl. VAT

Description

Key Benefits at a Glance

  • Die-cast mounting bracket for the LPDA-92 antenna
  • Flexible mounting horizontally and vertically on poles
  • Construction from ADC12 die-cast aluminum
  • Includes M6 stainless-steel mounting hardware
  • Warranty 24 months

Construction & Material Properties

The BRKT-030 is manufactured using die-casting from ADC12 aluminum alloy. The surface finish has a roughness of 1.6 to 0.8 μm. With dimensions of 127 × 100 × 97 mm and a weight of 0.337 kg, the mounting bracket is compact and lightweight. The packaging measures 150 × 120 × 120 mm with a shipping weight of 0.396 kg.

Approvals & Standards

The mounting bracket meets CE and RoHS standards in accordance with Directive 2011/65/EU. Fire safety classification is based on UL:1581. Corrosion resistance has been tested to MIL-STD810F/ASTM B117. Poynting provides a 24-month warranty.

Scope of Delivery

The package includes the mounting bracket along with three M6x40 mm screws, six M6 washers, and three M6 lock nuts, all made of stainless steel. The mounting hardware is designed for pole installation of the bracket.

Downloads

Frequently Asked Questions (FAQ)

What certifications does the product carry?
This product carries the following certifications: RoHS 2011/65/EU Compliant, CE, RoHS, UL:1581, MIL-STD810F/ASTM B117.
What warranty does the product come with?
The product comes with a warranty of 24 months.
