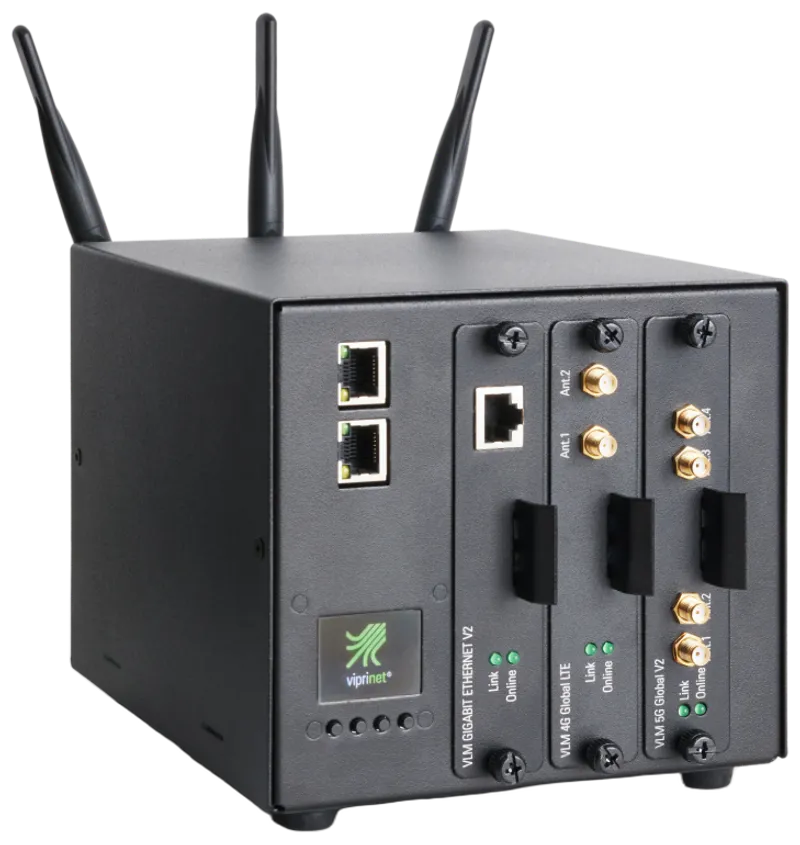

Viprinet Gigabond Desktop 420
The Viprinet Gigabond Desktop 420 is a multichannel VPN router for small offices and mobile sites, bonding multiple internet lines into a single virtual link with a bonding capacity of up to 2,000 Mbps. Its ultra-silent desktop enclosure makes it suitable for home office deployments.
- Ultra-silent
- desktop design suitable for home offices
- 2.5G Ethernet
- LAN interface for high-throughput local connect…
- Fixed 2.5G Ethernet WAN
- port alongside three WAN module slots
- WiFi 6E
- 3x3 MIMO access point supporting 2.4, 5, and 6…
Description
Highlights at a Glance
- Ultra-silent desktop design suitable for home offices
- 2.5G Ethernet LAN interface for high-throughput local connectivity
- Fixed 2.5G Ethernet WAN port alongside three WAN module slots
- WiFi 6E 3x3 MIMO access point supporting 2.4, 5, and 6 GHz bands
- Up to 2,000 Mbps bonding capacity across multiple internet connections
- Up to 50 users recommended for the LAN
Performance & Connectivity
The router provides a 2.5G Ethernet LAN interface and a fixed 2.5G Ethernet WAN port, complementing three WAN module slots for flexible internet connectivity. Bonding capacity reaches up to 2,000 Mbps, aggregating multiple connections into a single high-performance virtual link. The integrated WLAN interface supports WiFi 6E with 3x3 MIMO across 2.4, 5, and 6 GHz bands.
Design & Power
The desktop enclosure measures 147 x 130 x 180 mm and weighs 2 kg without modules. Cooling is handled by an ultra-silent fan. Power is supplied through an external AC/DC adapter accepting 100–260 VAC at 50–60 Hz, with a maximum power consumption of 60 watts and typical consumption of 20 watts.
Management
SNMP support includes both Basic and Extended modes for network monitoring and management. The router is recommended for deployments serving up to 50 users in the LAN, making it suited to small office and mobile site environments.
Specifications
| WAN module slots | 3 |
| Fixed WAN Interface | 2.5G Ethernet |
| LAN Interface | 2.5G Ethernet |
| WLAN Interface | 6E 3x3 MiMo 2.4 / 5 / 6 GHz |
| Bonding capacity | up to 2,000 Mbps |
| Recommended number of users in LAN | 50 |
| SNMP | Basic / Extended |
| Enclosure format | Desktop |
| Dimensions (WxHxD) | 147 x 130 x 180 mm |
| Weight (without modules) | 2 kg |
| Cooling | Ultra-Silent Fan |
| Power rating | 12 VDC, 5 A max |
| Power supply | External AC/DC adapter 100–260 VAC, 50–60 Hz |
| Max. power consumption | 60 Watt |
| Typical power consumption | 20 Watt |
| Working temperature | 0–40° C |
