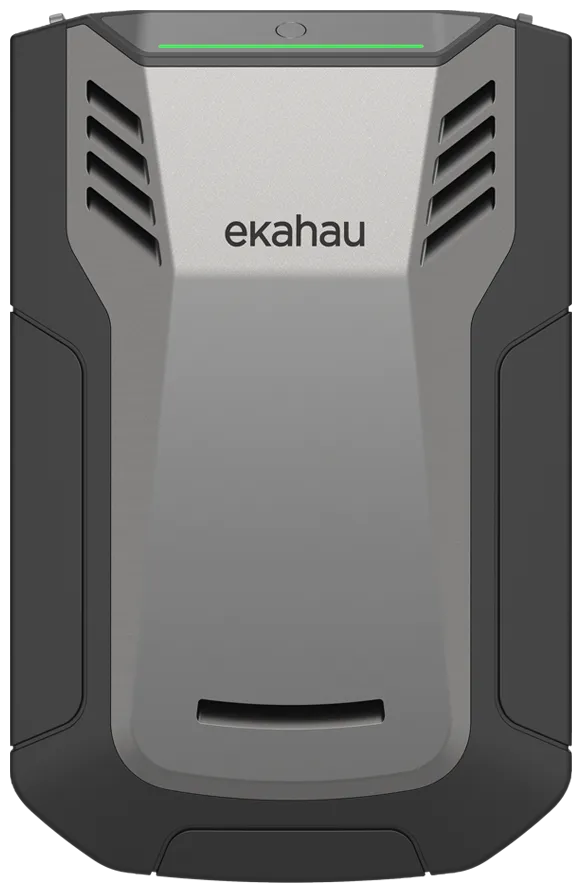

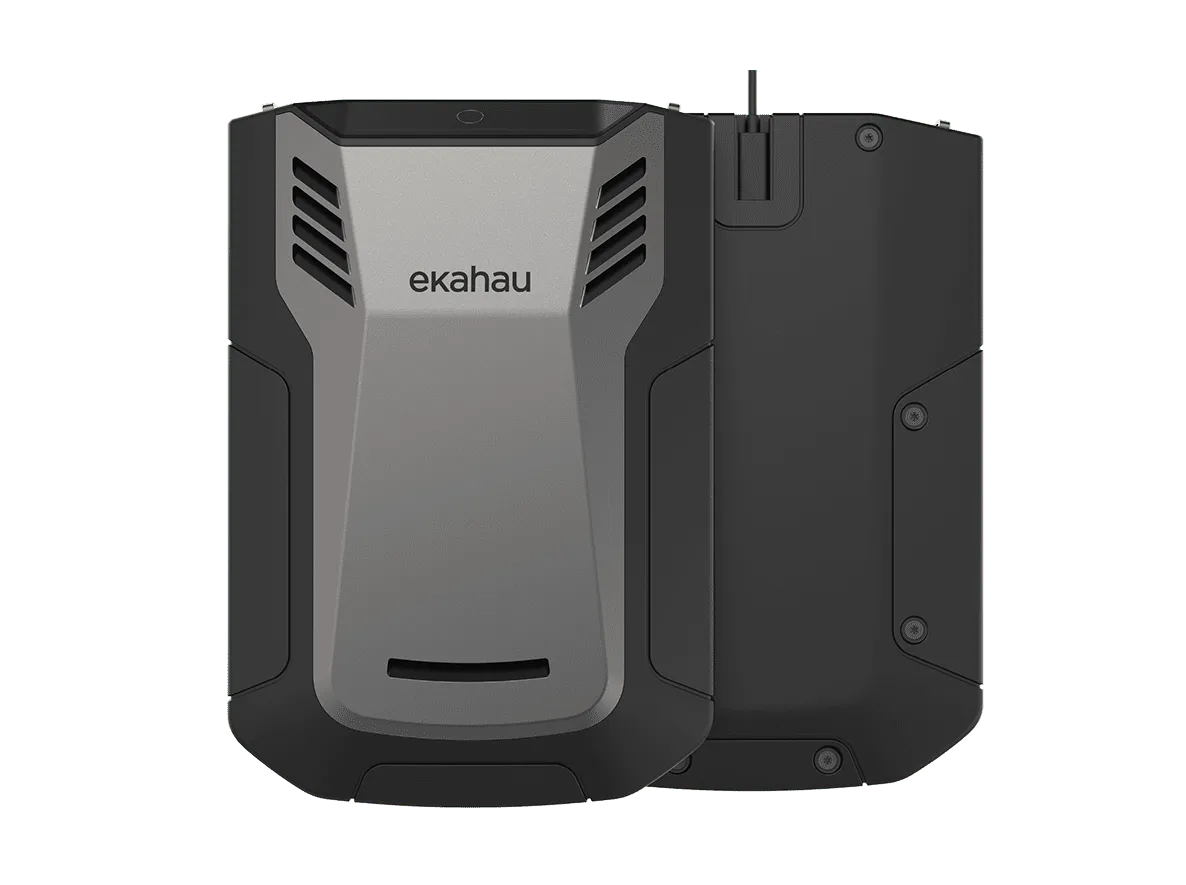

Ekahau Sidekick V2, 2,4/5/6GHz

SKU: esk-2|21 ready to ship

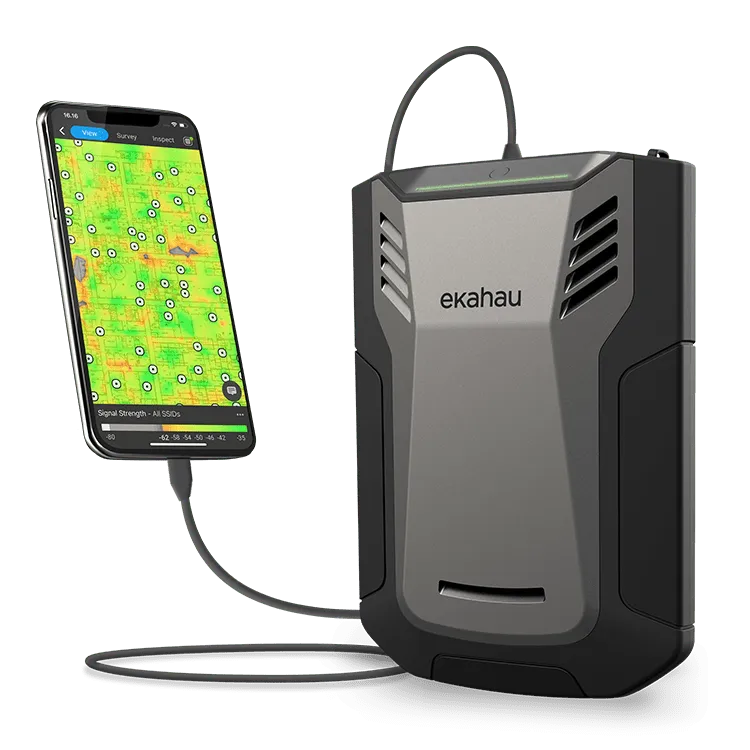

The Ekahau Sidekick 2 is a professional hardware measurement device for Wi-Fi site surveys and spectrum analysis in 2.4 GHz, 5 GHz, and 6 GHz networks (Wi-Fi 6E). When used with Ekahau AI Pro software, it delivers reproducible measurement data for planning, validation, and troubleshooting in professional Wi-Fi environments.

Value add — if you like

Ekahau Reseller Partner
Ekahau Certified Survey Engineer (ECSE) — Christian Heckel

Wi-Fi site survey
Ekahau survey
Network planning & optimisation

You can carry out the site survey entirely yourself. If you prefer, we support you in the background — on-site survey, Ekahau survey and network planning. Your customer relationship stays yours.

Request additional services Request services for this product View our Wi-Fi site survey

Key Features at a Glance

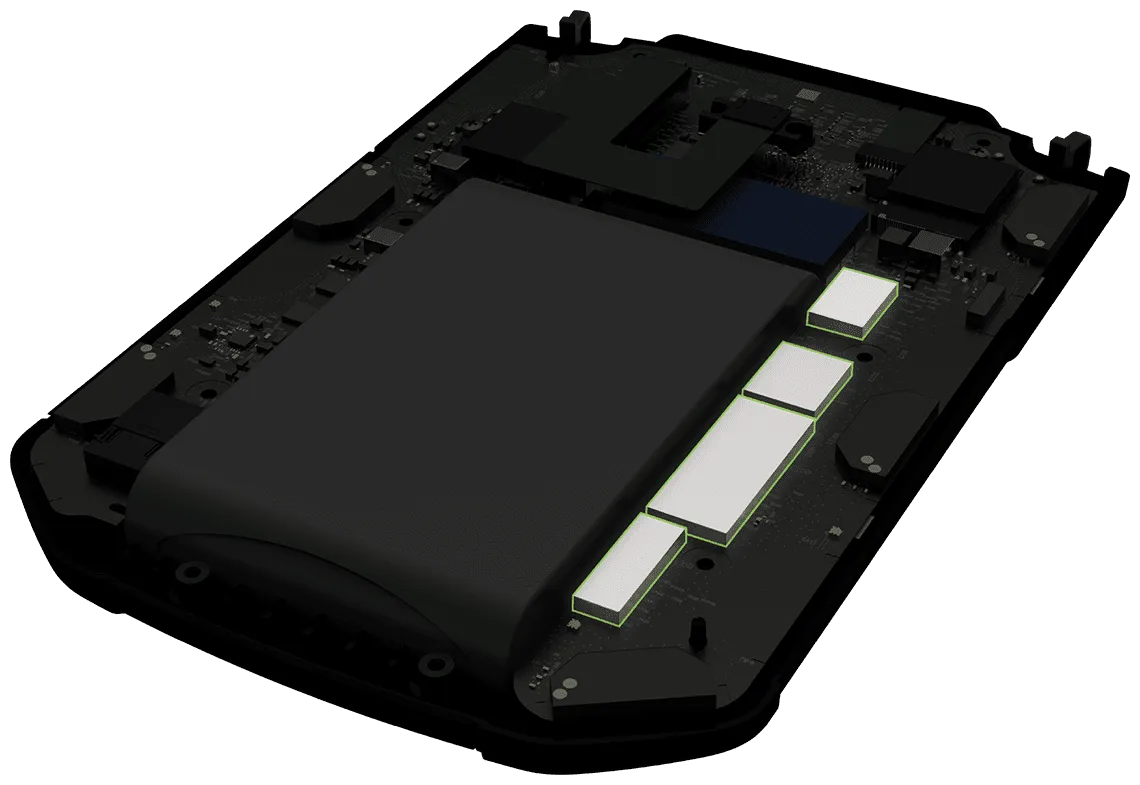

Wi-Fi Radios: 4 tri-band radios for parallel scanning across 2.4/5/6 GHz

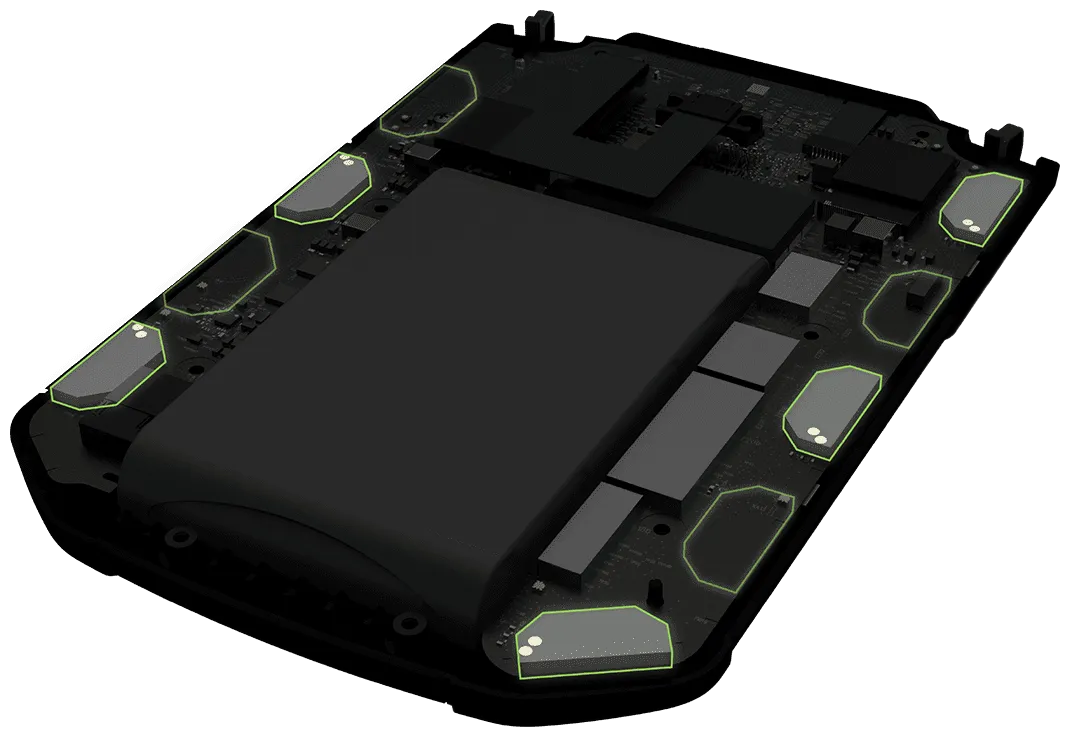

Antennas: 9 built-in 3D antennas for omnidirectional measurement accuracy

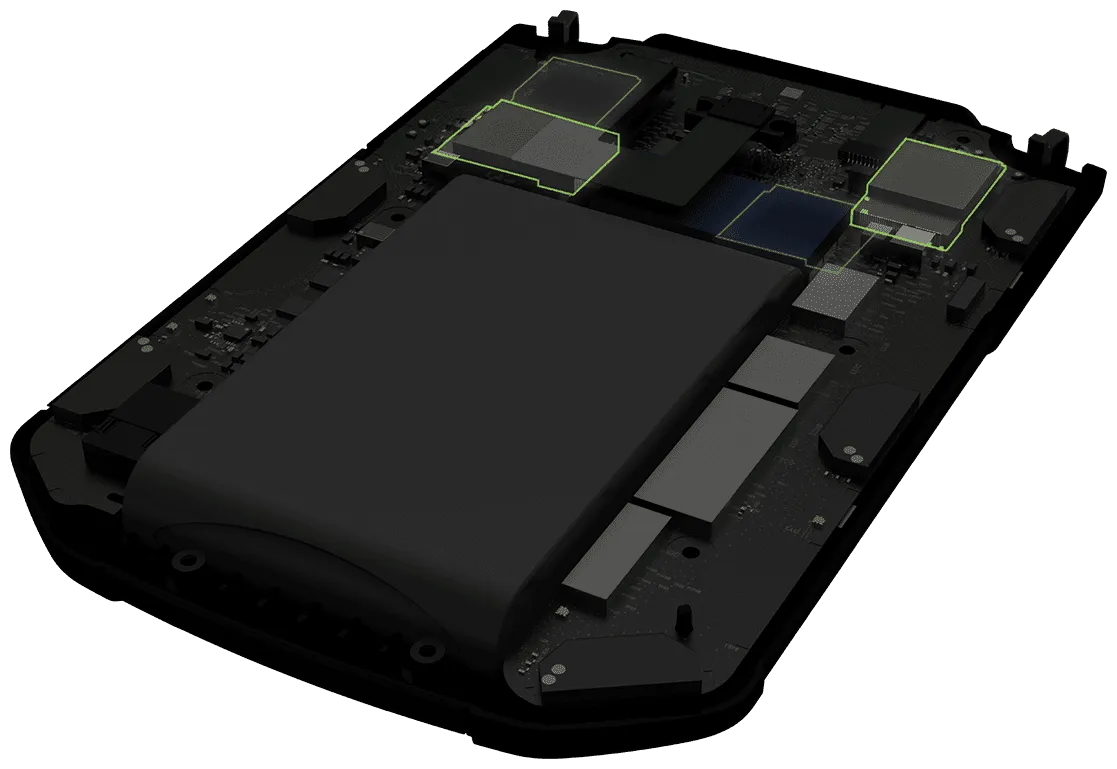

Spectrum Analyzer: up to 50 sweeps per second across 2,400–7,125 MHz
Connection: USB-C for charging and data transfer

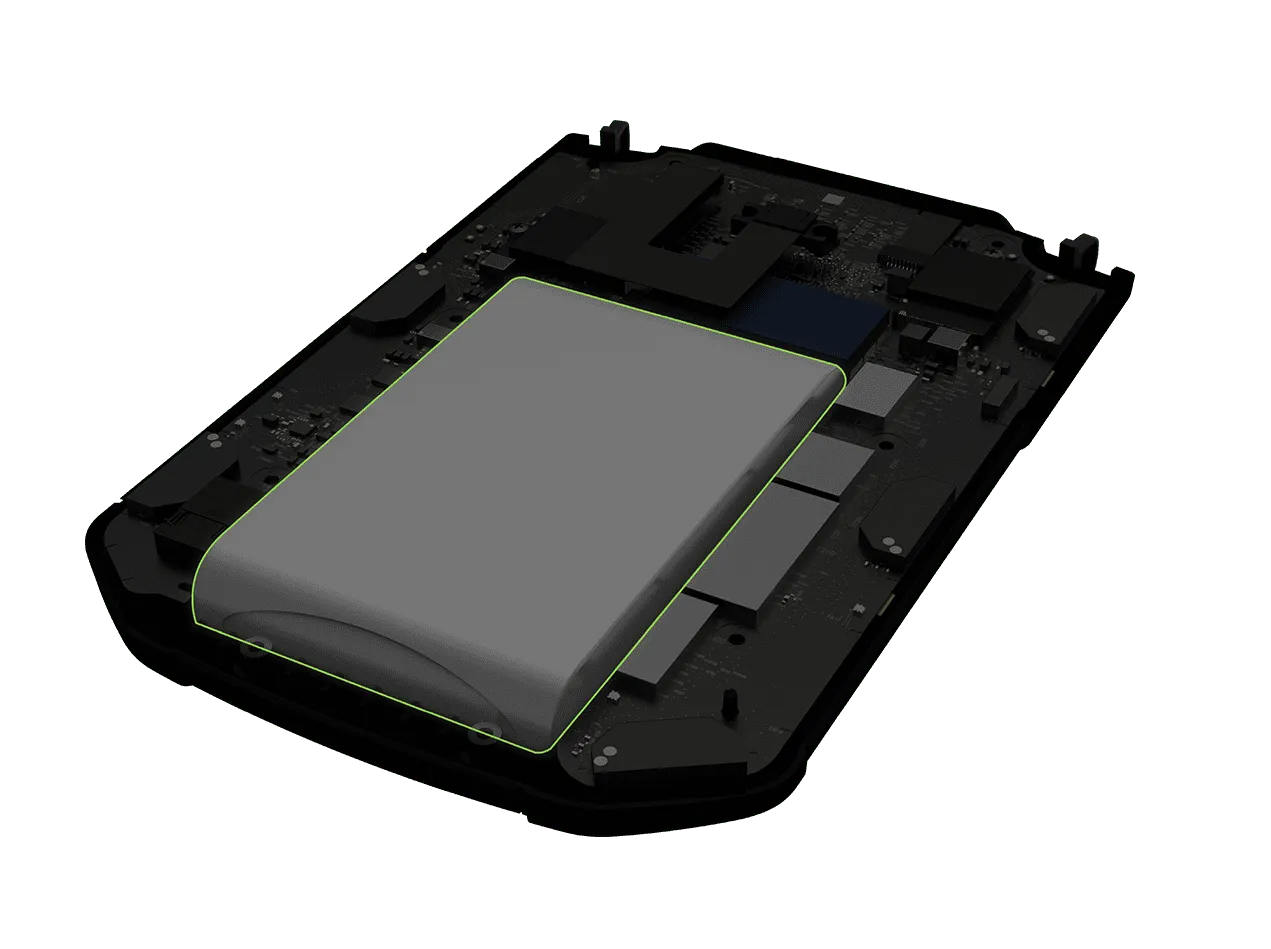

Battery: 96.4 Wh Li-ion battery for all-day use with USB-C fast charging

Use Cases

The Sidekick 2 supports professional Wi-Fi site surveys, validation of access point placement, and troubleshooting in existing networks. Since it measures 2.4, 5, and 6 GHz simultaneously, it covers legacy Wi-Fi 4/5/6 networks as well as new Wi-Fi 6E environments. Compared to the original Ekahau Sidekick, the number of radios doubles (4 instead of 2), the antenna count increases from 7 to 9, and the connection is now via USB-C instead of micro-USB.

Integration with Ekahau AI Pro

As a standalone measurement device, the Sidekick 2 requires Ekahau AI Pro (version 11.1 or later) and an active Ekahau Connect subscription, which includes Ekahau Survey, Ekahau Analyzer, Ekahau Insights, Ekahau Capture, and Ekahau Cloud depending on the license tier.

Measurement Accuracy

The built-in spectrum analyzer covers an amplitude range of -20 to -92 dBm and operates with a frequency resolution of 19 kHz at an 80 MHz capture bandwidth per band—significantly finer than the predecessor (up to 78 kHz, 20 MHz capture bandwidth). The operating temperature range is +5 °C to +35 °C.
