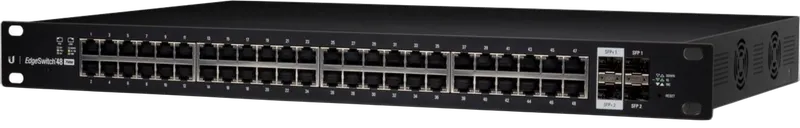

Ubiquiti EdgeSwitch, 48-Port, 750W

Highlights at a Glance

• Port Density: 48 auto-sensing 10/100/1000 Mbps RJ45 ports with PoE+ and 24V passive PoE support
• Uplink Flexibility: 2 SFP+ ports (1/10 Gbps) and 2 SFP ports (1 Gbps) for fiber connectivity
• Non-Blocking Throughput: 70 Gbps total switching capacity with 140 Gbps fabric and 104.16 Mpps forwarding rate
• PoE+ Power Budget: 750W total, delivering up to 34.2W per port under 802.3at and 17W passive 24V
• Rack-Optimized Design: 1U form factor (485 x 43.7 x 374.6 mm) with front-to-back airflow
• Robust Protection: ±24 kV ESD/EMP protection and ETSI300-019-1.4 shock/vibration compliance
• Management Access: RJ45 serial console and Ethernet in-band/out-of-band management

Performance & Throughput

The EdgeSwitch 48-Port 750W processes traffic on all ports simultaneously at line rate, eliminating packet loss even under full load. Its non-blocking architecture delivers 70 Gbps of aggregate throughput, supported by a switching capacity of 140 Gbps and a forwarding rate of 104.16 million packets per second. This ensures smooth operation for bandwidth-intensive applications such as video surveillance, VoIP, and large-scale wireless deployments.

Power over Ethernet Flexibility

Every RJ45 port supports both IEEE 802.3af/at PoE+ and configurable 24V passive PoE, giving you the freedom to power a wide range of devices. The switch automatically detects 802.3af/at-compliant endpoints, while 24V passive PoE can be manually enabled per port via the management interface. With a 750W internal AC/DC power supply, the switch can deliver up to 34.2W per port in 802.3at mode (50–57V) and up to 17W in 24V passive mode (20–27V), making it ideal for high-density access point, camera, and phone installations.

Fiber Uplink Connectivity

Two 10 Gbps SFP+ ports and two 1 Gbps SFP ports provide versatile fiber uplink options for aggregation or long-distance links. The SFP+ interfaces support 1/10 Gbps speeds, enabling high-capacity connections to core switches or routers without bottlenecks. This fiber flexibility allows the EdgeSwitch to serve as a distribution switch in campus or multi-building environments.

Management & Deployment

Administrators can configure and monitor the switch through an RJ45 serial console or Ethernet in-band/out-of-band management. The switch integrates seamlessly into existing network management workflows, and its 1U rack-mountable chassis fits standard 19-inch racks. Front-panel LEDs for PoE, speed, link, and activity on every port simplify troubleshooting and status monitoring at a glance.
