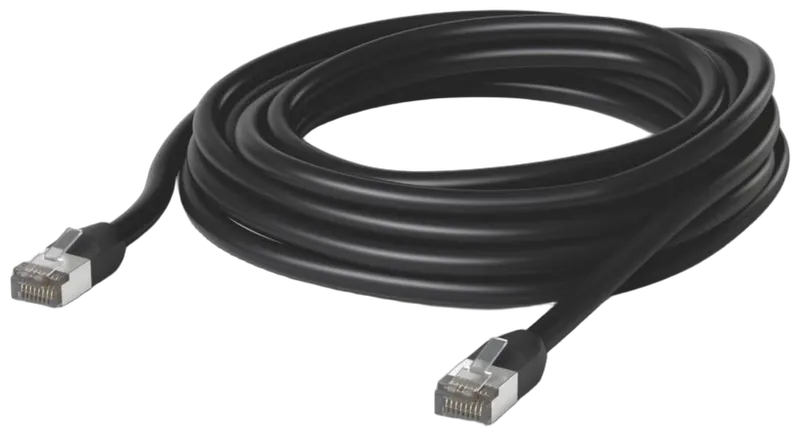

Ubiquiti UniFi Outdoor Patchkabel, robust, für harte Umgebungsbedingungen, schwarz
The UniFi Outdoor Patch Cable is a shielded RJ45 patch cable designed for outdoor use, delivering data rates up to 10G and supporting Power-over-Ethernet up to PoE+++. The 8 m black version is ideal for Ethernet connections in weather-exposed installations where a rugged, UV-resistant cable is required.
- Length
- 8 m
- Color
- Black
- Data rate
- 10G
- PoE type
- Up to PoE+++
Description
Key Benefits at a Glance
- 10G data rate with PoE+++ support for outdoor network components
- Shielded RJ45 connectors with matte boots at both cable ends
- TPE cable jacket with UV resistance certified to ISO4892-2
- F/UTP shielding with stranded copper conductors, 34 AWG
- Bend radius of min. 28 mm for flexible installation
- Flame retardancy rated VW-1 per UL1581
Applications & Environment
This cable is engineered for outdoor use and demanding installation environments. It connects outdoor cameras, access points, and weatherproof network components via Ethernet. The specified operating temperature range is -20 to 60 °C, and installation is possible within the same temperature range. UV resistance is certified to ISO4892-2, and flame retardancy is rated VW-1 per UL1581.
Cable Construction & Materials
Both cable ends feature shielded RJ45 connectors with matte boots. The F/UTP cable construction uses stranded copper conductors with 34 AWG. A thermoplastic elastomer (TPE) jacket with a 3.5 mm outer diameter protects the conductors. The minimum bend radius is 28 mm.
Specifications
| Length | 8 m |
| Color | Black |
| Data rate | 10G |
| PoE type | Up to PoE+++ |
| Connectors | 2× shielded RJ45 with matte boot |
| Shielding type | F/UTP |
| Conductors | Stranded copper, 34 AWG |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket diameter | 3.5 mm |
| Bend radius | Min. 28 mm |
| UV resistance | ISO4892-2 |
| Flame retardancy | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2, ISO/IEC 11801 |
| Installation temperature | -20 to 60 °C |
| Storage temperature | -40 to 85 °C |
| Operating temperature | -20 to 60 °C |
| Application | Outdoor |
| Packaging | Single pack |
