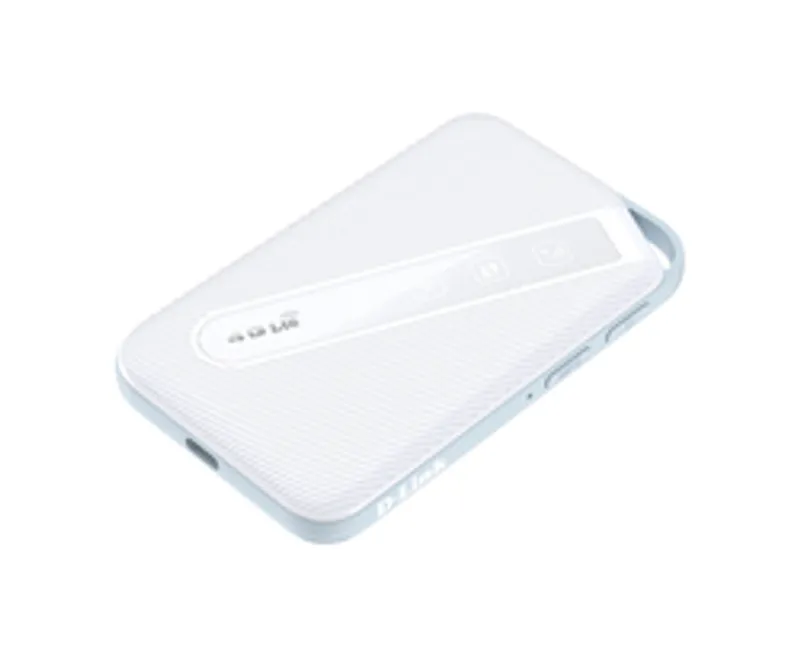

D-Link DWR-932W cellular network device Cellular network modem

Key Benefits at a Glance

• Mobile Hotspot: 4G LTE Cat 4 with up to 150 Mbps download and 50 Mbps upload
• Wi-Fi 6: AX300 with up to 286.8 Mbps in the 2.4 GHz band
• Up to 32 devices: personal hotspot for multiple Wi-Fi clients simultaneously
• Up to 16 hours of battery life: 3000 mAh battery for all-day mobile use
• WPA3 security: latest Wi-Fi encryption protocol supported
• Compact design: 103 x 63 x 13.35 mm at 102 g

Connectivity and Performance

The DWR-932W supports 4G LTE Cat 4, achieving speeds of up to 150 Mbps for downloads and 50 Mbps for uploads. Ten LTE frequency bands (B1, B3, B5, B7, B8, B20, B28, B38, B40, B41) and the WCDMA bands B1 and B8 are available. The device offers Wi-Fi 6 compliant with IEEE 802.11ax/n/g/b in the 2.4 GHz band, with data rates of up to 286.8 Mbps. Mobile IPv6 is supported.

Security and Protection

The hotspot supports the Wi-Fi security protocols WPA, WPA2, and WPA3, as well as WPS for quick connection setup. A firewall with IP and MAC address filtering is integrated. The SAR value is 1.266 W/kg.

Design and Power Supply

The device measures 103 x 63 x 13.35 mm and weighs 102 g. An integrated 3000 mAh battery provides up to 16 hours of operation. Power is supplied via USB 2.0 Type-C at 5 V and 1 A. A nano-SIM card slot (4FF) accommodates the SIM card. Three buttons are available: Power, WPS, and Reset. LEDs indicate the status for signal, WPS, Wi-Fi, and battery. Two internal cellular antennas and one internal Wi-Fi antenna are installed.

Operating Conditions

The DWR-932W is designed for operation at temperatures from -10 to 40 °C. The storage temperature ranges from -40 to 70 °C. Permissible humidity is 10% to 95% without condensation during operation and storage. The device carries the CE marking.
