Ubiquiti NanoStation Loco M5, antenna 13dBi, outdoor client MIMO 5GHz, AirMax Station
The NanoStation Loco M5 is a compact 5 GHz airMAX CPE for outdoor use with an integrated 13 dBi antenna and dual-linear polarization. It is designed for providers and integrators who want to build cost-effective point-to-point or point-to-multipoint client links with low latency and high throughput.
- Processor
- Atheros MIPS 24KC, 400 MHz
- Memory
- 32 MB SDRAM, 8 MB Flash
- Network Interface
- 1x 10/100 MbE RJ45
- Frequency Range (Global)
- 5170–5875 MHz
Description
Key Benefits at a Glance
- Compact Design: small, versatile UV-stabilized polycarbonate outdoor housing
- Integrated 13 dBi Antenna with 45° beamwidth in horizontal, vertical, and elevation planes
- airMAX Technology: MIMO-TDMA protocol eliminates hidden-node collisions and maximizes airtime efficiency
- Intelligent QoS: prioritizes voice and video for smooth streaming
- Passive PoE: 24V PoE adapter included, mast-mounting kit also included
- NDAA-compliant and certified to FCC, IC, CE, and RoHS standards
airMAX Technology and Performance
The NanoStation Loco M5 uses Ubiquiti’s airMAX protocol, a time-division multiple-access method that assigns predefined time slots to each client, managed by an intelligent access point controller. This time-slot approach eliminates hidden-node collisions and significantly boosts airtime efficiency. Compared to conventional outdoor Wi-Fi systems, it delivers noticeable improvements in latency, throughput, and scalability.
An integrated QoS system prioritizes voice and video data for uninterrupted streaming. The platform’s high capacity and scalability enable the deployment of carrier-class wireless links over long distances. With a transmit power of 23 dBm and cross-polarization isolation of at least 20 dB, the device operates reliably even in challenging RF environments.
Use Cases
As a client in an airMAX PtMP network, the NanoStation Loco M5 serves as a high-performance subscriber unit, receiving data from a central access point. For point-to-point links, two devices can be deployed as a direct wireless bridge. Plug-and-play integration with existing airMAX installations simplifies deployment.
Design and Power Supply

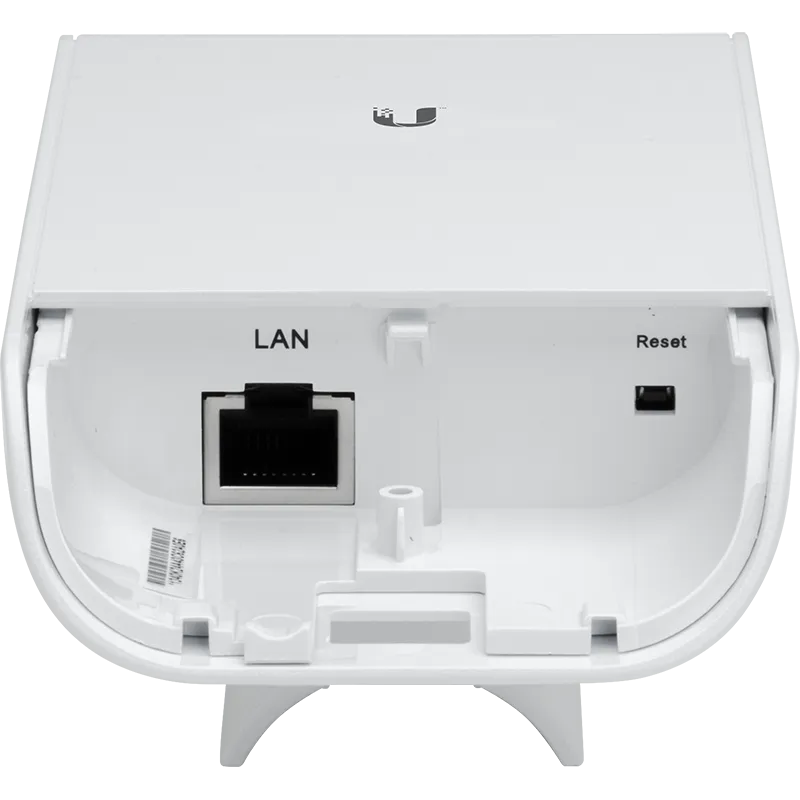

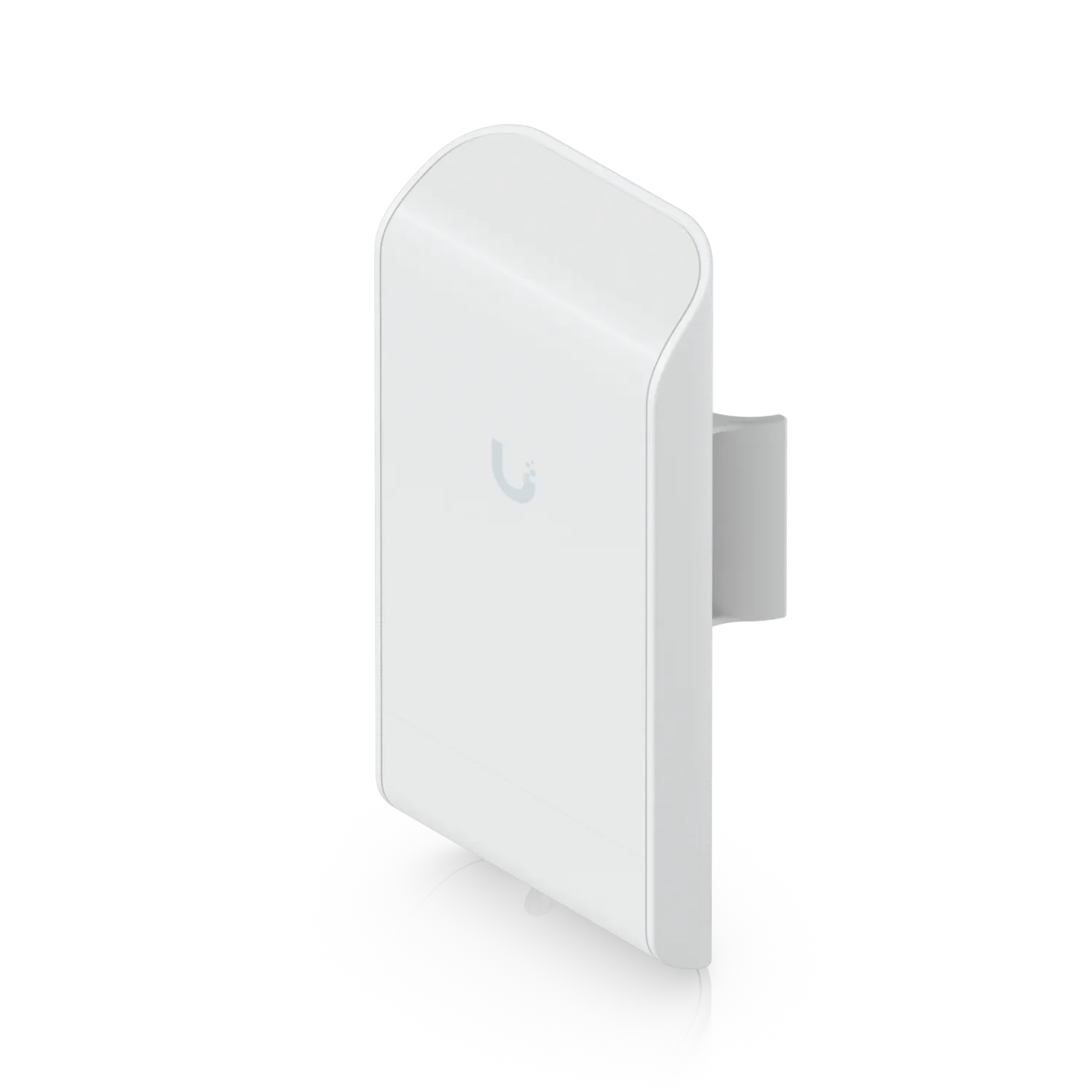

The housing is made of UV-stabilized polycarbonate for outdoor use and includes a mast-mounting bracket. With dimensions of 161 x 31 x 80 mm and a weight of 180 g, the device can be discreetly mounted on masts and brackets. Power is supplied via passive PoE using a 24V/0.5A adapter, which is included. The supported voltage range is 22 to 27 V DC with a maximum power consumption of 5.5 W. A 10/100 MbE RJ45 port is provided for network connectivity.
Certifications and Environmental Conditions
The NanoStation Loco M5 is designed for global operation in the 5170 to 5875 MHz frequency range. In the USA, it supports the 5725 to 5850 MHz and 5250 to 5850 MHz bands with DFS. The device is certified to FCC Part 15.247, IC RS210, and CE standards, and is RoHS-compliant. Certification to ETSI300-019-1.4 covers shock and vibration resistance. It operates in temperatures from -30 to 75 °C and humidity levels of 5 to 95%. The device is NDAA-compliant.
Specifications
| Processor | Atheros MIPS 24KC, 400 MHz |
| Memory | 32 MB SDRAM, 8 MB Flash |
| Network Interface | 1x 10/100 MbE RJ45 |
| Frequency Range (Global) | 5170–5875 MHz |
| Frequency Range (USA) | 5725–5850 MHz |
| Frequency Range (USA DFS) | 5250–5850 MHz |
| Antenna Gain | 13 dBi |
| Polarization | Dual-Linear |
| Beamwidth | 45° (H-Pol) / 45° (V-Pol) / 45° (Elevation) |
| Cross-Pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Transmit Power | 23 dBm |
| Power Supply | Passive PoE 2-pair (4, 5+; 7, 8 Return) |
| PoE Adapter | 24V, 0.5A (included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 5.5 W |
| Housing Material | UV-stabilized outdoor polycarbonate |
| Mounting | Mast bracket (included) |
| Dimensions | 161 x 31 x 80 mm (6.3 x 1.2 x 3.2") |
| Weight | 180 g (6.4 oz) |
| Operating Temperature | -30 to 75 °C (-22 to 167 °F) |
| Operating Humidity | 5 to 95% non-condensing |
| Shock & Vibration | ETSI300-019-1.4 |
| Certifications | FCC Part 15.247, IC RS210, CE, RoHS |
| NDAA-Compliant | Yes |
| Warranty | 12 months |
